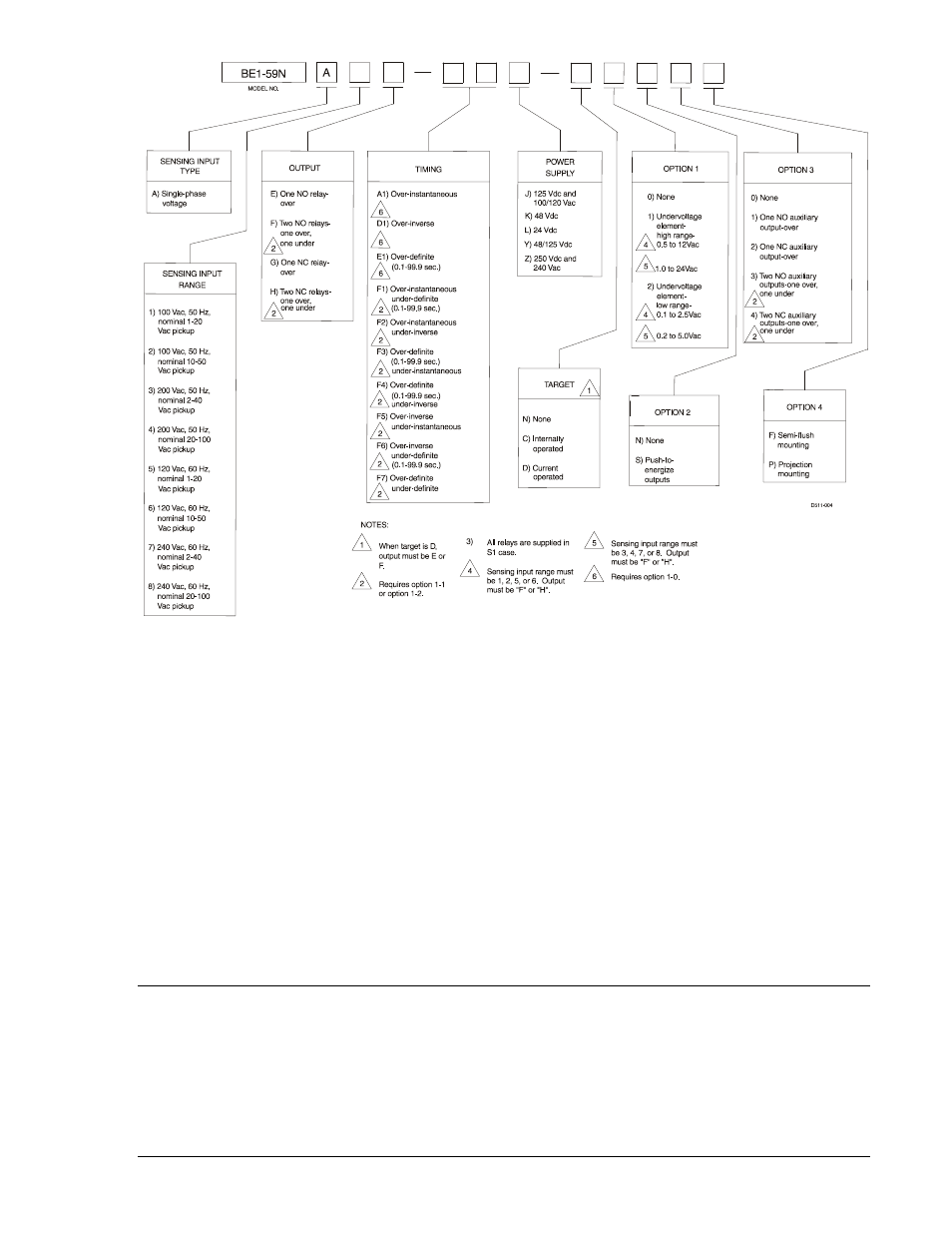

Figure 1-2. BE1-59N Style Identification Chart
Style Number Example
If a BE1-59N relay has a style number of
A5F–F6J–D2S3F, the relay has the following features:
A -------- Single-phase voltage sensing input
5 -------- 120 Vac, 60 Hz nominal sensing voltage input with 1 to 20 Vac pickup range
F -------- Two output relays with normally open (NO) contacts (one overvoltage and one undervoltage)
F6 ------ Inverse time delay for overvoltage and definite time delay for undervoltage
J -------- Relay control power is 125 Vdc or 120 Vac, nominal
D -------- Two current operated target indicators (one per function)
2 -------- Undervoltage element range 0.1 to 2.5 Vac (low range with sensing input 5)
S -------- Push-to-energize outputs
3 -------- Two normally-open auxiliary output relays (one per function)
F -------- Semi-flush mounting case
SPECIFICATIONS
BE1-59N electrical and physical specifications are listed in the following paragraphs.
Voltage Sensing Inputs
Maximum continuous rating: 360 Vac for 100/120 Vac input, 480 Vac for 200/240 Vac input, with a
maximum burden of 2 VA for each input.
9171400990 Rev K BE1-59N General Information 1-3
