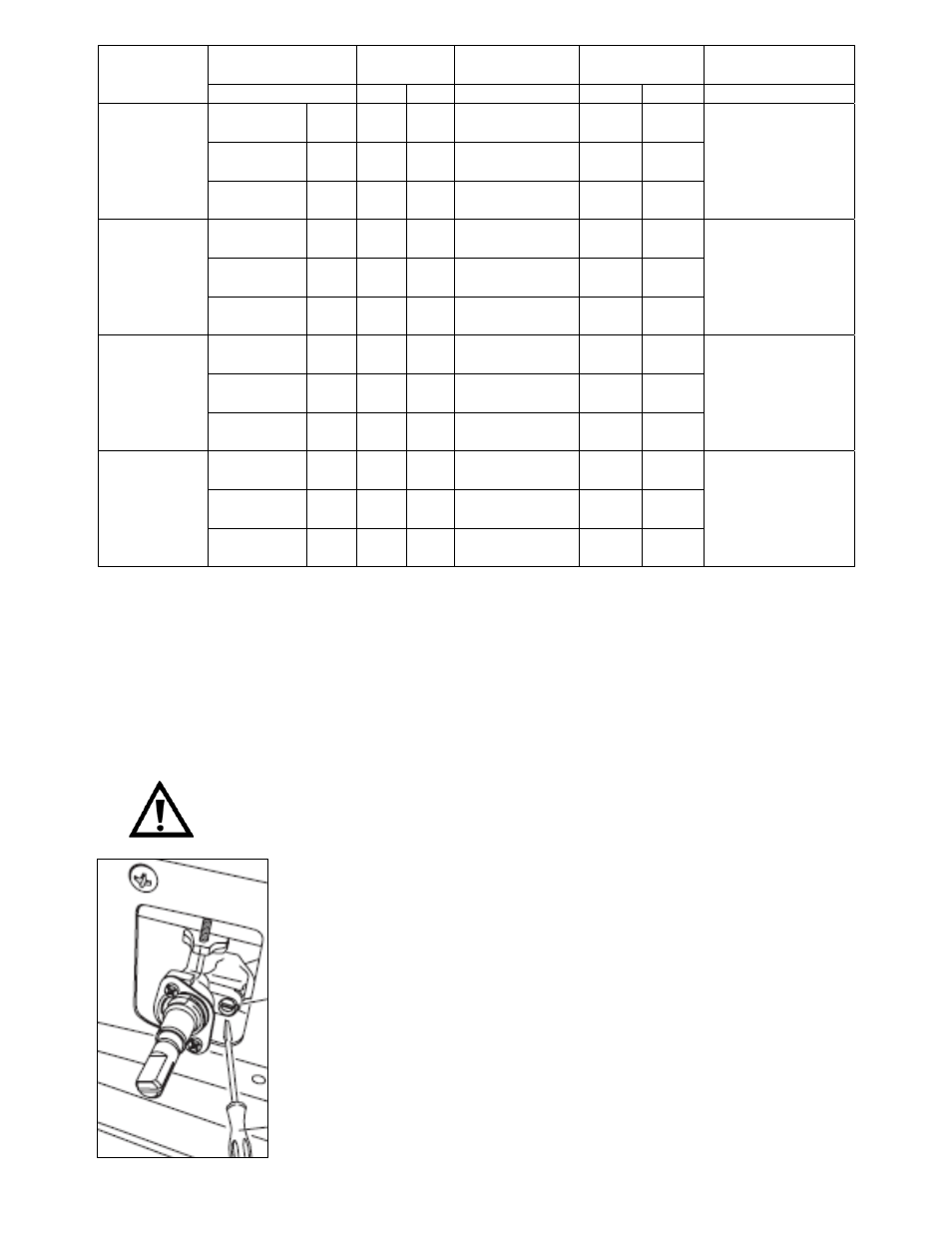

Operating
pressure gas
Rate Diameter
injector
Heat Input
(W)
By-Pass Burner
mbar g/h L/h 1/100mm Min Max 1/100mm
G30 -
Butane 28 -
30 218 N/A 88 800 3000
G31 -
Propane
37 214 N/A 88 800 3000
Rapid
G20 -
Natural 20 N/A 286 117 - Y 800 3000
44
G30 -
Butane 28 -
30 131 N/A 68 600 1800
G31 -
pane Pro
37 129 N/A 68 600 1800
Semi -
rapid
G20 -
Natural 20 N/A 171 98 - Z 600 1800
34
G30 -
Butane
28 -
30
73 N/A 51 400 1000
G31 -
Propane 37 71 N/A 51 400 1000
Auxiliary
G20 -
Natural
20 N/A 95 75 - X 400 1000
28
G30 -
Butane 28 -
30 276 N/A 98 1400 3800
G31 -
Propane
37 272 N/A 98 1400 3800
Triple
Crown G20 -
Natural 20 N/A 362 135 - K 1400 3800
62
o
Reassemble all the burners carefully; in particular you should
make sure that the flame spreader is correctly placed on the
burner.
IMPORTANT: After changing the injectors YOU MUST follow the
minimum flow adjustment section below.
Minimum flow adjustment for hob gas taps.
All work must be carried out by a GASSAFE registered
engineer.
39
o
Light the burner and set the knob at the minimum
position.
o
Remove the knob from the tap. The adjustment
screw is beside the valve body.
o
Place a small bladed screwdriver in the centre of the
tap shaft.
o
Unscrew the adjusting screw, in order to increase
the gas flow or tighten the adjusting screw to
decrease the gas flow.
