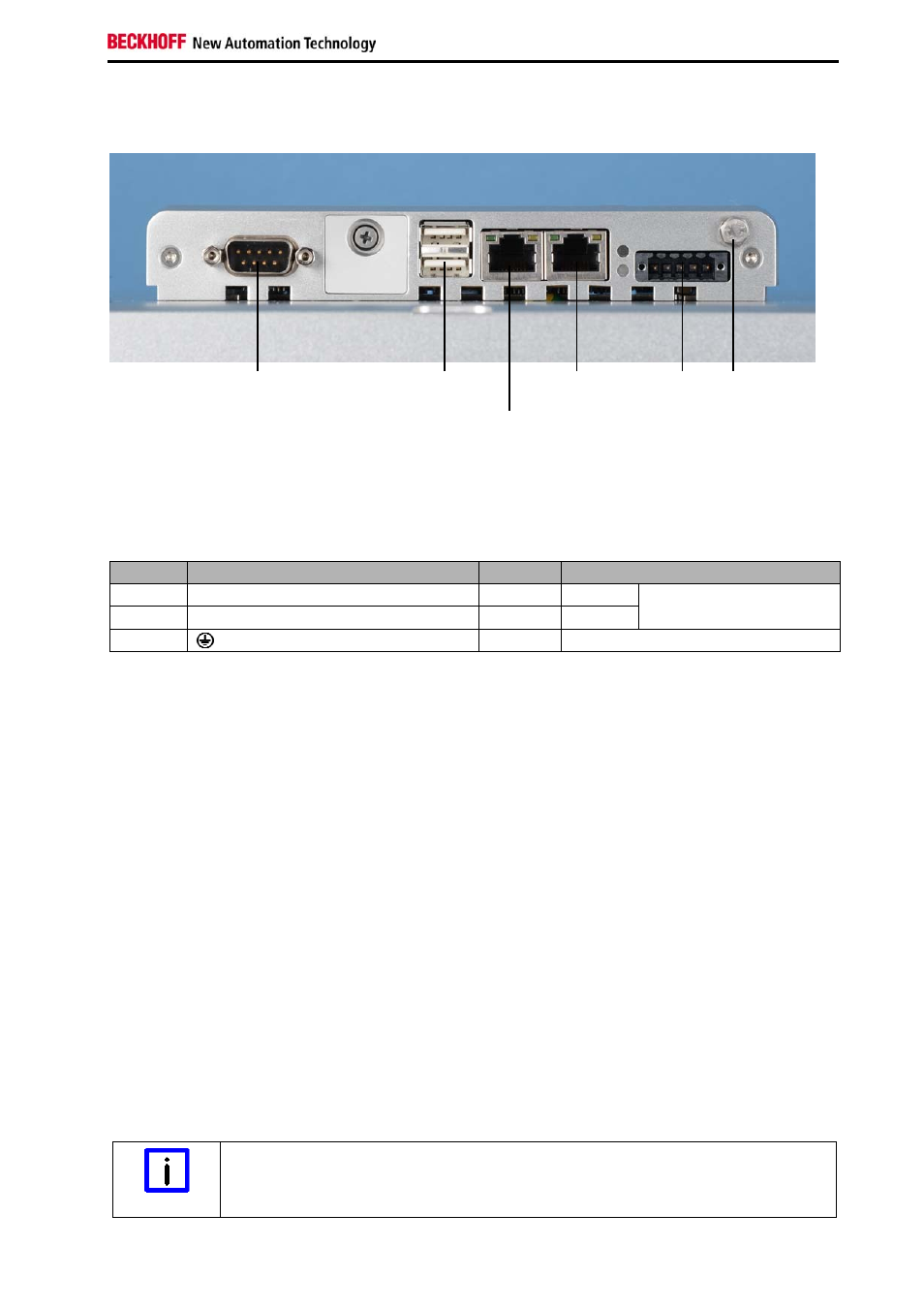

2.4 Interfaces
X102
LAN1
X104, X105
USB
Ground
X101
Power
X107
COM1
X103
EtherCAT
2.4.1 Power Supply (X101)
The power supply for the Panel PC is established via the socket (X101). The power supply connector is
included in delivery.
Pin
Signal
Pin
Signal
1 NC
4 GND
2 NC
5 + 24 V
DC
Power Supply
3
2.4.2 Network connection LAN1 (X 102)
The RJ-45 connector (X102) allows the PC to be connected to a 10/100BASE-T Local Area Network
(LAN).
2.4.3 EtherCAT connection (X 103)
The RJ-45 connector (X103) allows the PC to be connected to an EtherCAT Network.
2.4.4 USB output (X 104, X 105)
The two USB interfaces (X104, X105, connector type A) are used for connecting peripheral devices with
USB connection. USB2.0 standard is supported.
2.4.5 Serial interface COM1 (X107)
The Panel PC has one serial interface COM1 (X107) using the type RS232, which is brought to a 9 pin
SUB-D plug connector.
2.4.6 Ground connection (Ground)
The Panel PC is grounded via the screw connection (Ground).
Malfunction possible with missing ground connection
Note
A proper ground connection of the device is absolutely necessary for the correct
function of the touchscreen.
