10 Technical data

Drive Technology

52

Version: 2.4

AM8000 and AM8500

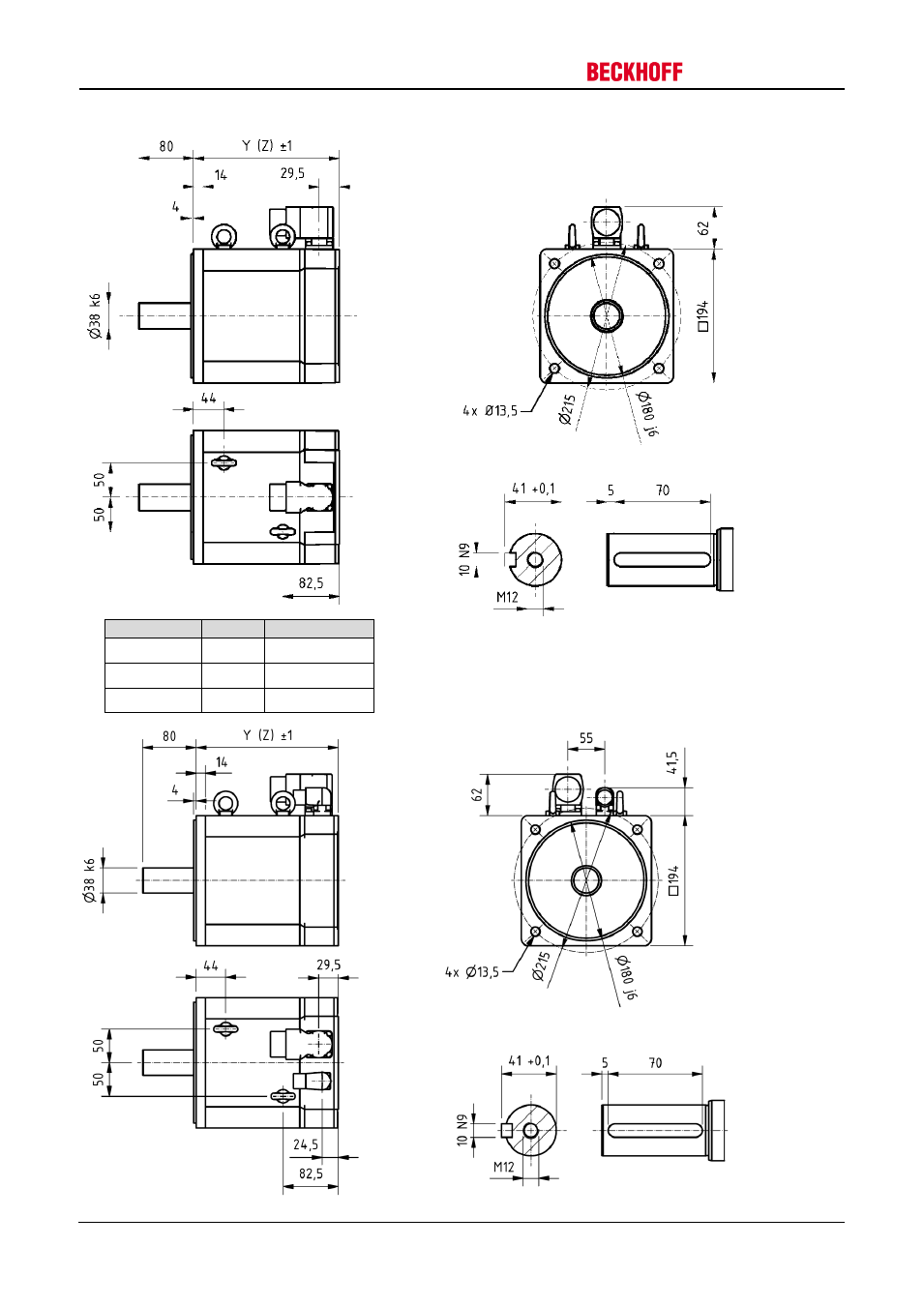

10.7.1 Dimensional drawing AM807x

Optional: Feather key

Motor type

Y

Z (brake)

AM8071

212

284,5

AM8072

269

341,5

AM8073

326

398,5

Optional: Feather key
