Brinly BS-26 BH Cu. Ft. Tow-Behind - Manual (Page 16)

L-1884-C
16.

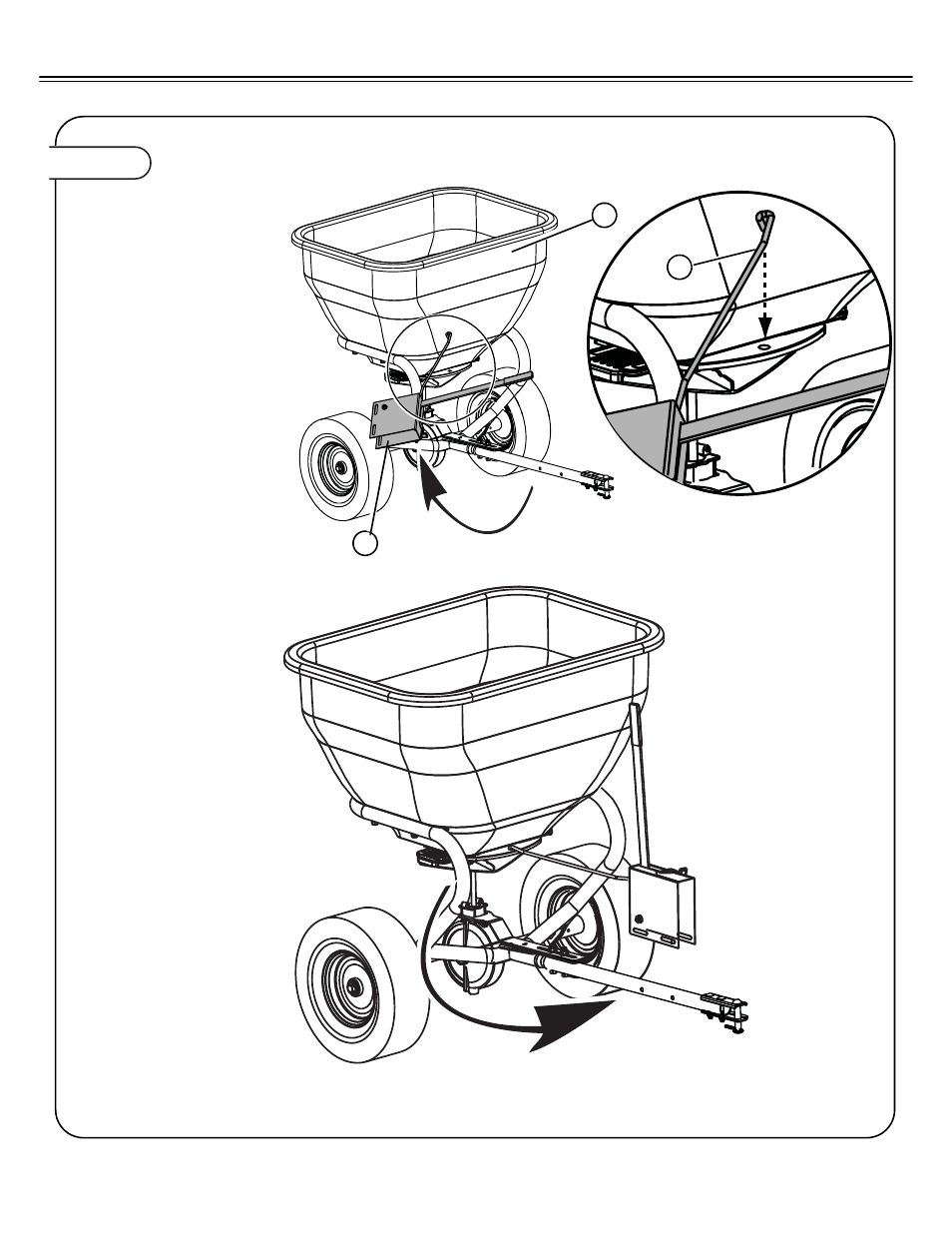

Figure 10a. ATTACH GAGE PLATE TO SPREADER
10a. Rotate assembled Gage
Plate (11) approximately 90°
clockwise and insert formed
end of the of the Link Rod
(12) in to the hole provide on
the Hopper (10) control
plate, as shown.
10b. Rotate Gage Plate counter-
clockwise until the handle is
oriented upward and the bot-
tom of the Gage Plate is over
the Tow Tube (28).
11
12
10
ASSEMBLY
