Setting Color Mode (Optional)

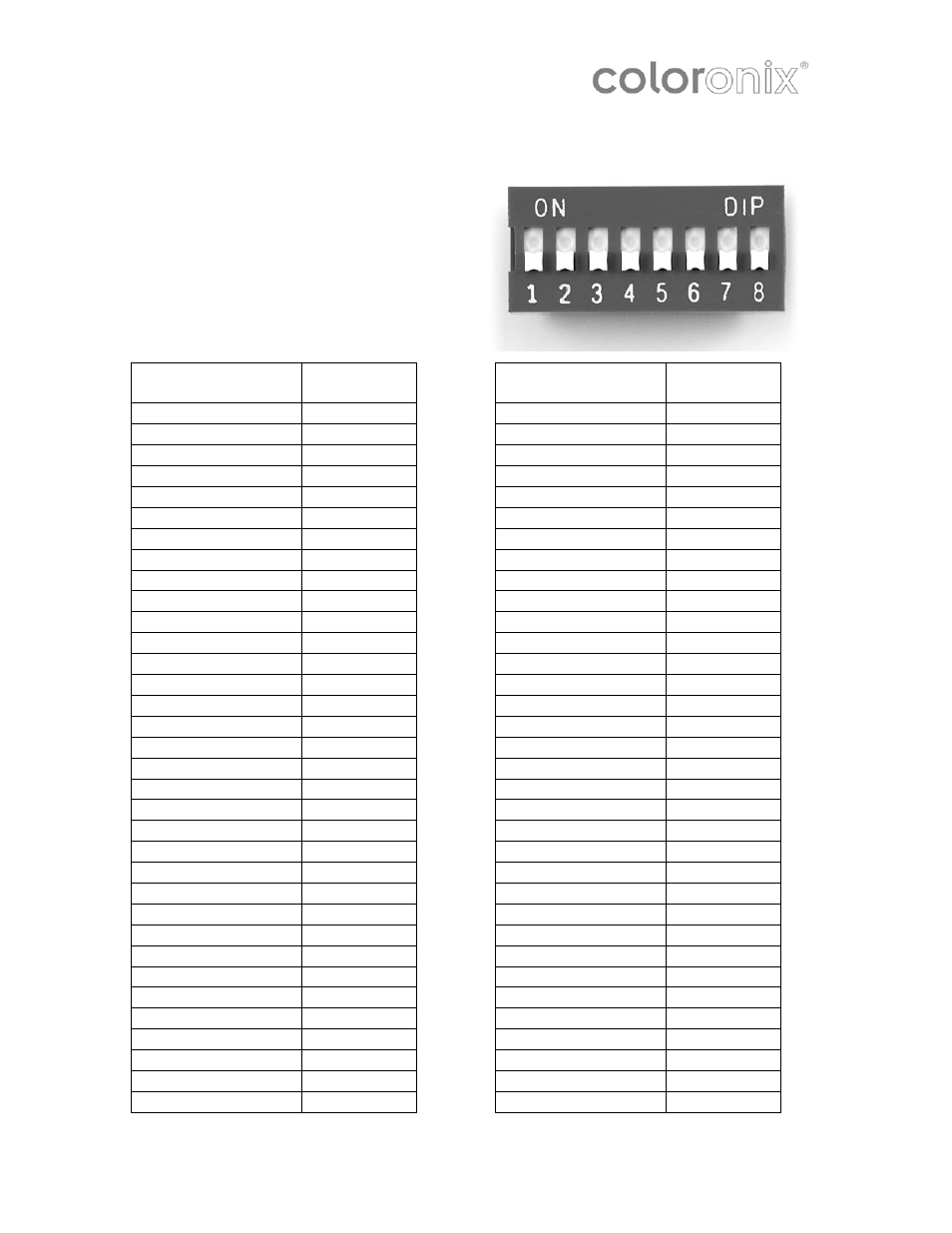

Dip Switch Inside Housing
For installations requiring DMX control, set
the personalized DMX address using the
address table (Below) for address dip
switch position settings. The Dip Switch
Board can be found inside the housing
accessible below the ceiling. See figure.
Note: Up to 128 unique 4-channel
addresses can be set per DMX universe.
Dip Switch Setting
DMX
Channels
1 1-4
1,3 5-8
1,4 9-12
1,3,4 13-16
1,5 17-20
1,3,5 21-24
1,4,5 25-28
1,3,4,5 29-32
1,6 33-36
1,3,6 37-40
1,4,6 41-44
1,3,4,6 45-48
1,5,6 49-52
1,3,5,6 53-56
1,4,5,6 57-60
1,3,4,5,6 61-64
1,7 65-68
1,3,7 69-72
1,4,7 73-76
1,3,4,7 77-80
1,5,7 81-84
1,3,5,7 85-88
1,4,5,7 89-92
1,3,4,5,7 93-96
1,6,7 97-100
1,3,6,7 101-104
1,4,6,7 105-108
1,3,4,6,7 109-112
1,5,6,7 113-116
1,3,5,6,7 117-120
1,4,5,6,7 121-124
1,3,4,5,6,7 125-128
1,8 129-132
1,3,8 133-136
Dip Switch Setting DMX
Channels
1,4,8 137-140
1,3,4,8 141-144
1,5,8 145-148
1,3,5,8 149-152
1,4,5,8 153-156
1,3,4,5,8 157-160
1,6,8 161-164
1,3,6,8 165-168
1,4,6,8 169-172
1,3,4,6,8 173-176
1,5,6,8 177-180
1,3,5,6,8 181-184
1,4,5,6,8 185-188
1,3,4,5,6,8 189-192
1,7,8 193-196
1,3,7,8 197-200
1,4,7,8 201-204
1,3,4,7,8 205-208
1,5,7,8 209-212
1,3,5,7,8 213-216
1,4,5,7,8 217-220
1,3,4,5,7,8 221-224
1,6,7,8 225-228
1,3,6,7,8 229-232
1,4,6,7,8 233-236
1,3,4,6,7,8 237-240
1,5,6,7,8 241-244
1,3,5,6,7,8 245-248
1,4,5,6,7,8 249-252
1,3,4,5,6,7,8 253-256
1,9 257-260
1,3,9 261-264
1,4,9 265-268
1,3,4,9 269-272
