The second generation Digital CAT5 transmitter User 's Manual 3
Chapter 2 Digital uCAT5 Transmitter

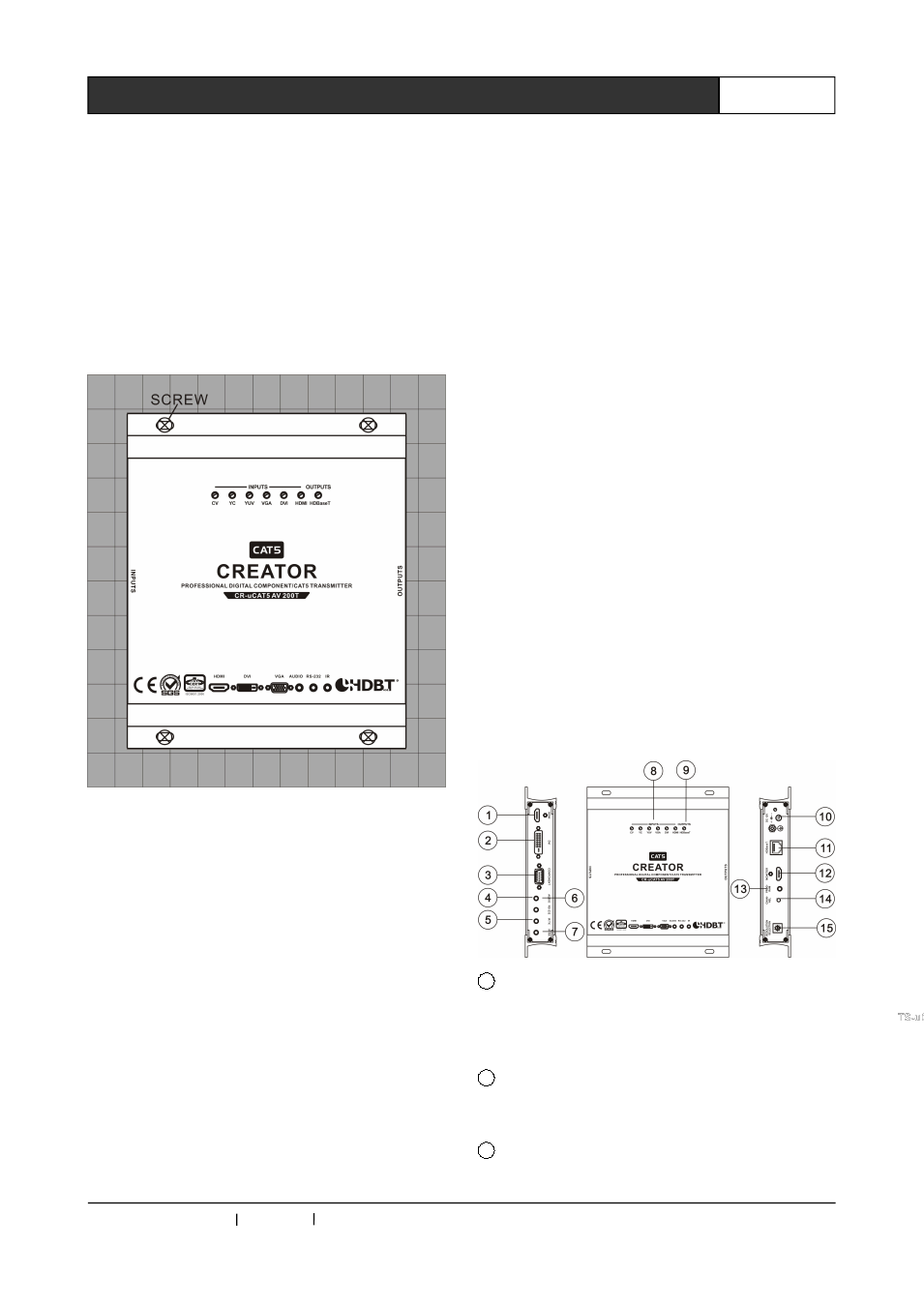

2.1 Controller Installation
Digital video twisted pair transmitter controller has
small size, light weight, and can be easily
installed in any place, for example, as the
following figure shows, the transmitter is mounted
on the wall, can be fixed with 4PCS screws.
2.2 CR-uCAT5 AV 200T Digital
Mixed Twisted-Pair Transmitter
AV mixed twisted-pair transmitter through a single
CAT5e/6 shielding cable transmits video signals
up to 100m, and can transfer two-way digital
signals like IR, serial, so as to meet the needs of
different types of video interfaces and control
equipments
2.2.1 Function Characteristics
 Supports HDM11.3a, compatible with
HDCPl.3;
 Support DVI-D input, compatible with DVI1.0;
 Supports Video, S-video, YPbPr (YCbCr),
VGA (RGBHV) input;
 Support analog stereo input, output, HDMI
digital audio input, output;
 Support two-way infrared, RS-232
transmission;
 Through serial command or panel code to
change the output resolution;
 Through serial command or panel button to
select a video source;
 Support video scaling, noise reduction,
de-interlacing, adjustment of brightness and
contrast, resolution can be up-scaled to
1920x1080P@60;
 Support simultaneous transmission of video,
audio, IR, and RS-232. The maximum
transmission distance of CAT5e/6 shielding
cable is up to 100M.
2.2.2 Panel Features
CR-uCAT5 AV 200T:
1 HDMI——HDMI audio and video input
HDMI interface is used to connect the input
from HDMI interface, HD video source such as
PC, Blu-ray DVD, HD Player, etc.
2 DVI——DVI video signal input
DVI-D interface is used to connect the DVI
HD video signal source.
3 COMPONENT——Hybrid video input port is
used for VGA video input. Through the conversion
