Cybex Plate Loaded 16120 Smith Press Owner’s Manual
13

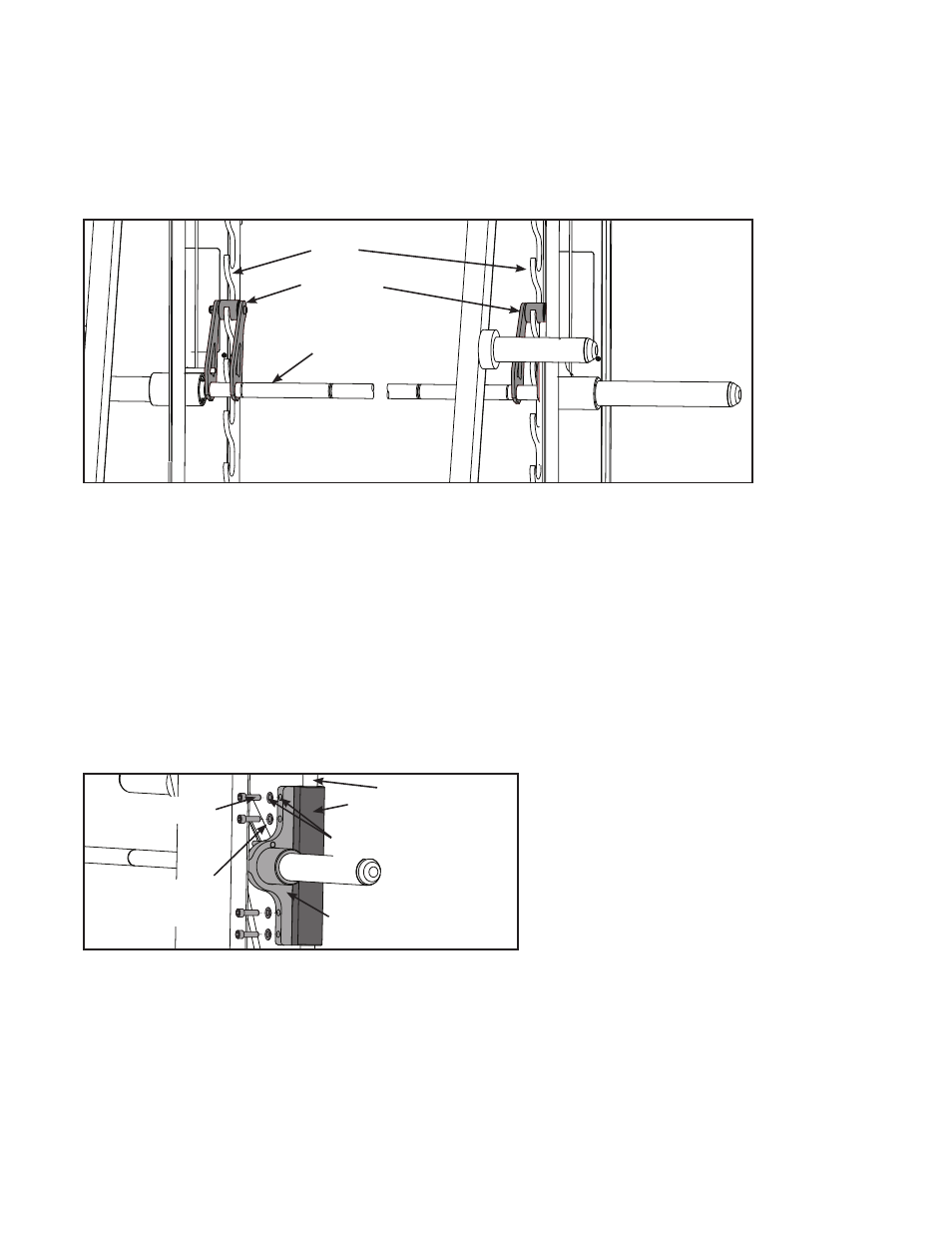

5. Install weight bar assembly.
• Carefully place weight bar on frame and secure in place by latching bar catch on hooks.
• Verify each bar catch is hooked properly on the hook.
Hook
Weight Bar
Bar Catch
• Slide bearing housing up (located at bottom of guide shaft) and align holes with weight bar
bracket.
• Locate four Socket Head Cap Screws (SHCS), four washers and loctite from shipping package.
• Place a small drop of loctite on the four SHCS and in threaded holes of weight bar bracket.
• Place washer over SHCS.
• Using a 5/16” Allen wrench tighten the four SHCS securing the weight bar bracket to the bearing
housing.
• Repeat step 5 for opposite side.
Bearing Housing
Weight Bar Bracket
SHCS (Qty 4)
Loctite
Washers
(Qty 4)
Guide Shaft
