Section 6: DataMaster 100 Controller
These sections describe the DataMaster 100 controller including the insert and the operation to set the
time and date on the display.
6.1 DataMaster 100 Overview
Reference Drawing:
System Riser Diagram, Control Combinations ...................................... Drawing A-164988
The DataMaster 100 Series controller, shown in Figure 19, is a hand-held controller designed
to operate Daktronics LED DataTime and DataMaster
displays. See Section 1.1 for the list of displays the DM-100
can control. The console’s liquid crystal display (LCD) guides
the user through the operation of the system.
Time and temperature displays use a junction box at the base
of the display or an indoor wire system. Refer to Section 3 for
information and possible connection types.
Note: You must be connected to the display in order to
modify the time, temperature, hold time, etc. The following
sections will explain this process in greater detail.
6.2 DataMaster Insert
Reference Drawing:
Insert, LL-2551 Price/T&T Display ......................................................... Drawing A-164998
The DataMaster 100 controller uses a keypad insert to
program time and temperature information for the
displays.
Figure 20 illustrates the DM-100 insert used to control the
displays. For more details on the insert, refer to the
DataMaster 100 insert drawing, A-164998. If an insert is
lost or damaged, a copy of the insert drawing can be used
until a replacement is ordered.
To start the controller and use the insert, read the section
carefully to fully understand the operating instructions.
Note: Depending on the version of the DM-100 controller
and the revision on the display, some of the following
items may not be used on the display, or will not be
shown on the DM-100 controller.

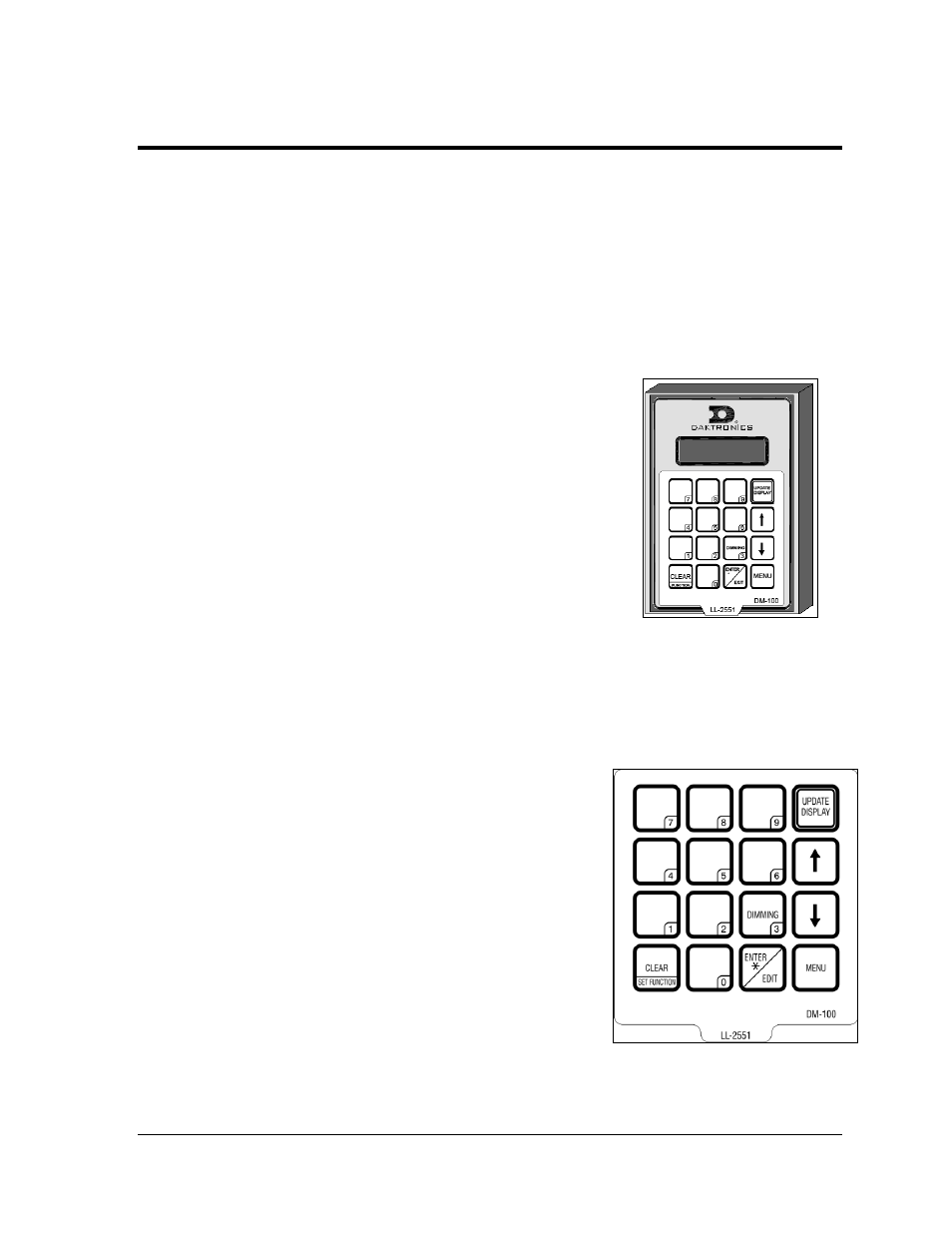

Figure 19: DataMaster 100
Figure 20: DataMaster 100 Insert
LL-2551
DM-100 Controller 29
