Maintenance &
Troubleshooting
4-2
4.2 Accessing the Interior of the Display
1. Using a #2 Philips screwdriver, turn the screws securing the LED module panel to the cabinet
of the display one-quarter turn counter-clockwise (refer to Figure 21 and Figure 22). The
screws are designed to remain in the LED module flanges, but release from the cabinet.
2. Gently pull the LED module panel from the
body of the display. It will come forward as a
complete unit. Note: Use caution when
removing the LED module panel. The ribbon
cable connecting the LEDs to the inside of the
display will still be connected. Refer to Figure
23 and Figure 24.

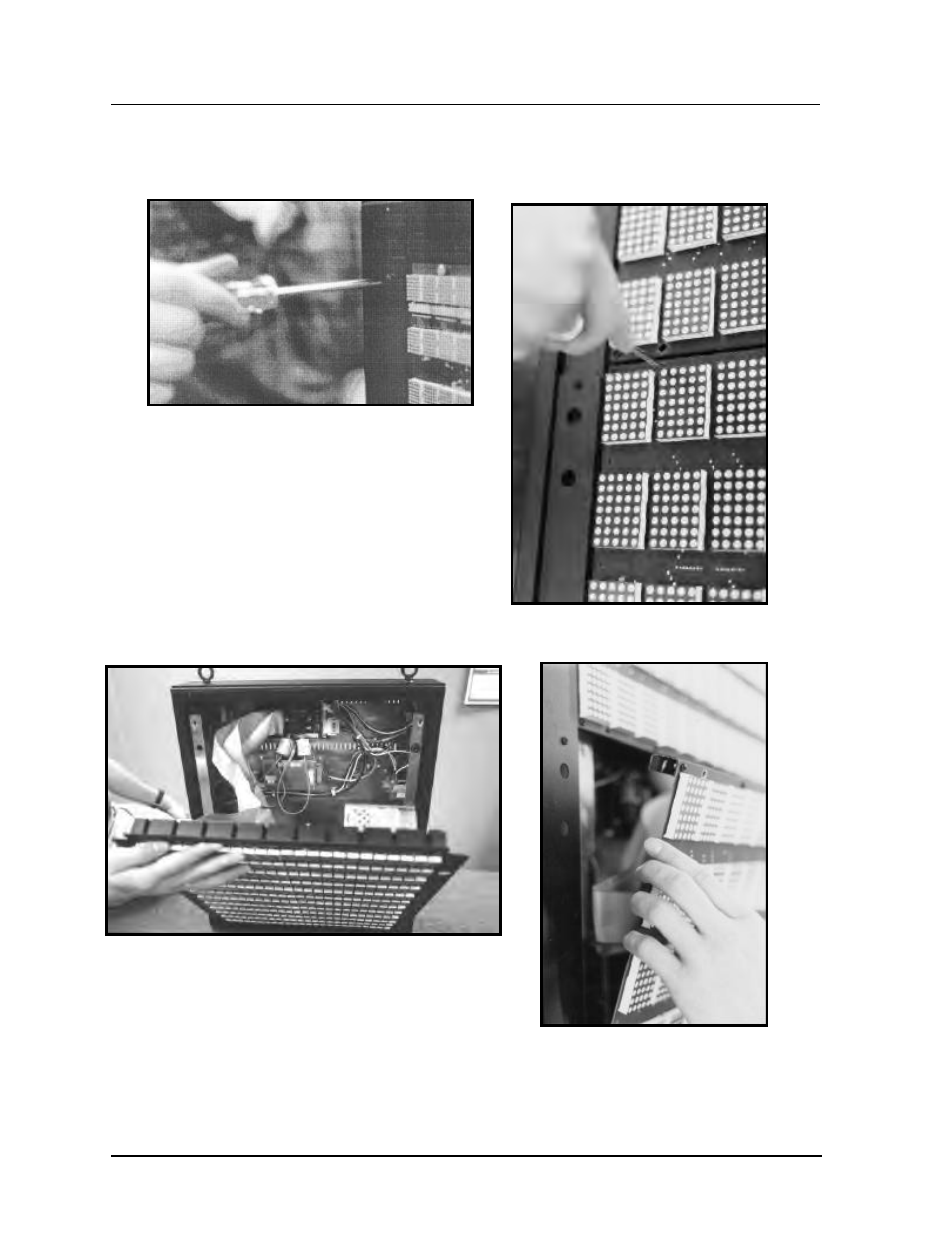

Figure 21: Loosening of 1/4-Turn Fasteners
(0.7")
Figure 22: Loosening of 1/4-Turn
Fasteners (1.2" & 2.1")
Figure 23: Removing LED Module Panel (0.7")
Figure 24: Removing LED
Module Panel (1.2" & 2.1")
