16 Daktronics Matrix Displays with Colorado Timing Systems
6. Back on the Input Properties screen (Figure
31) click ITF.
The Select Input Template window (Figure
32) will open. Click the drop down button
in the upper right corner and click
browse.
7. Navigate to
“C:\ProgramFiles\Daktronics\Common
\Input\Templates” and select
HygenericStartResults.itf. If this file does
not show up on the list it will need to be copied into the directory. Click OK.
8. From the Input Properties screen (Figure 31) click Select Displays. Select the display that
the data will be displayed on. Click the
arrow to move it into the column labeled
Authorized for RTD Input then click Close.
9. If there is a second Hy-Tek computer,
repeat Steps 1-7 but be sure to assign it to
Input 4.
Display RTD Inputs
Use M2Config to connect to the sign and verify
the ports are set correctly.
Port 1
Type:
Direct
Baud Rate: (19,200 for Galaxy displays)
(115,200 for Galaxy Pro displays)
Number: 1
Protocol:
Venus 1500
Port 2
Type:
TCP/IP
Number: 3001
Protocol:
Venus 1500
Port 3
Type:
UDP/IP
Number: 3002
Protocol:
Daktronics RTD
Port 4
Type:
Direct
Number: 2
Protocol:
Daktronics RTD
Baud Rate: 19,200

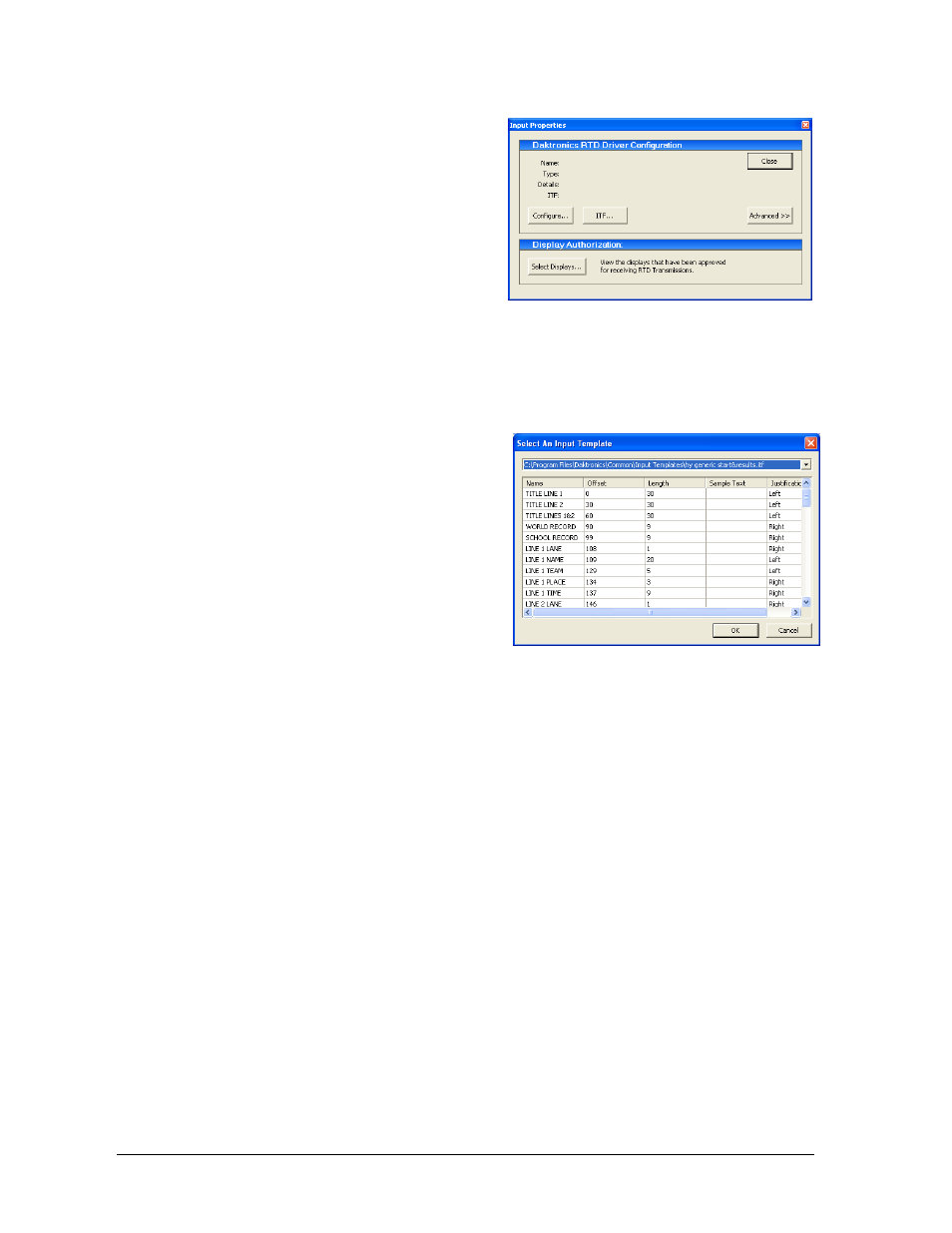

Figure 31: Input Properties
