Installing Devices
2. Push the Mini PCIe card down until the clips at each end of the latch lock
into position. You will hear a distinctive “click”, indicating the card is correctly
locked into position.
Clip Clip

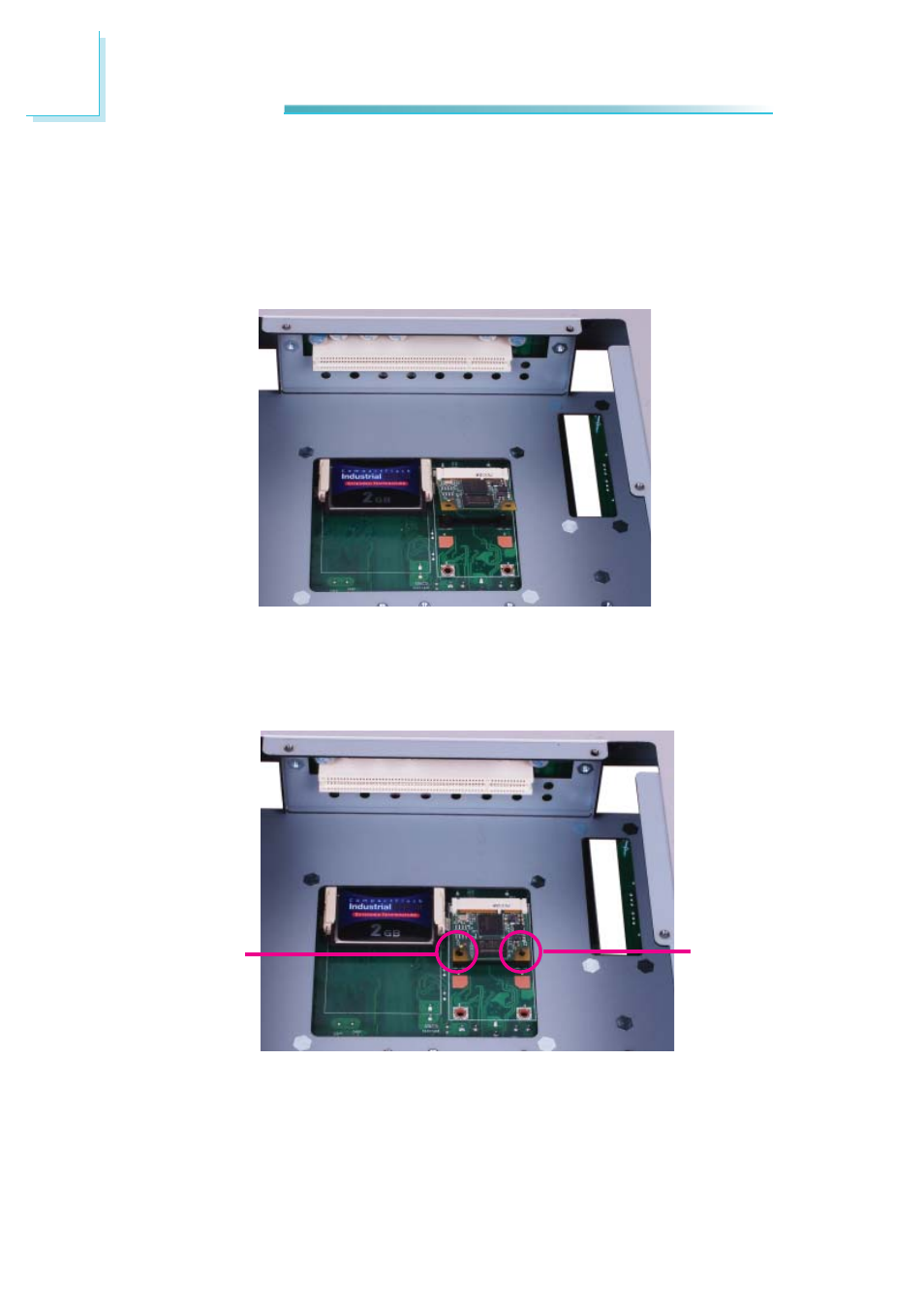

1. Grasping the Mini PCIe card by its edges, align the card into the slot at an
approximately 30 degrees angle. Apply firm even pressure to each end of the
card until it slips down into the slot. The contact fingers on the edge of the
card will almost completely disappear inside the slot.
Installing the Mini PCIe Card
