www.dfi .com Chapter 2 Concept
8
Chapter 2
Chapter 2 - Concept
COM Express Module Standards

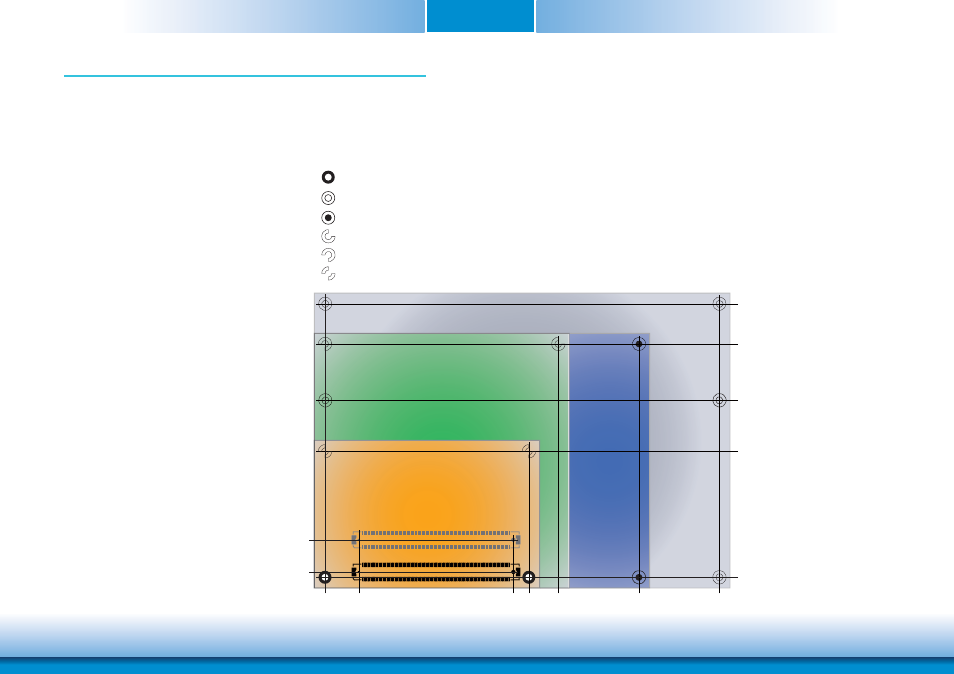

The figure below shows the dimensions of the different types of COM Express modules.
HM920-QM87/HM86 is a COM Express Basic module. The dimension is 95mm x 125mm.
106.00
91.00
70.00
51.00
4.00
18.00
6.00
0.00
16.50 4.00 0.00
Extended
Basic Compact
Mini
74.20 80.00 91.00 121.00 151.00
Common for all Form Factors
Extended only
Basic only
Compact only
Compact and Basic only
Mini only
