AKH2A - atomac ball valve
Ahaus GmbH
von-Braun-Straße 19a
D-48683 Ahaus
Postfach 1162 D-48661 Ahaus
Telefon: +49(0) 2561-686-100
Fax: +49(0) 2561-686-200
Register: 13
Page: 11
Date: 12.1995
Revision: 08.2009
Technical Manual

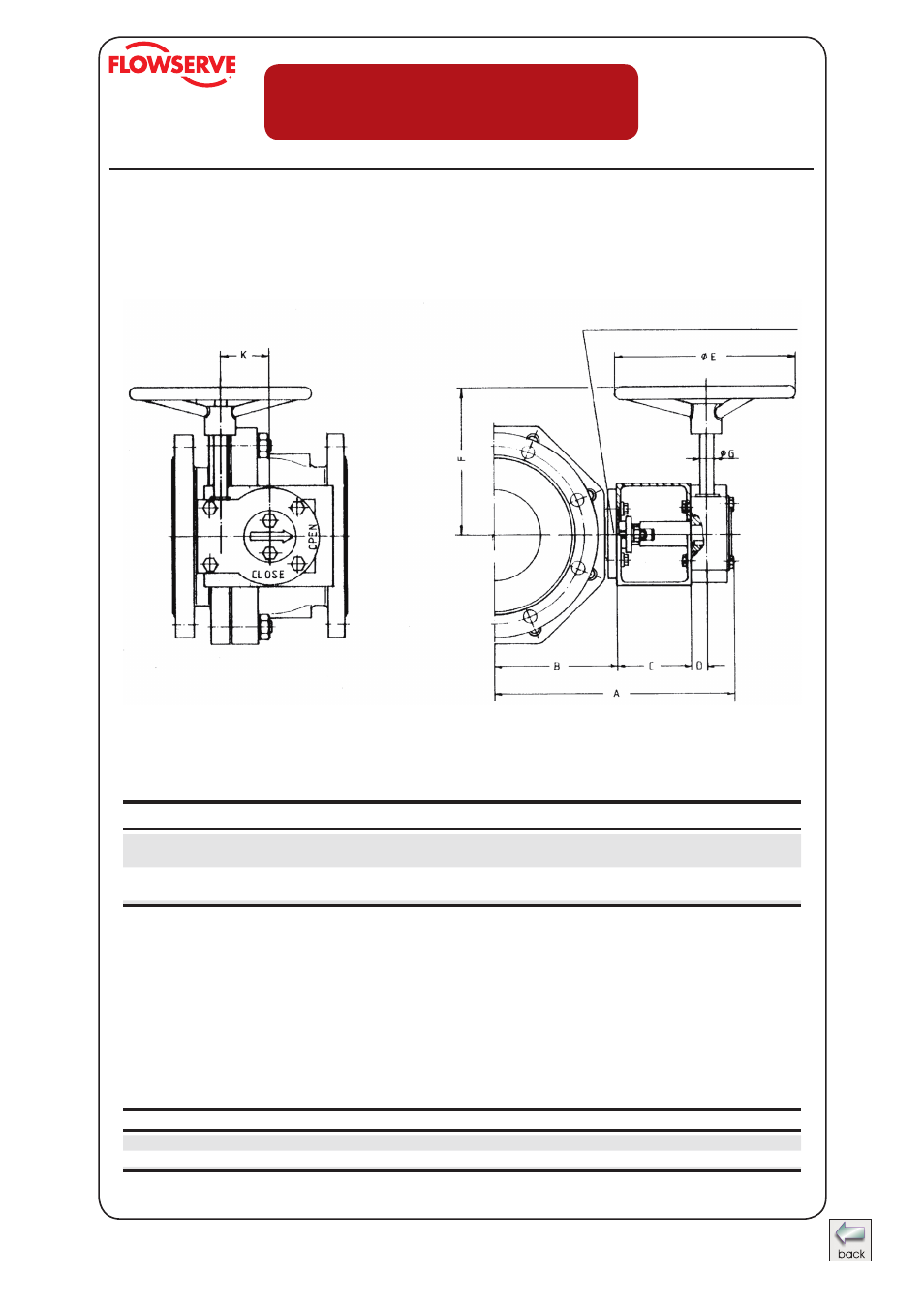

Technical Data - AKH2A with manual actuator
Dimensions acc. to DIN EN ISO 5211
* with standard hand wheel
Typ gear transmission ratio touque in Nm touque in lbs weight in kg
Q 400 S 44 : 1 400 3540 3,87
Q 800 S 40 : 1 800 7081 7,68
ANSI TYP* A B C D ØE F ØG K
4“
mm
Q 400 S
293 138 80 34 200 213 12 52,5
inch 11,53 5,43 3,15 1,34 7,87 8,39 0,47 2,07
6“
mm
Q 800 S
362 191 80 42,5 300 283 15 68,8
inch 14,23 7,52 3,15 1,67 11,81 11,14 0,59 2,71
