18510-P
5
Flow Control Division
Worcester Controls
1
1
Body
2
1
Nameplate (Not Shown)
3
1
Stem
4
1
Thrust bearing
5
1
Ball
6
2
Seat
7
1
Body Seal
8
1
End Plug
9
1 or 2
Stop Pin (Manual Valve Only)
10
1 or 2
Stem Seal (See Section D.5.b.)
11
1
Follower
12
2 or 4
Belleville Washer (See Section D.5.c.)
13
2
Retaining Nut
14
1
Lockwasher
15
1
Handle (Manual Valve Only)
16
1
Self-Locking Stem Nut (Automated Valve Only)
17
1
Stem Seal Protector (See Section D.5.b)
18
1
Thrust bearing Protector (See Section D.5.b)
19
1
Stop (1" Manual Valve Only) (Not Shown)
1
/
2
" - 1
1
/
2
" 82/83
One-Piece Valves

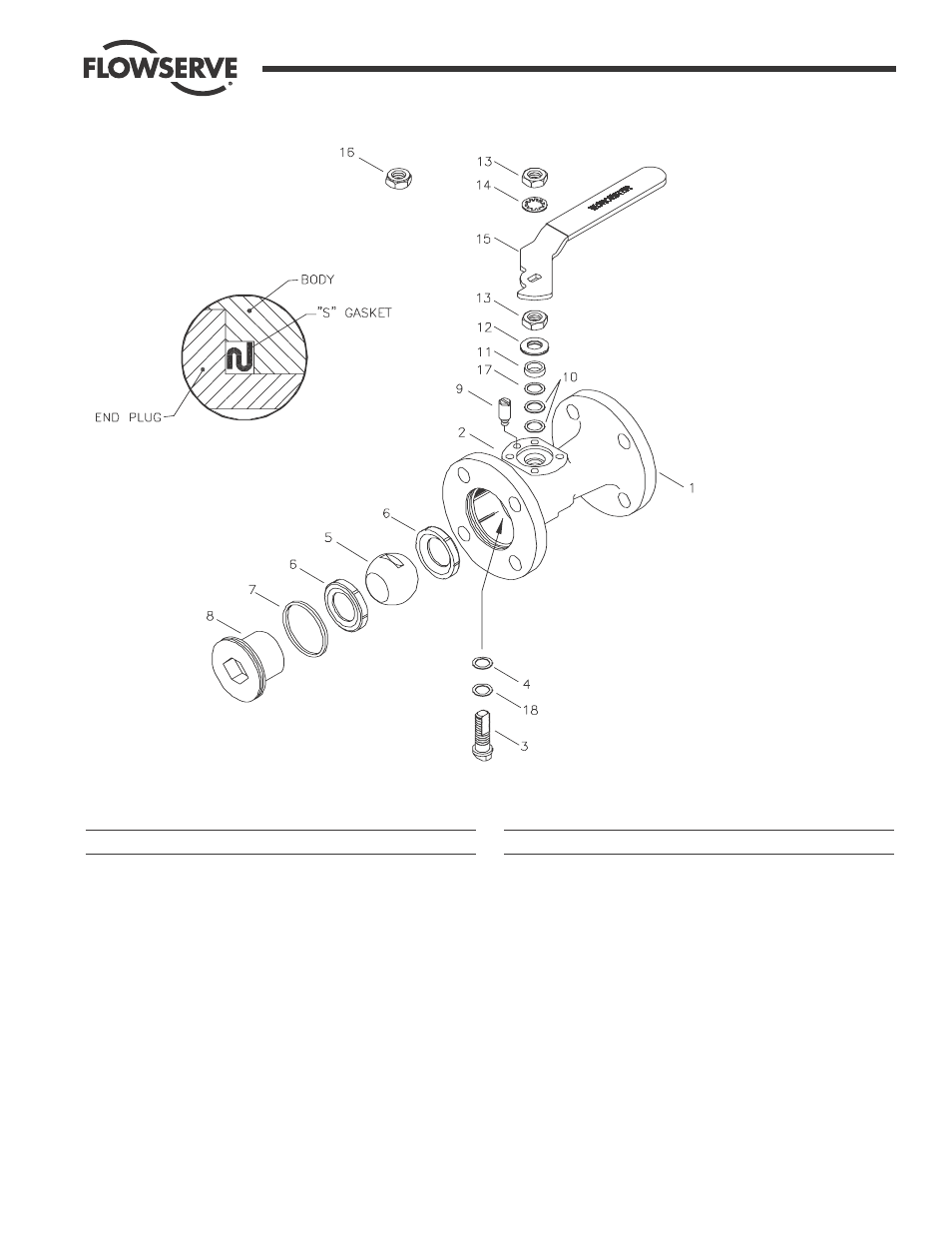

ITEM
QTY
DESCRIPTION
ITEM
QTY
DESCRIPTION
View A-A
1
1
/
2
" size valve shown
