7
Chapter 2 Installation Instructions
CPU
This motherboard Supports socket AM2 for AMD ® Athlon TM 64 FX / Athlon 64 X2
Dual-Core / Athlon TM 64/ Sempron processors.
For the detailed CPU support list on this motherboard, please visit the
website:
http://www.foxconnchannel.com
1. Unlock the socket by pressing the le-
ver sideways, then lift it up to a 90 o
angle.
2. Align the cut edge to the gap in the base
of the socket. Carefully insert the CPU
into the socket until it fits in place.
3. W hen the CPU is in place, press it
firmly on the socket while you push
down the socket lever to secure the
CPU. The lever clicks on the side tab
to indicate that it is locked.

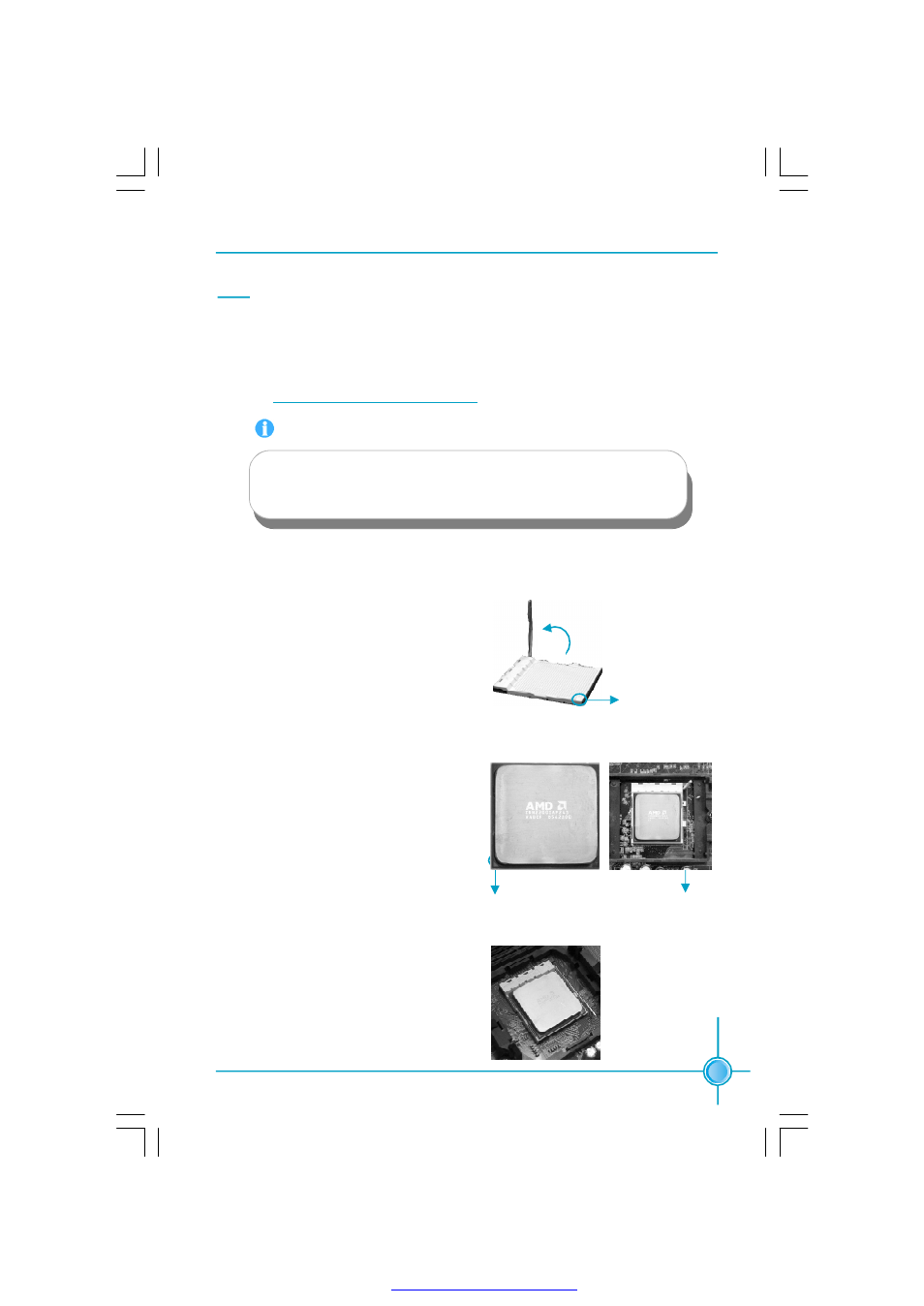

Installation of CPU
Follow these steps to install the CPU.
Push down the socket
lever to secure the CPU.
Cut edge
90 o
Gap in the base
Attention:
The CPU pins must be properly aligned with the holes in the
socket, otherwise the CPU may be damaged.
