ML - 800 37
FACILITY MANAGERS PANEL
The Facility Managers Panel (FMP) is a Windows based program that performs all the same functions as the Map Panel
and adds additional capability. The most important of which is the ability to mix nonadjacent rooms. The display of
the FMP is a bit mapped image of what the Map Panel looks (or would look) like. It can take the place of the Map Panel and
can perform the functions of the wallplates.
When the FMP starts it requests status from the ACU. The ACU responds with group information if any. The ACU will
update the group information if a Map Panel is present and has defined a group. The FMP uses the group information to
update the Windows display to reflect those rooms that have been selected into groups.
FMP Installation
To install the FMP a cable is run from the Room Combining System ACU to the manager's office. This cable is two twisted
pairs with an overall shield and they connect to the CPU module at the ACU. In the managers office the cable terminates in
the FM-INT unit which in turn plugs into com port 1 or 2. If the audio option was ordered then another cable, specifically a
standard audio line (one twisted pair with an overall shield) would also be run. It connects from the left-most terminals on
the Monitor Relay Card and terminates in the speaker enclosure mounted in the manager's office.

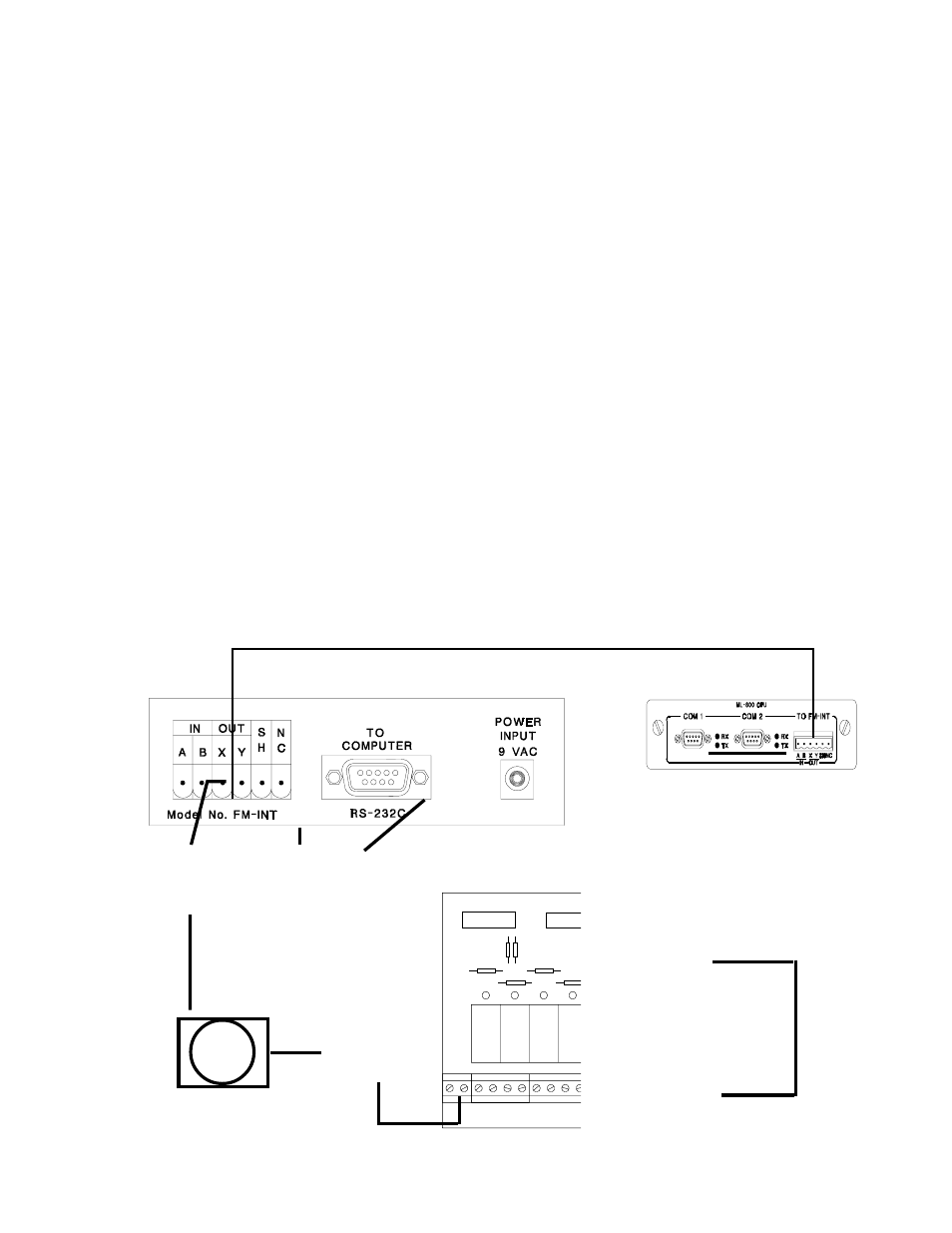

Hookup Diagram Overview (refer next page for detailed hookup)
partial view of the
CPU module (rear
of ML-800 rack)
self contained speaker
with volume control
(supplied)
These two items are
located in the
managers office to any Windows
compatible computer
audio line
connects here
partial view of the
Relay card (116-
MNRL)
Partial view
of small
micro board
mounted on
TRAC-
BRAC with
Relay card
These ar
e inter
connected
