2015 HDM GUIDE
SETUP INSTRUCTIONS
Gamut USA
3540 Charter Park Dr
San Jose, CA 95136
[email protected]
www.gamutusa.com

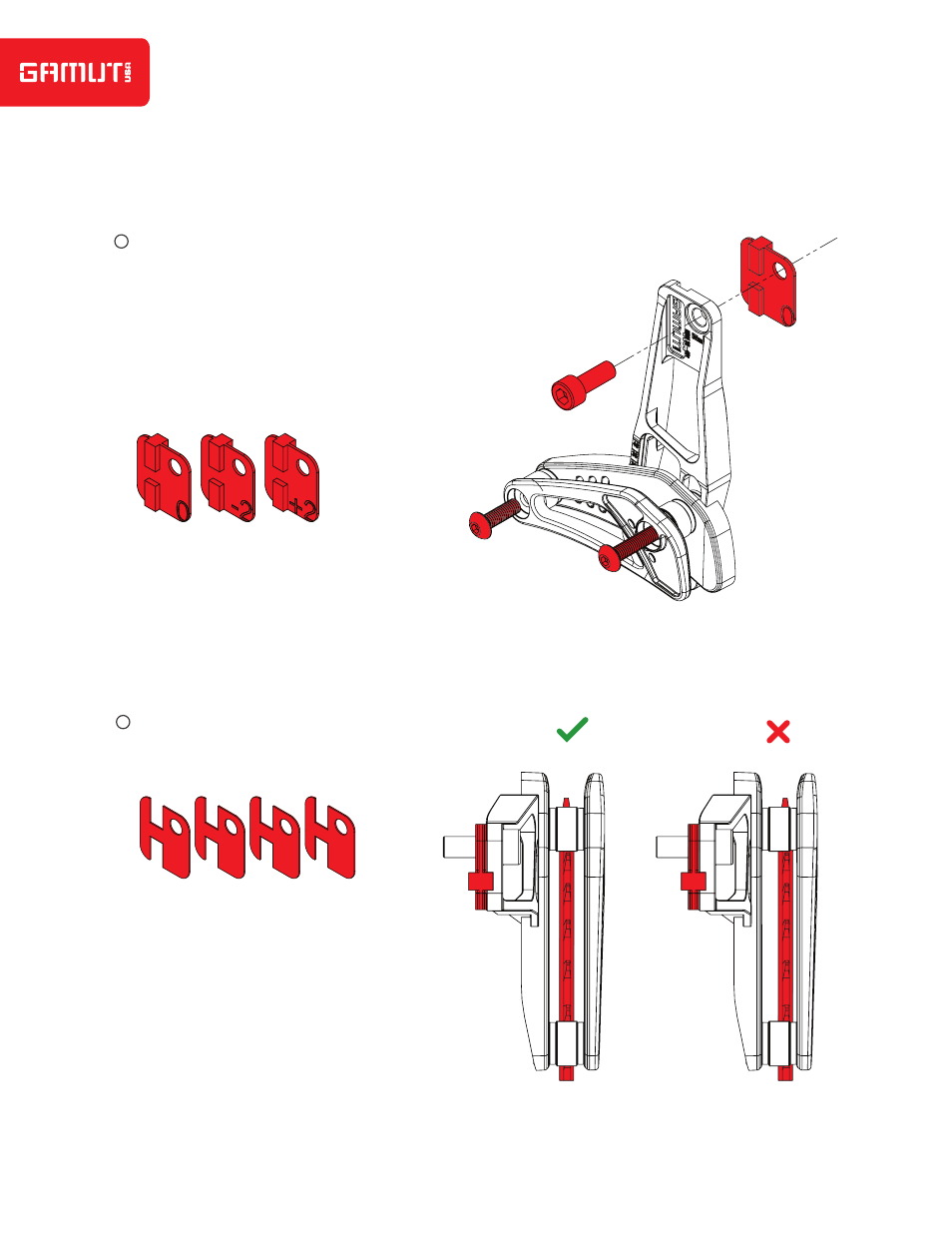

1 INSTALL BACKPLATE ONTO FRAME USING
T-SPACER AND CORRECT LENGTH BOLT TO
CENTER TOP GUIDE OVER CHAINRING.
USE THE CORRECT T-SPACER TO ADJUST THE
GUIDE FORWARD OR BACKWARD TO CENTER
THE GUIDE OVER THE CHAINRING.
NOTE: YOU MUST USE A T-SPACER TO ENSURE
THE GUIDE IS LOCKED IN POSITION AND DOES
NOT ROTATE.
2 ADD OR REMOVE OPTIONAL SHIMS IN FRONT OF OR
BEHIND THE T-SPACER TO ADJUST THE GUIDE
INWARD OR OUTWARD TO CENTER THE GUIDE OVER
THE CENTER OF THE CHAINRING.
