Harken 2625 57 mm Ratchamatic Block - Manual (Page 3)

Right-angle reeving dead-end on becket
For larger, printable diagrams, please see: www.harken.com.
Reeving Multi-Purchase Systems
Harken equipment is designed for minimal maintenance. However, some upkeep is required to give
the best service and comply with the Harken limited warranty.
Keep your equipment clean and free-running by frequently flushing with fresh water. Periodically
clean with mild detergent and water solution. Spin sheaves to distribute soap solution evenly.
Flush with fresh water.
Important: Exposure to some teak cleaners and other caustic solutions can result in discoloration
of part and is not covered under the Harken warranty.
Warranty
For additional safety, maintenance, and warranty information see www.harken.com or the Harken ®
catalog.
Maintenance
Inspect Block and Shackle Before You Sail
Frequently inspect shackles and shackle posts for signs of corrosion, cracks, or elongation. When
replacing shackles, use the correct Harken parts to maintain the proper strength. Replace line as
necessary, taking into consideration the maximum size recommendation.
WARNING! Failure to inspect and replace damaged metal parts and/or worn or frayed line
can cause block or system to break suddenly causing an accident, damage to your vessel,
personal injury or death. See www.harken.com for additional safety information.
M1004/1-17-11
Part No.
HFS889
1 2

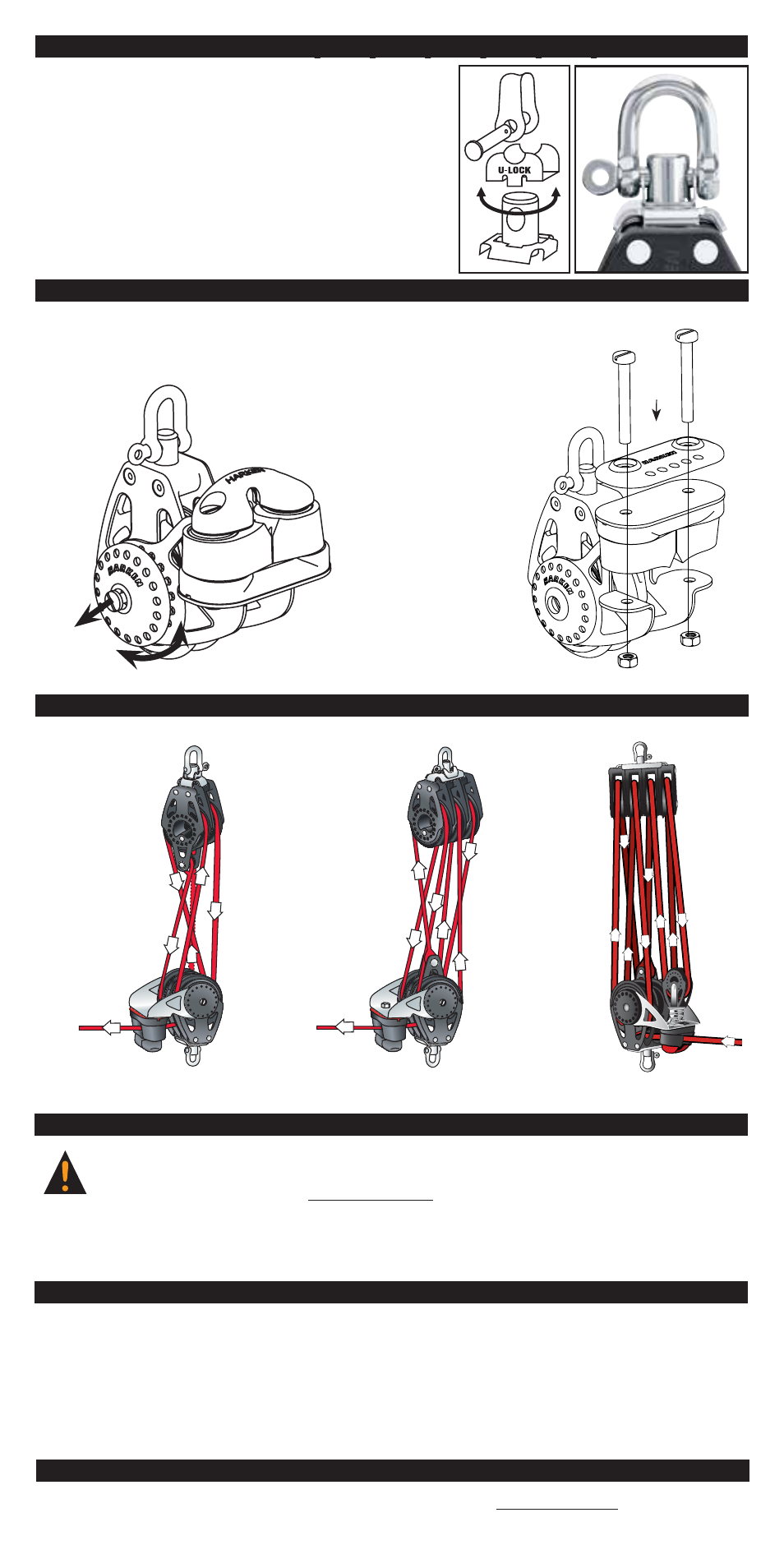

Adjust Cam Angle (Single/Triple) Reverse Cam Cleat (Single Only)
1. Remove screws from cam.
2. Assemble as shown. Note: use
plastic plate on cam bottom.
3. Tighten screws. Do not
overtighten screws. Cam
pawls should snap shut smartly.
1. Loosen cam arm locking plate screw and
pull outward to disengage.
2. Rotate cam arm to desired position.
3. Press locking plate in and tighten screw.
Avoid binding
sheave, do
not over-
tighten
screw.
3-Way U-Lock—2629 / 2630 / 2632 / 2634 / 2685 / 2686 / 2687
The 3-Way U-Lock on doubles and triples allows a change
of headpost direction from front to side or allows the
block to swivel. To change headpost direction, remove
shackle, turn post, install shackle. Remove U-Lock to
allow block to swivel.
5:1 Right-Angle Reeving
Dead-end on Becket
1
2
3
4
5
5
1
2
3
4
5
6
6:1 Right-Angle Reeving
Dead-end on cam
6:1 Right-Angle Reeving
Dead-end on becket
6
2
3
4
5
6
6
1
1
2
3
5
6
7
8
4 5:1 6:1 8:1
