Hoefer HE99X - Manual (Page 9)

Submarine Electrophoresis Unit
Function and description
The Hoefer ® HE99X unit electrophoretically
separates nucleic acid fragments in a submarine
gel. The gel is first cast in a gel caster, which is
available in three lengths. Once the gel sets, the
running tray is transferred to the platform of
the electrophoresis unit and the gel is submerged
under running buffer.
•
p1

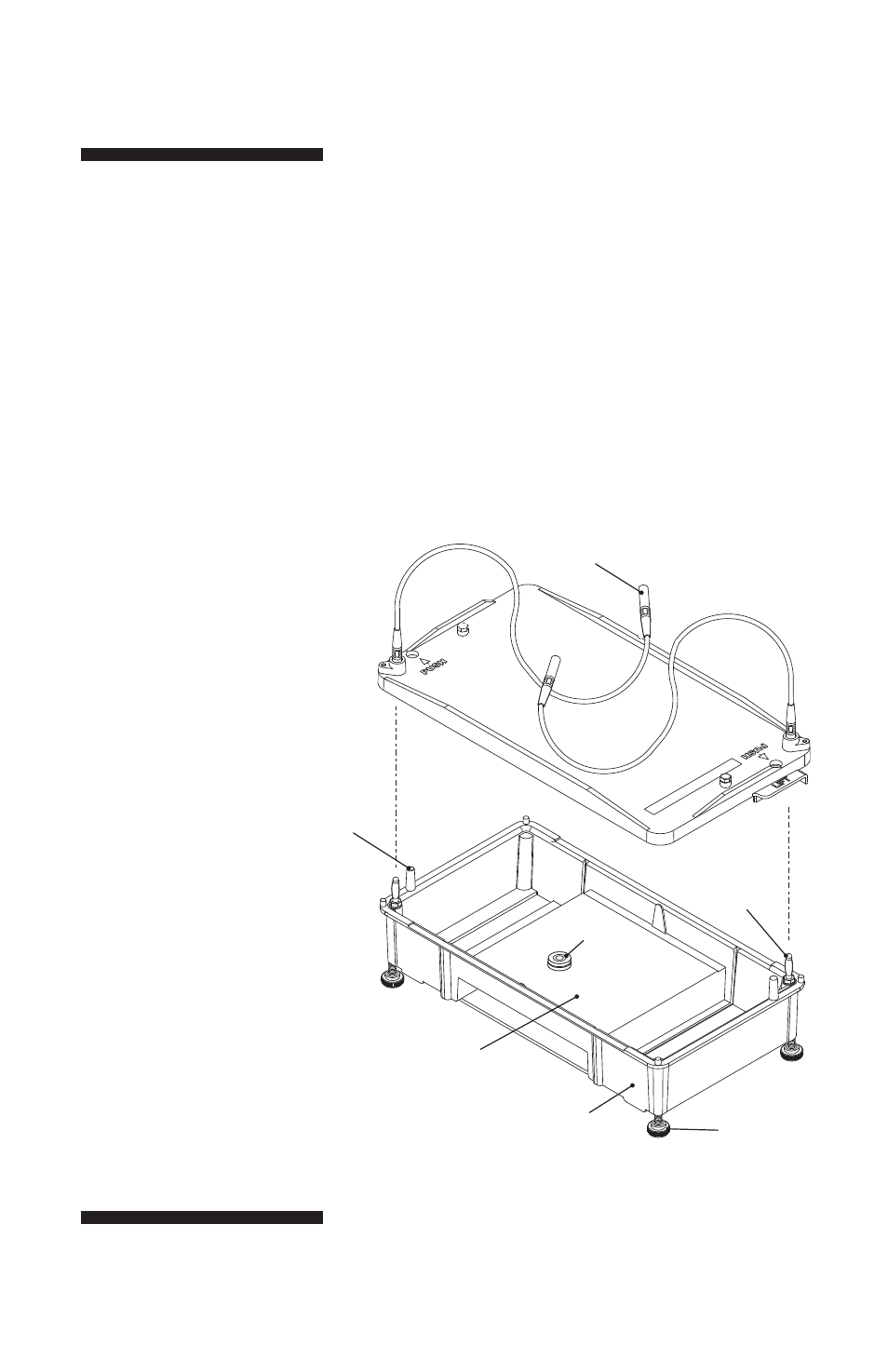

Fig 1. Horizontal submarine unit
main components.
Gel casting kits, combs and comb
backs may be ordered separately;
Fig 2 illustrates a casting kit, and
the ordering section tabulates all
comb sizes and accessories.
electrode
post (2)
buffer
chamber
leveling
feet (4)
spirit
level
running
platform
Color-coded leads connect
electrodes in the unit base
to the power supply.
Rest thumbs
on both posts
(protruding
through each
end of lid) while
lifting both tabs
on lid for easy
lid removal.
