OWNER'S MANUAL
PAGE 09 RS-1601 ASSEMBLY
NOTE:
- INSTALL CABLE AND PULLEYS AT THE
SAME TIME.
- WRENCH TIGHTEN HARDWARE.
- SOME PARTS MAY HAVE BEEN REMOVED
FOR CLARITY.

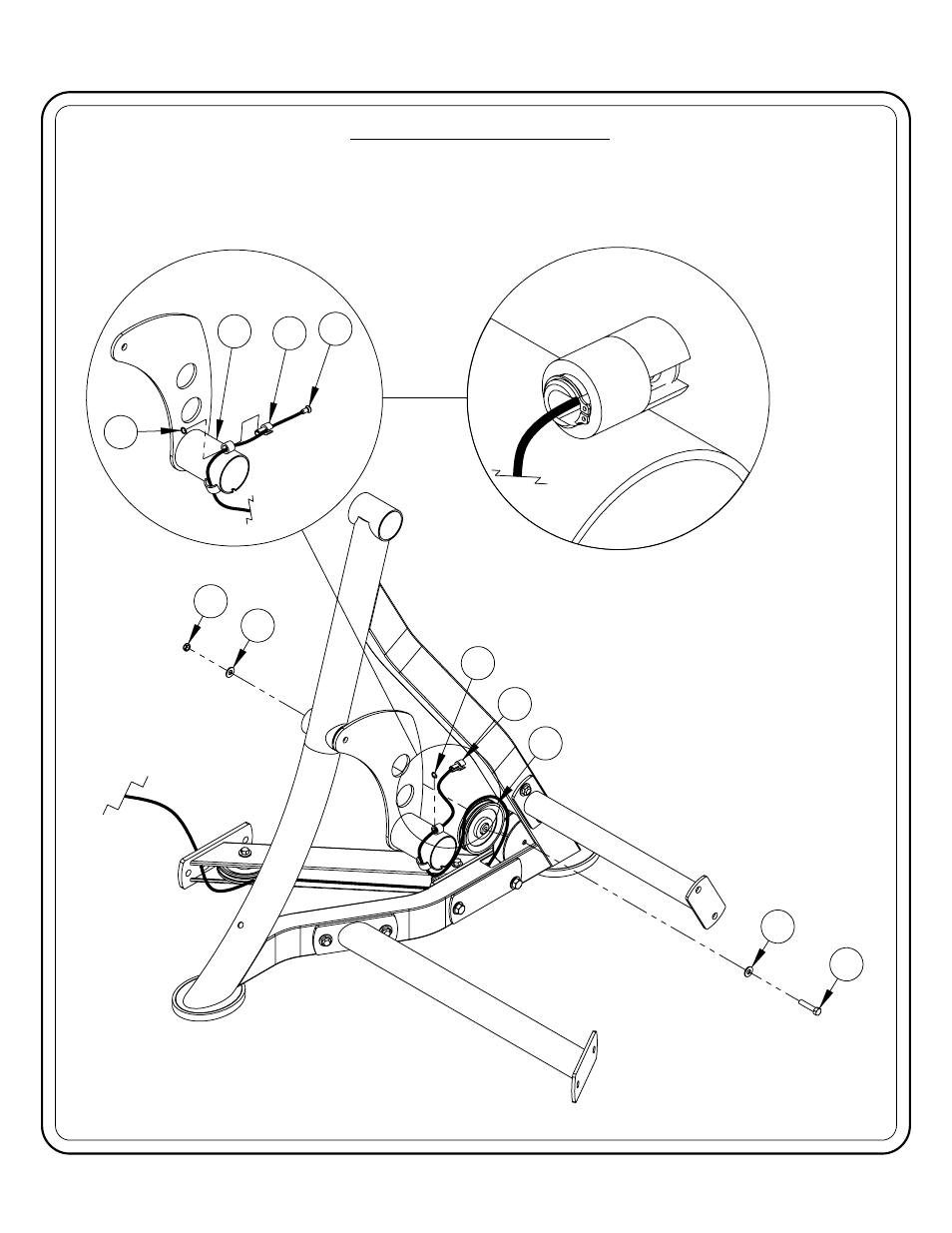

FRAME ASSEMBLY
77
64
70
64
57
28
97
97
11 28
1
DETAIL VIEW
CABLE QUICK RELEASE ASSEMBLY
DETAIL VIEW
COMPLETED CABLE QUICK RELEASE
