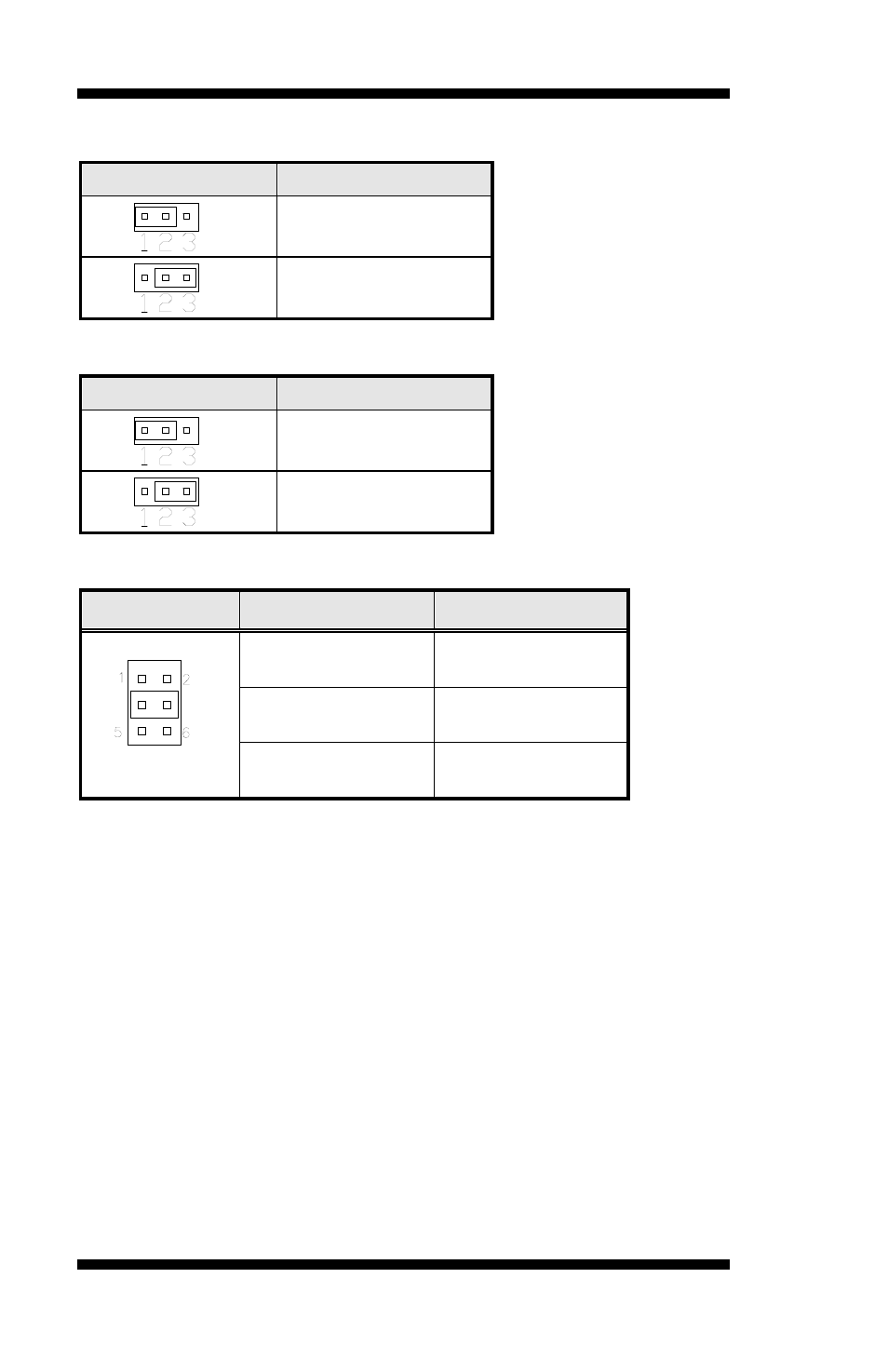

JP2: ATX or AT Power Selection

JP2

ATX Power

ATX

AT

JP3: LCD Panel Power Selection

JP3

LCD Panel Power

3.3V

5V

JP4, JP5: COM3,4 RS232 +5V/+12V Power Setting

JP4, JP5

Setting

Function

Pin 1-2

Short/Closed

+12V

Pin 3-4

Short/Closed

RI

Pin 5-6

Short/Closed

+5V
