AMS100-807 Series
User’s Manual
7
Chapter 6

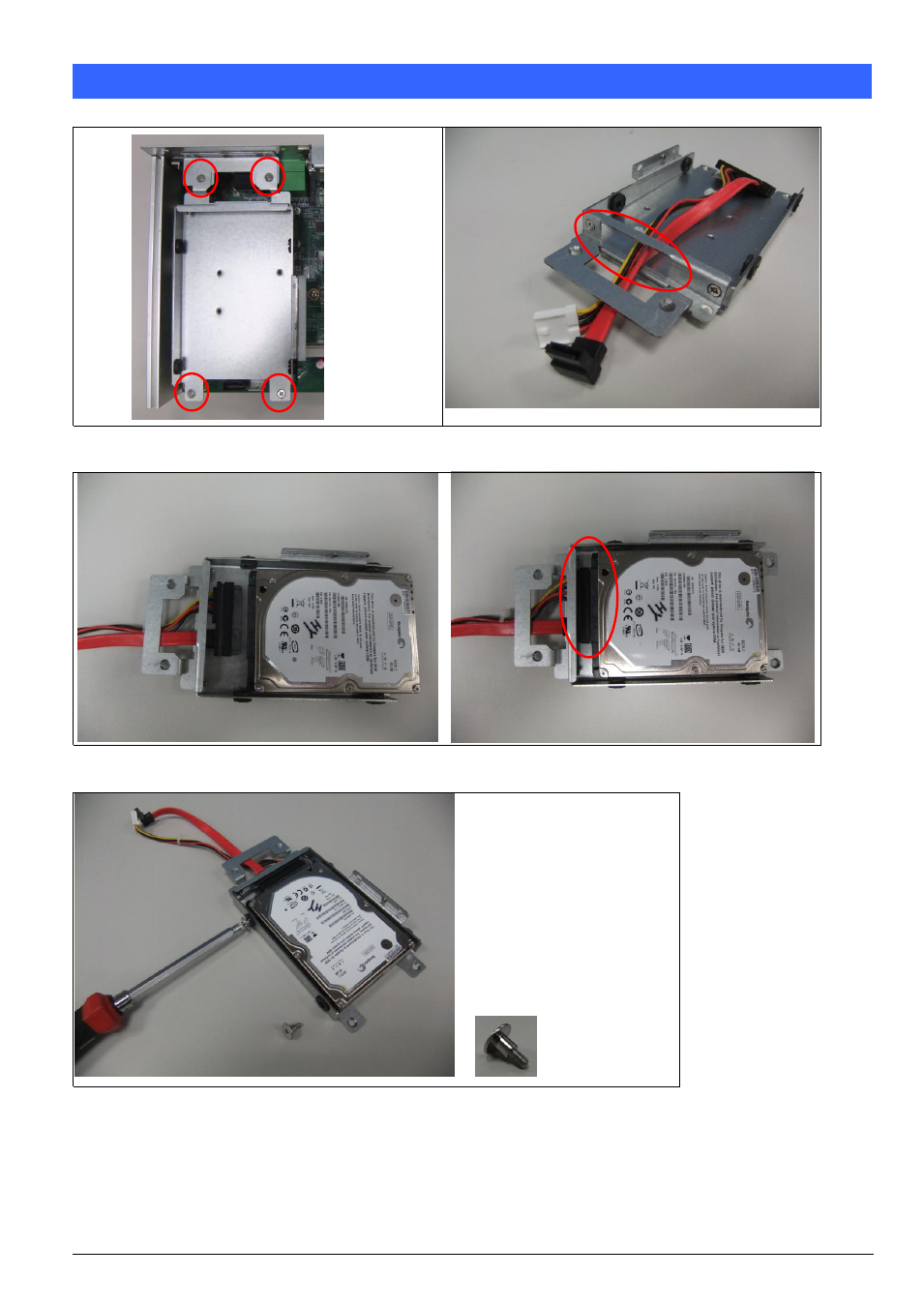

Installing the 2.5” HDD
Fig. 6-1 Loosen four screws to remove HDD
bracket.
Fig. 6-2 Insert the SATA cable
Fig. 6-3 Put HDD on the bracket Fig. 6-4 Assemble cable and HDD
shoulder screw
Fig. 6-5 Fasten HDD on bracket with four shoulder screws.
