DVXI/ET-XX KVM-EXTENDER
56

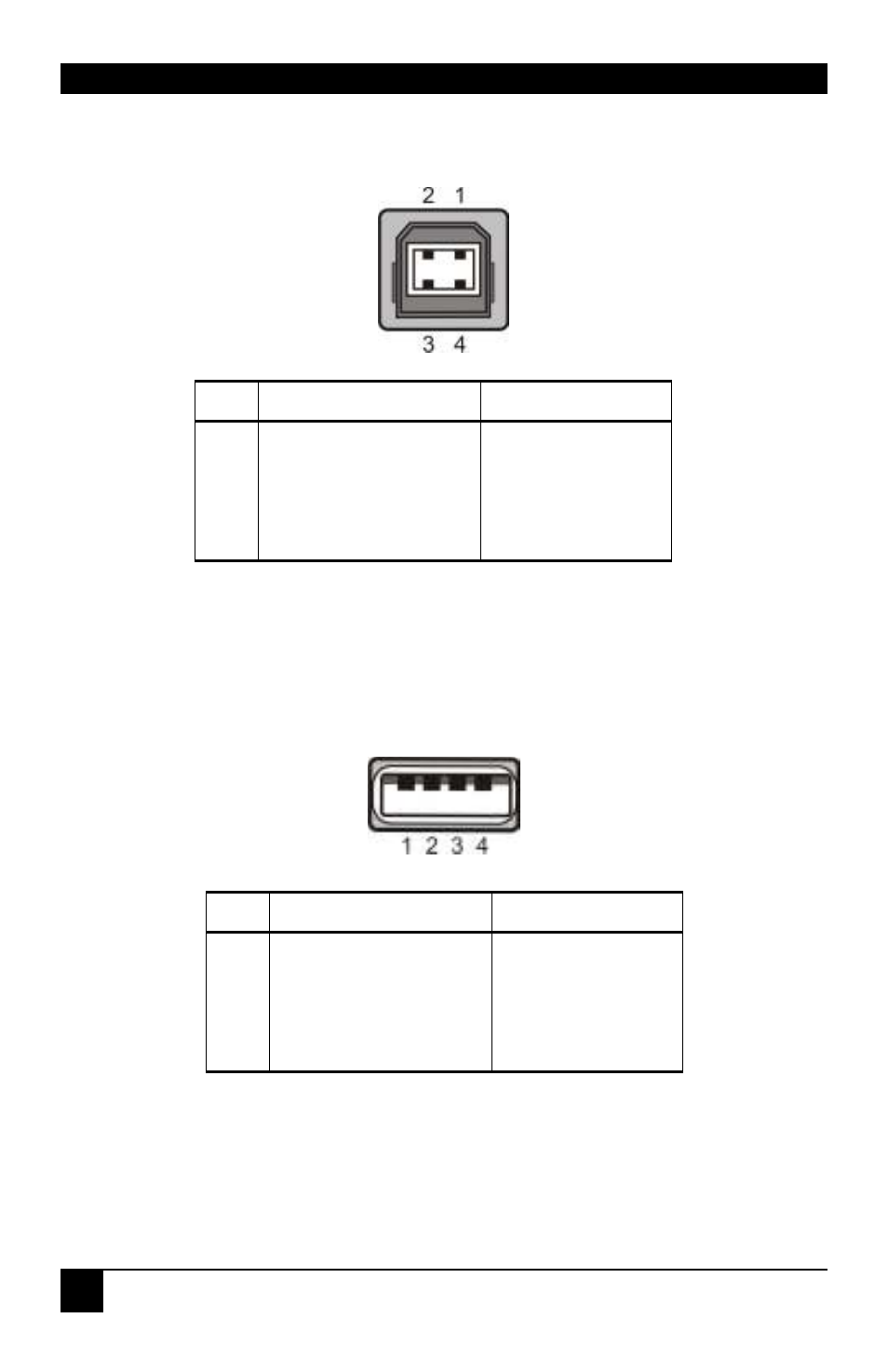

Keyboard/Mouse Connector, USB Type B
(connector at Local Unit)
Pin
Signal
1
VCC (+5V)
Red
2
Data -
White
3
Data +
Green
4
GND
Black
Keyboard/Mouse Connector, USB Type A
(connector at Remote Unit)
Pin
Signal
1
VCC (+5V)
Red
2
Data -
White
3
Data +
Green
4
GND
Black
