RL‐30 Undercounter May 2012 23 www.insingermachine.com 800‐344‐4802
PART 6 ELECTRICAL SCHEMATICS
& REPLACEMENT PARTS

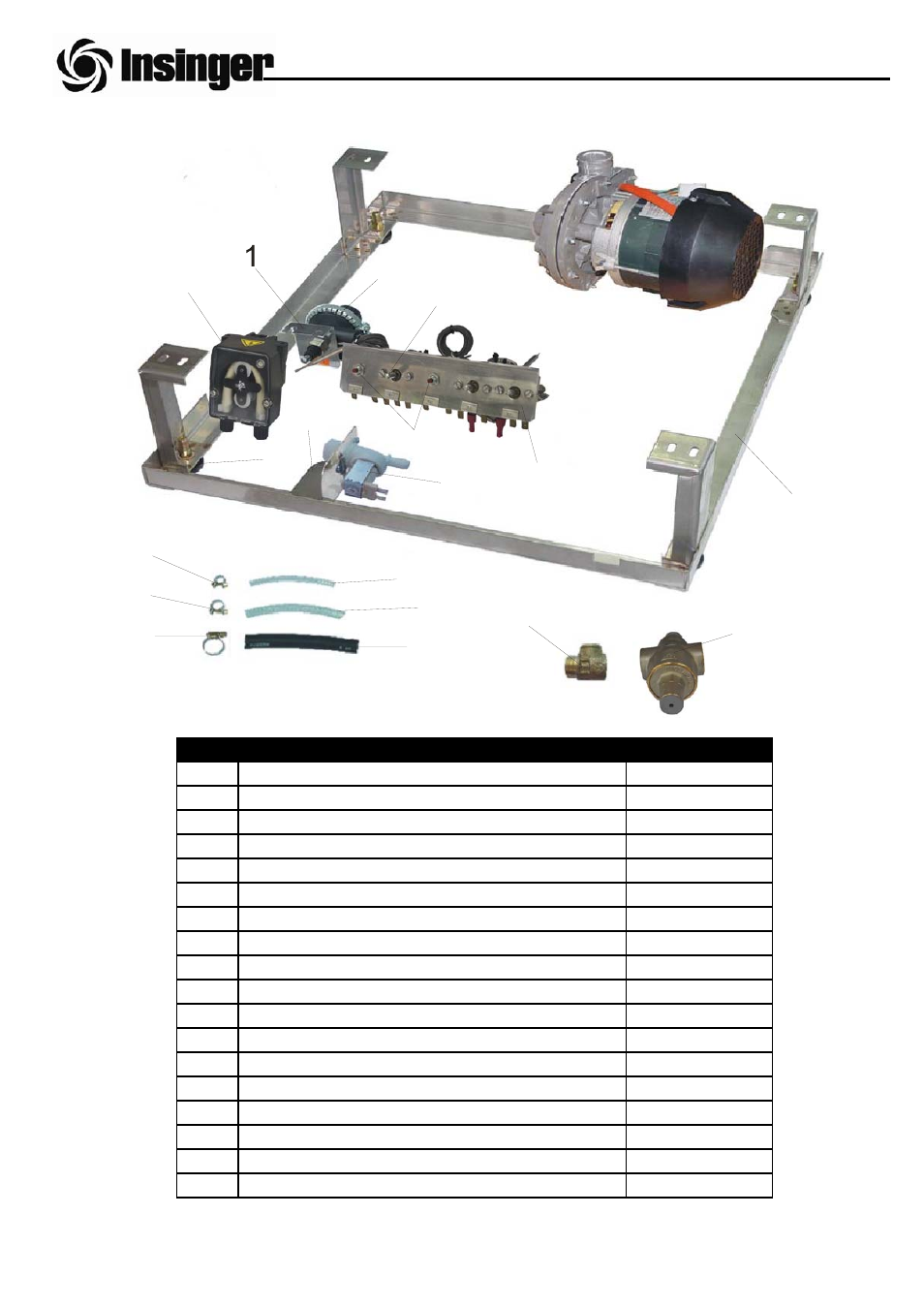

03 BASED WASH ZONE
17
18
2
3
4
5
6
11
12
13
14
15
16
10
8
9 9
7
Designation Part no.
1 Rinse liquid dispenser support RL5543119
2 Rinse liquid dispenser RL2031101
3 Thermostat 93ºC. RL2006053
4 Detergent Dispenser RL2031080
5 Feet RL4027102
6 Solenoid valve support RL5543120
7 Safety thermostat 140ºC. RL2006062
8 Solenoid valve 220/240V. a 50 – 60 Hz. RL2017006
9 Thermostat support RL5543117
10 Hose clip 9,5-10 D3196
11 Hose clip 12-13 D3197
12 Hose clip 12-22 D3198
13 PVC 6x9 length 800 mm. (detergent) D3202 + D3059
14 Hose 6x12 length 450 mm. (rinse) D3200
15 Hose ø 12mm length 810 mm. (water) D3199
16 ¾ connection for pressure gauge RL1014018
17 Frame RL0506130
18 Pressure regulator water inlet RL1009220
