2-2-3 Header Pin Definition

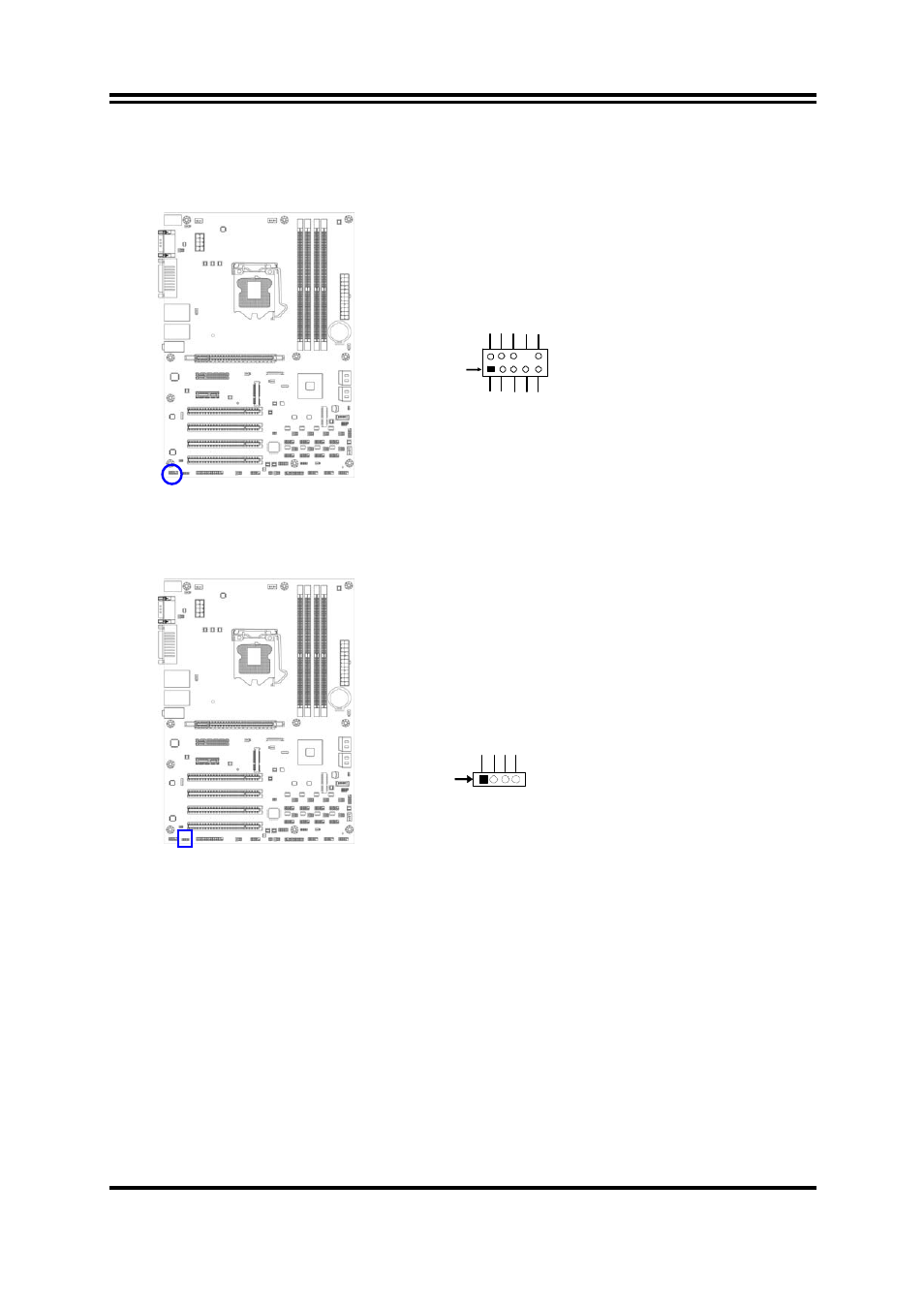

(1) Line-Out/MIC Header for Front Panel (9-pin): FP_AUDIO
This header is connected to Front Panel Line-out, MIC connector with cable.
Line-Out, MIC Headers
Pin 1
LI
N
E
OU
T2
-L
LI
N
E
O
U
T
2
-R
SE
N
S
E
-F
B
A
U
D
IO-
GN
D
LI
N
E
2
-JD
A
UDI
O
-J
D
2
9
10
KE
Y
MI
C
2
-L
MI
C
2
-J
D
MI
C
2
-R
(2) CD AUDIO-In Headers (4-pin): CDIN
CDIN are the connectors for CD-Audio Input signal. Please connect it to
CD-ROM CD-Audio output connector.
CDIN Header
GN
D
CD
-L
GN
D
CD
-R
Pin 1
(3) Speaker connector: SPEAK
This 4-pin header connects to the case-mounted speaker. See the figure below.
(4) Power LED: PWR LED
The Power LED header is light on while the system power is on. Connect the
Power LED header from the system case to this pin.
