Location Requirements . . .
Select a location with a solid floor.
No other fuel burning appliance should be installed in
the same closet with the dryer.
The dryer must not be installed or stored in an area
where it will be exposed to water and/or weather.
Leveling legs can be adjusted from inside the dryer
with a 1/4" driver. All four legs must rest firmly on the
floor so the weight of the dryer is evenly distributed.
The dryer must not rock.
The dryer needs sufficient clearance and an adequate
air supply for proper operation and ventilation, and for
easier installation and servicing. (Minimum clearances
are shown below.)
** NOTE: For new installations, locate top of wall vent 42 inches above floor to make venting easier to
connect.
AREA DESCRIPTION FREE STANDING / ALCOVE
INSTALLATION
(See Illustration) CLOSET INSTALLATION
(See Illustration)
A Dryer sides and rear clearance 0" (0 cm) 0" (0 cm)
B Dryer top clearance 12" (30.5 cm) 12" (30.5 cm)
C Dryer front clearance Not Applicable 2" (5.1 cm)
D Exhaust duct clearance to
combustible material 2" (5.1 cm) 2" (5.1 cm)
E Weather hood to ground clearance 12" (30.5 cm) 12" (30.5 cm)
F Distance from floor or ceiling to
hole edge Not Applicable 3" (7.6 cm)
G* Area of centered air openings in
closet door Not Applicable 40 sq. in./open (260 sq. cm)
*Louvered door with equivalent air openings is acceptable. (Minimum clearances are shown.)

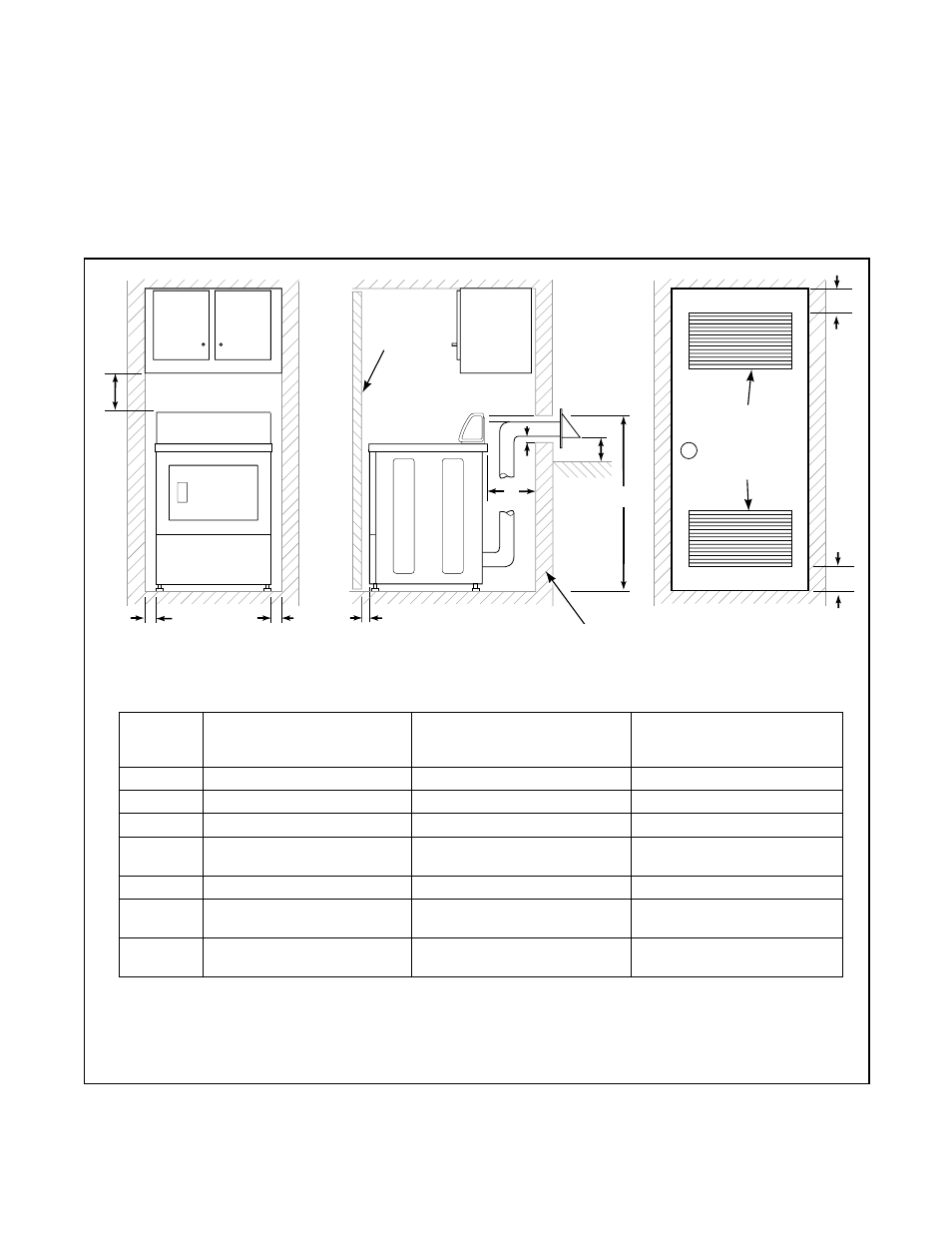

CLOSET
DOOR
D317IE3A
FRONT VIEW
(w/o Closet Door)
SIDE VIEW
A A C
A
D
E
B
CENTERED
AIR
OPENINGS (G)
(2 Openings
Minimum)
FRONT VIEW
(Closet Door)
F
F
OUTER
WALL OF
ENCLOSURE
**42"
