#8-32 HEX NUT

TRUCK WALL

GASKET

INDICATOR

LOCK & FLAT WASHER

8-32 SCREW

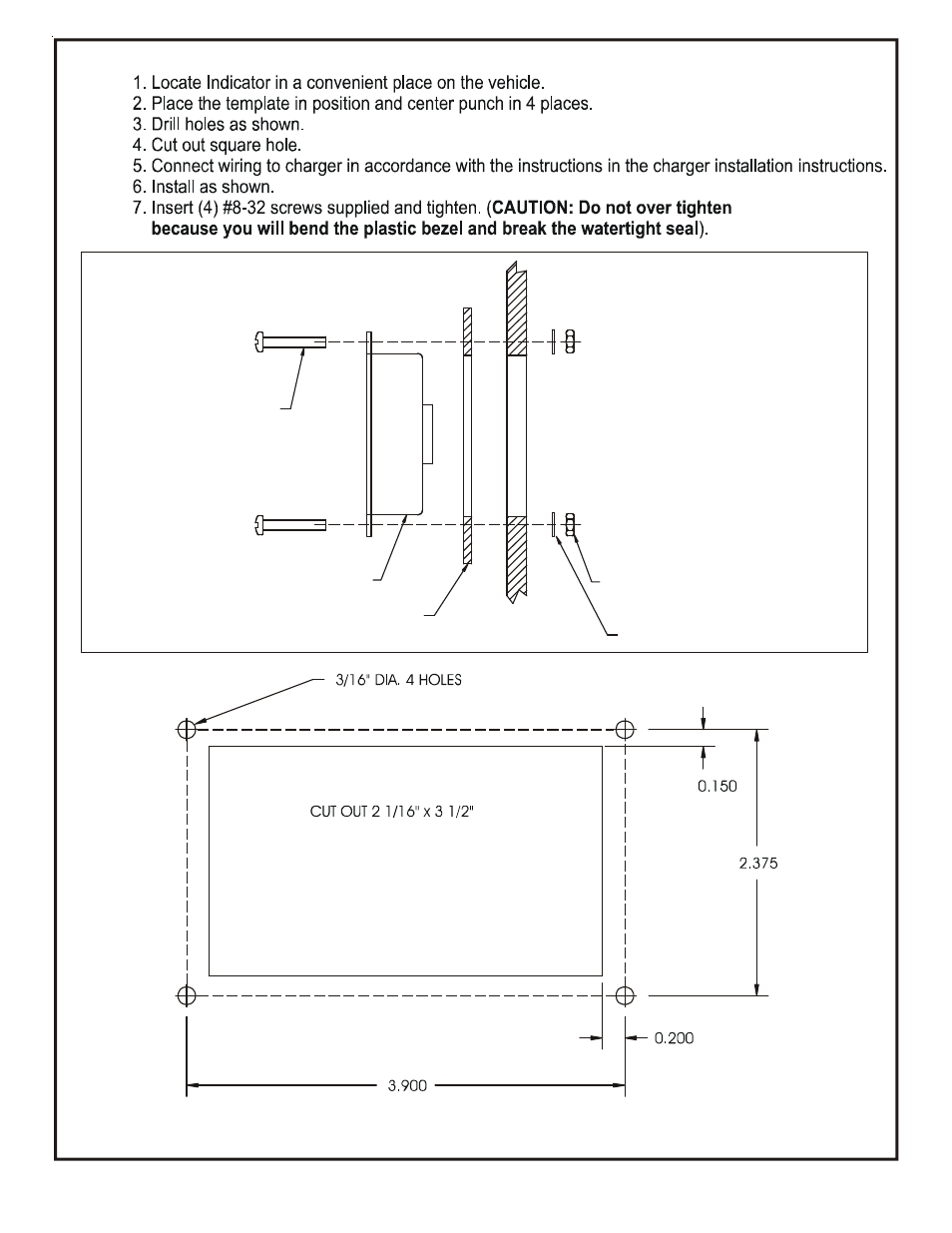

INDICATOR INSTALLATION

HOLE TEMPLATE

File: Ind.cdr rev C: 3-31-10 do not shrink this art work

Hole Template may not be to Scale, please check dimensions before using.
