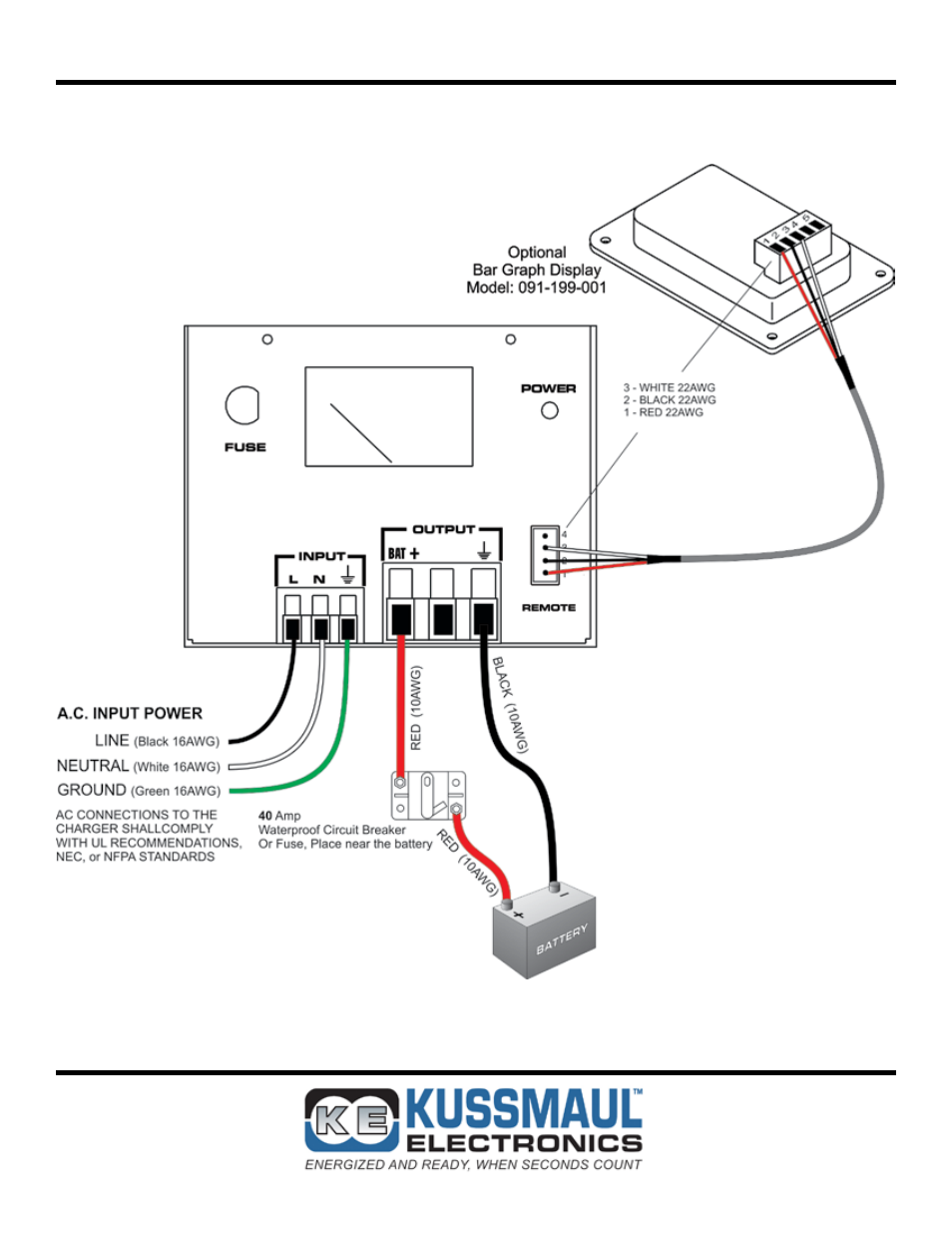

INSTALLATION WIRING DIAGRAM
I. FOR MODEL #: 091-170-6, SHOWN WITH OPTIONAL BAR GRAPH DISPLAY, 091-199-001
Wiring Diagram shown is for a 10 foot installation
