INSTRUCTION / INSTALLATION SHEET
Integration Expansion Module
IS-0466 Rev. O
301Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
©Copyright 2010 by Legrand All Rights Reserved.
Page 2 of 2
3.
INSTALLATION
A. WIRING
All interfaces on the Integration Expansion Module are RJ45 jacks
which require Cat 5 cables to be terminated using the T568A wiring
standard shown in Figure 3.
NOTE: All devices in a Unity system should be powered up at the
same time (i.e. use a common power strip for the individual AC
adapters).
NOTE: The HA6101 is configured via any LCD Console/TVDI or via
the web-based configuration interface, accessed by entering the
system IP address (found under Setup/Network Info) into your PC
web browser (PC must be on same data network as Unity System.

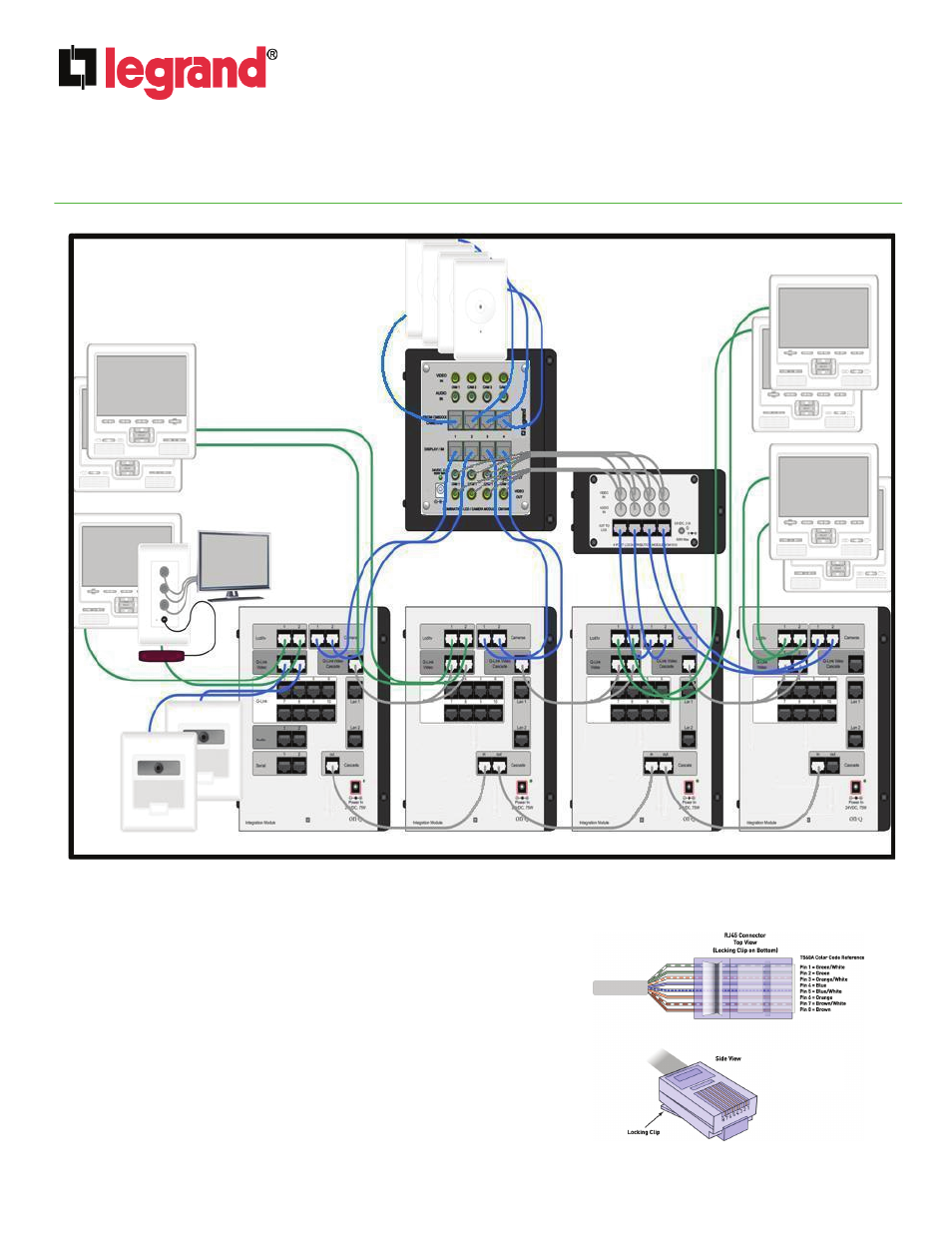

Figure 2
Figure 3
NOTE: Although not shown below, all
“Lan” jacks must be connected to a
router port for the modules to
function.
