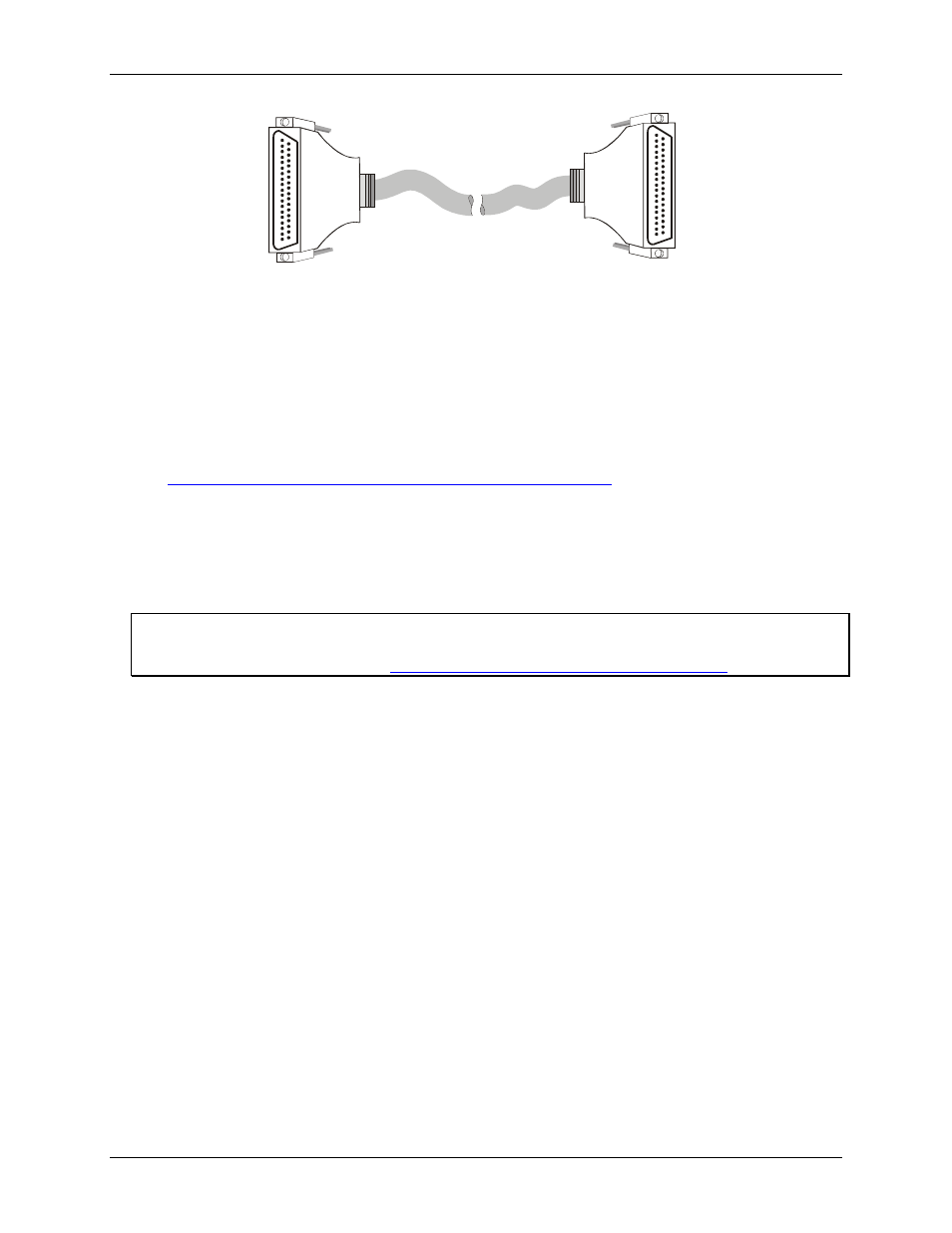

Figure 4. C37FFS-x cable
Field wiring and signal termination
You can use the following MCC screw terminal boards and relay racks with the PCIe-DIO24 board using the
C37FF-x or C37FFS-x cable:

SCB-37 – 37-conductor, shielded signal connection/screw terminal box that provides two independent 37-
pin connections.
 CIO-MINI37 – 4 x 4, 37-pin screw terminal board.
 CIO-MINI37-VERT – 37-pin screw terminal accessory with vertical 37-pin male D connector. Details on
this product are available on our website at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=256 .
 SSR-RACK24 – 24-position solid state relay rack.
 SSR-RACK08 – Eight-channel solid state relay rack.
 CIO-ERB08 – Eight-channel electromechanical relay accessory for digital I/O boards.
 CIO-SERB08 – Eight Form C and ten socketed relay accessory for digital I/O boards.
 CIO-ERB24 – 24-channel electromechanical relay accessory for digital I/O boards.
For additional information about digital interfacing
Detailed information regarding digital interfacing is contained in MCC's Guide to Signal Connections. This
document is available on our website at www.measurementcomputing.com/signals/signals.pdf .
