System Examples

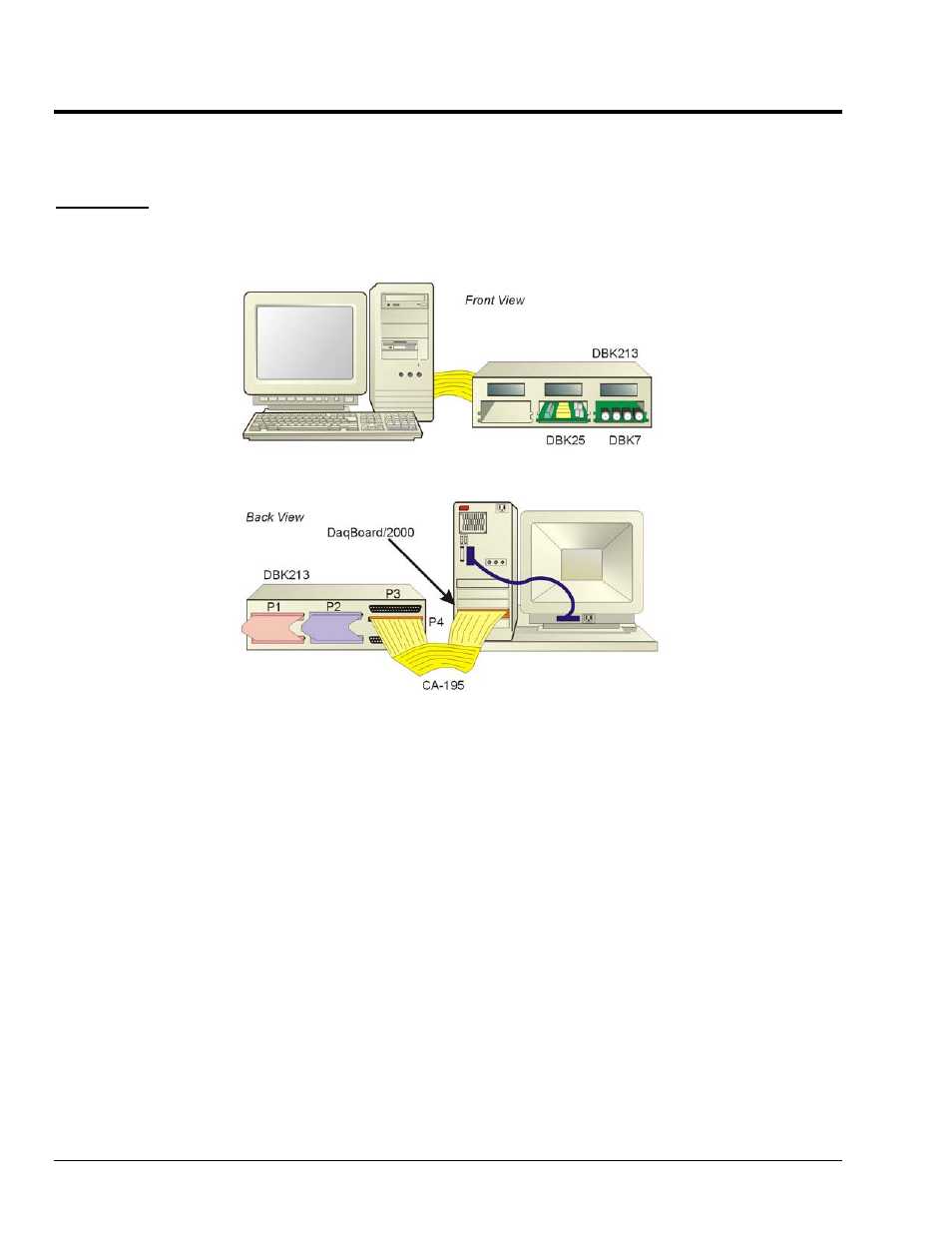

Example 1:
DaqBoard/2000
•
DBK7 Analog I/O Card
•
DBK25 Digital I/O Card
Notes regarding the above system example:
1) A CA-195 100-conductor ribbon cable connects the P4 connector of the DBK213 to the P4 connector of the
DaqBoard/2000 (which is installed in the host PC).
2) In the illustration, DBK213 is housing a DBK7 (Analog I/O card) and a DBK25 (Digital I/O card).
3) A CA-255 [or CA-37] cable is used to connect the DBK7’s DB37 P1 connector to the DBK213’s P1 connector.
4) A CA-255 [or CA-37] cable is used to connect the DBK25’s DB37 P2 connector to the DBK213’s P2 connector.
