DBK215, pg. 2
967894
DBK Option Cards and Modules

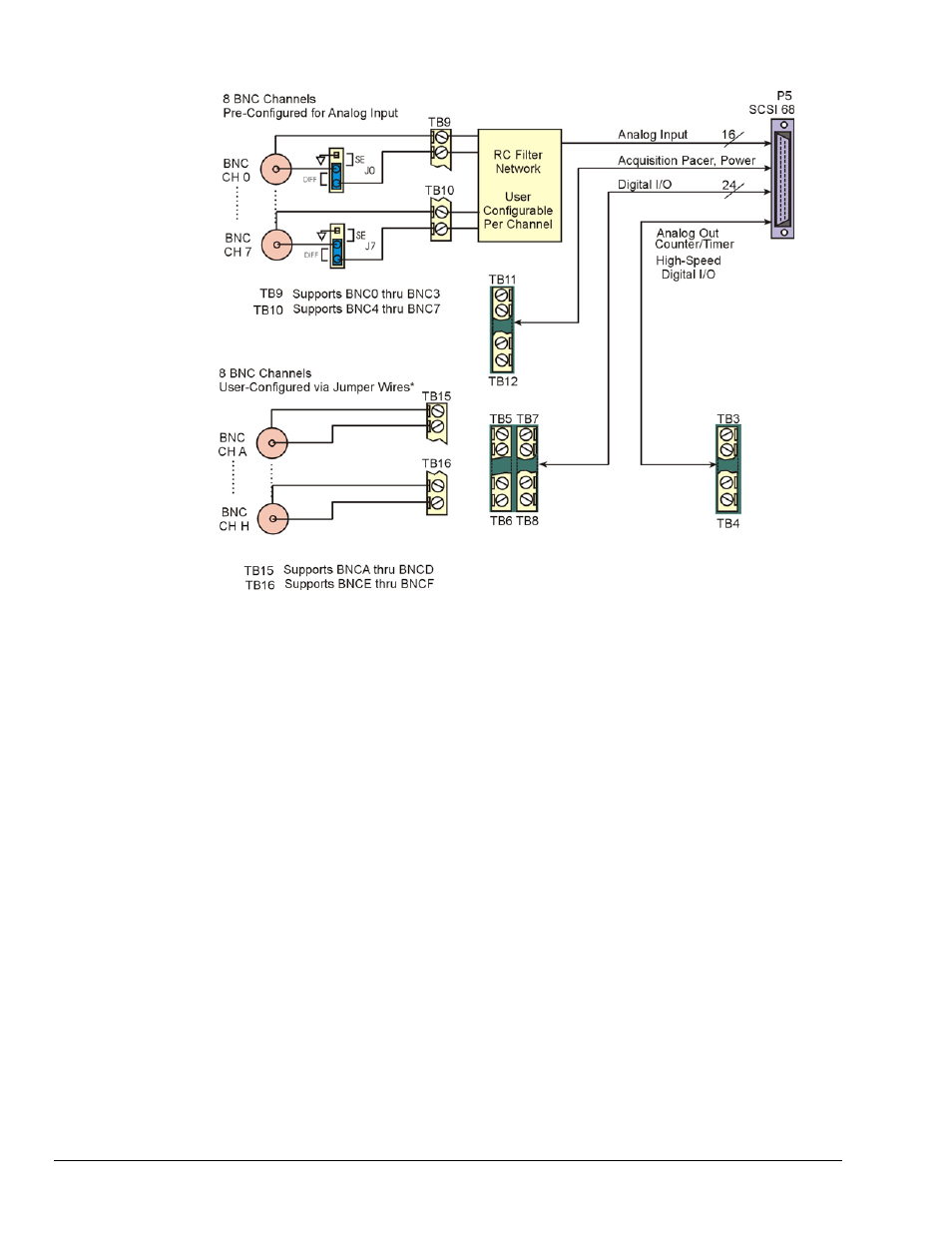

DBK215 Block Diagram
* Accessory Kit p/n 1139-0800 includes jumper wires and a screw driver.
Note that the 68-pin SCSI (P5) connector typically connects to a DaqBoard/500 Series or
DaqBoard/1000 Series board’s SCSI connector via a CA-G55, CA-G56, or CA-G56-6 cable.
o
CA-G55 is a 3-foot long cable.
o
CA-G56 is a 3-foot long shielded cable.
o
CA-G56-6 is a 6-foot long shielded cable.
