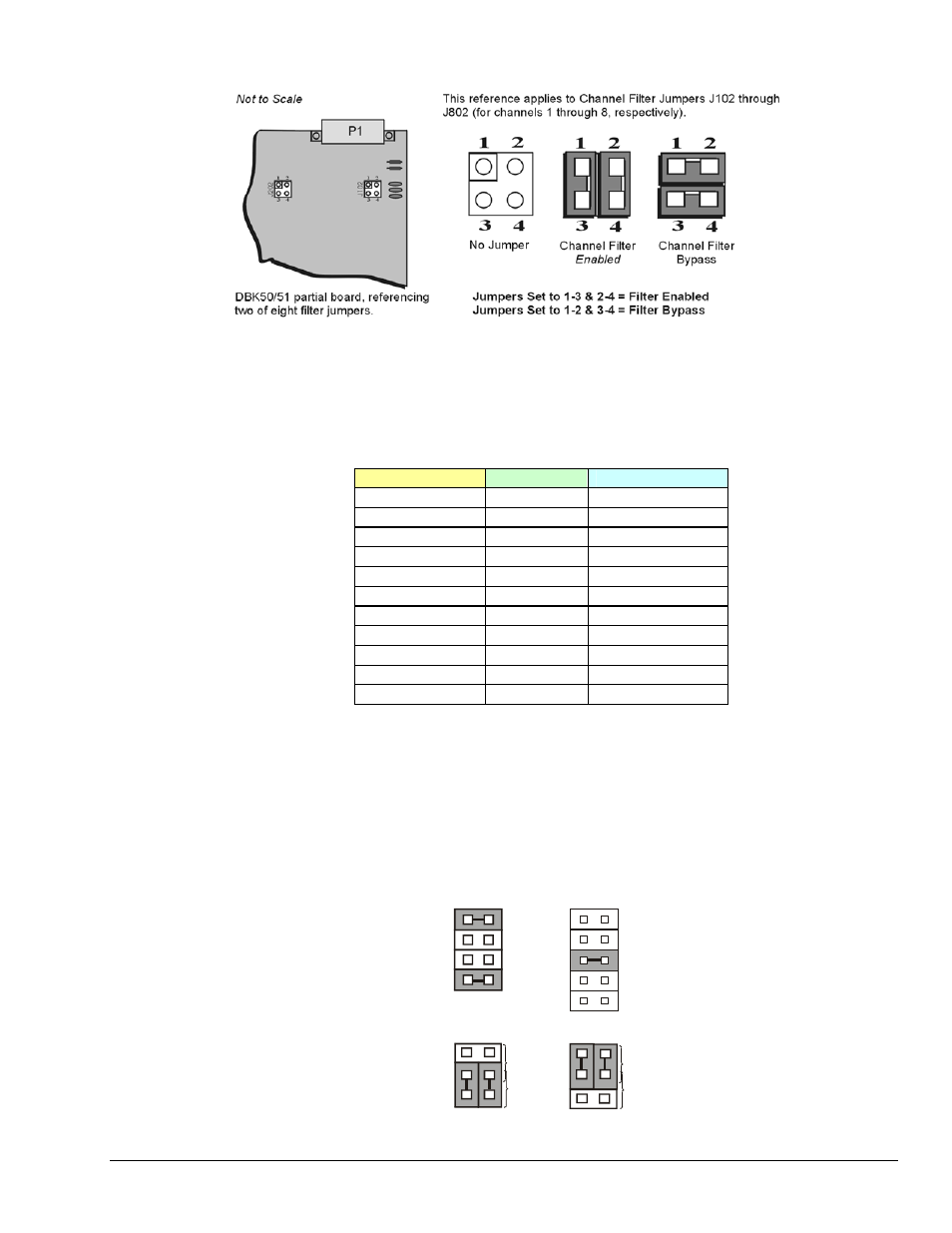

Channel Filter Jumper Settings for DBK50 and DBK51
The low-pass filters have a default corner frequency of 3.5 Hz when the jumpers are in the LPF-selected
positions. This frequency may be readily changed by installing a different value of SIP resistor network in
the 6-pin SIP socket of each filter section. Each channel has its own SIP located next to the channel filter
bypass jumper and labeled RN(1-8)01A. The table lists values of common networks and their corner
frequencies.
Corner Frequency R-SIP Bournes Part #
7500 Hz 47 Ω 4606M-102-470
3500 Hz 100 Ω 4606M-102-101
1750 Hz 200
Ω 4606M-102-201
750 Hz 470
Ω 4606M-102-471
350 Hz 1 k Ω 4606M-102-102
175 Hz 2 k Ω 4606M-102-208
75 Hz 4.7 k
Ω 4606M-102-208
35 Hz 10 k
Ω 4606M-102-103
17.5 Hz 20 k Ω 4606M-102-203
7.5 Hz 47 k
Ω 4606M-102-473
3.5 Hz 100k
Ω 4606M-102-104
DaqBook/100 Series & /200 Series and DaqBoard [ISA type] Configuration
Several setup steps in DaqBook/100 Series & /200 Series devices and DaqBoards [ISA type] are required
to use a DBK50 or DBK51 module in a system.
1. If not using auxiliary power, set the JP1 jumper [in the DaqBook/100 Series & /200 Series
devices or ISA-Type DaqBoard] to the Analog Option Card Use, also referred to as the
expanded analog mode.
SSH
DAC 0 - EXT
DAC 0 - INT
DAC 1 - INT
DAC 1 - EXT
JP2 JP1
-15 V
-OCTOUT
-OCLKIN
+15 V
Analog Option
Card Use
UNI-
BI-
SE
16CH
DIFF
8CH
JP3 JP4
Bipolar Single-Ended
DaqBook/DaqBoard Jumpers for DBK50/51
DBK Option Cards and Modules 989594 DBK50 and DBK51, pg. 3
