Typical Performance Characteristics

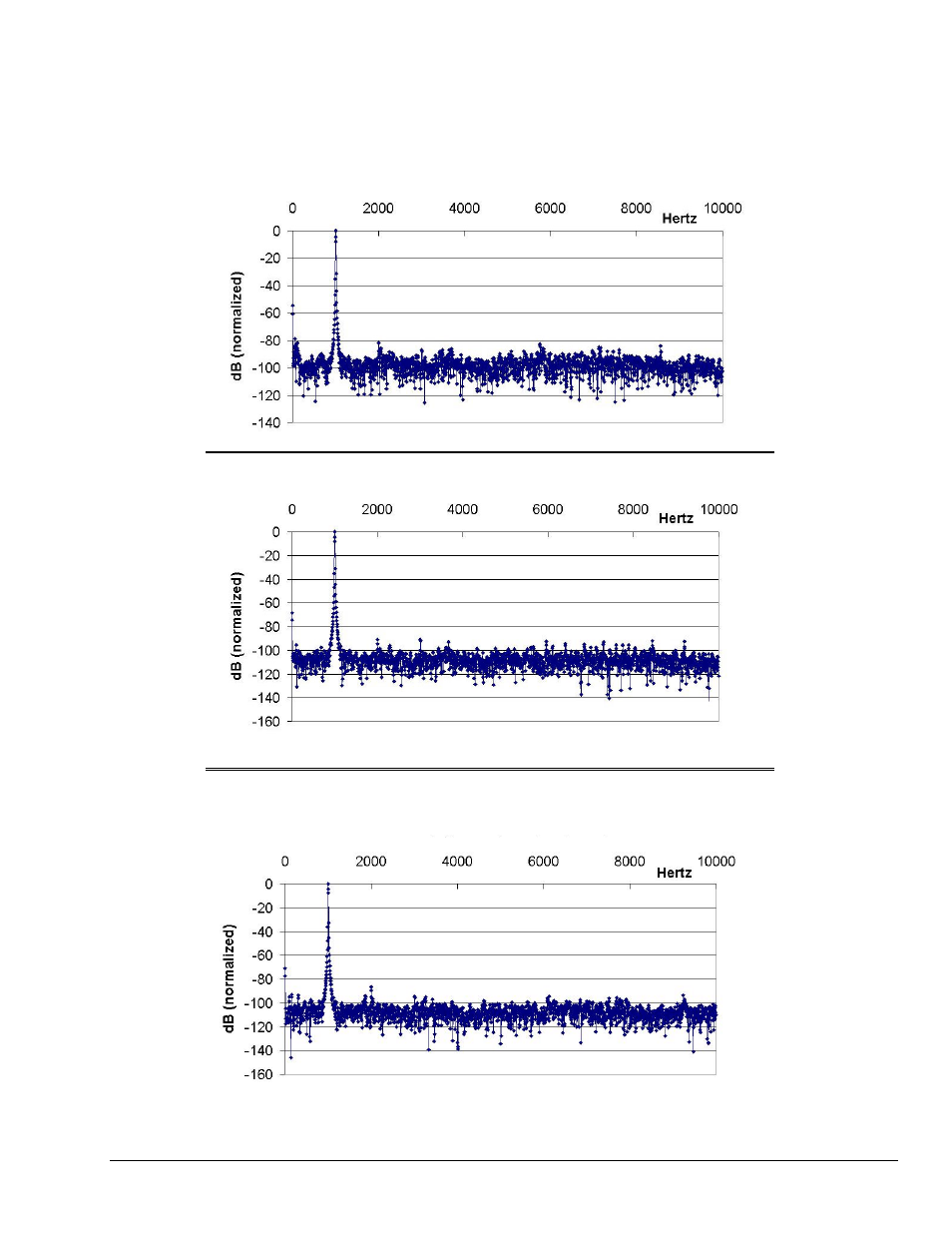

WBK18 Frequency Spectrums (typical)
Each spectrum was taken from a WaveBook/516A that was sampling at 20kSamples/sec,
4096-point FFT, B-H Window.

3 Vpp, 1000Hz Sine wave input; ±5V range, 10Hz High pass filter, 10 kHz 8-pole Low pass filter.

8 Vpp, 1000Hz Sine wave input; ±5V range, 10Hz High pass filter, 10 kHz 2-pole Low pass filter.

8 Vpp, 1000Hz Sine wave input; ±5V range, 10Hz High pass filter, 200 kHz Low pass filter
(Bypass mode).


WBK18, Dynamic Signal Input Module

926896

WBK18, pg. 25
