640 & 650 Series 878893 Configuring Ethernet Models 640e & 650e 4-3
Ethernet Connection and System Power-up
As this document goes to print, Ethernet connectivity can only be used with
Windows 2000 or Windows XP operating systems.
Overview

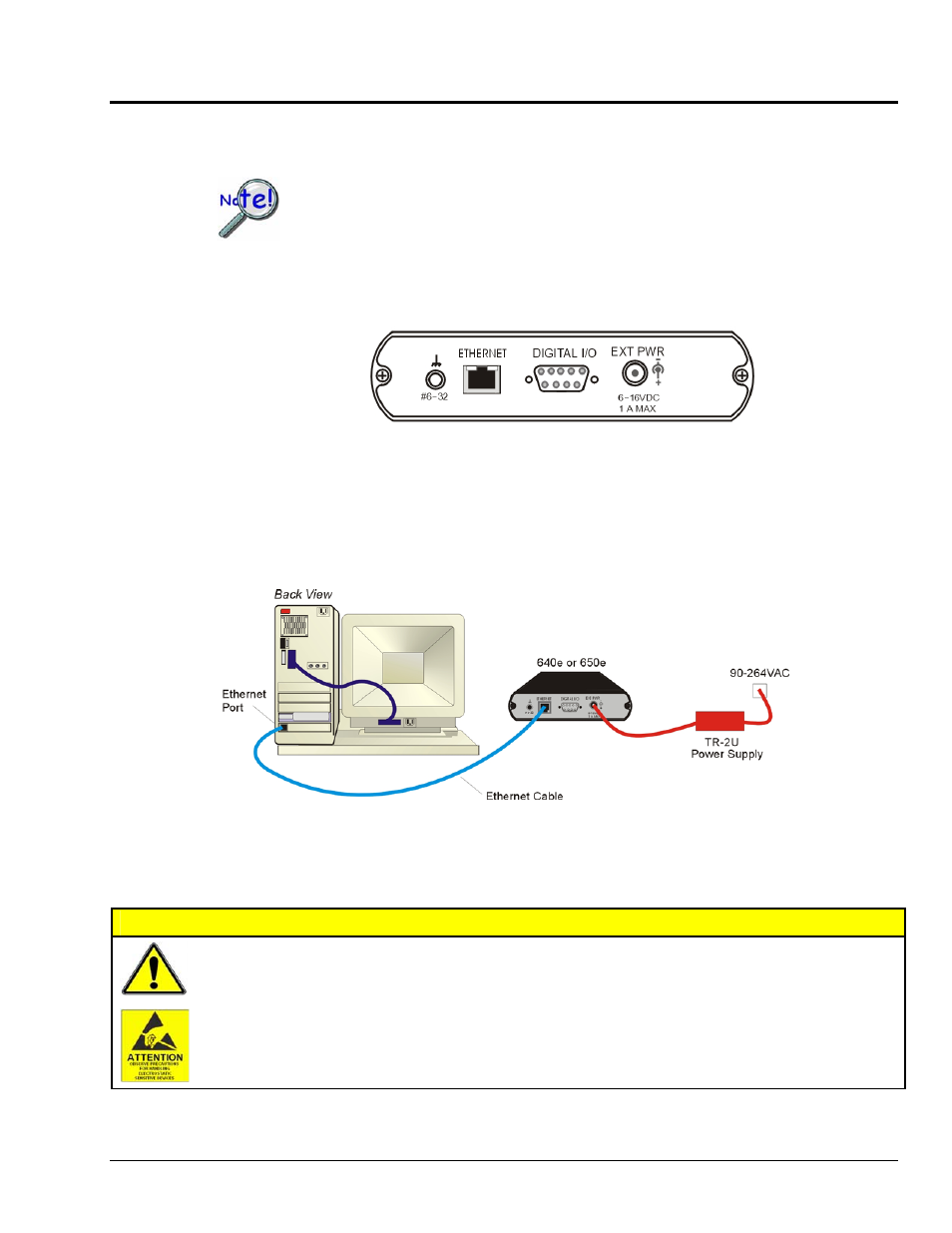

640e or 650e, Rear Panel
IOtech 640e and 650e connect directly to an Ethernet port on a PC or network hub, via the unit’s built-in
10/100BaseT Ethernet interface. An Ethernet patch cable CA-242 (1.5 foot) or CA-242-7 (7 foot) cable is
used to make the connection. Note that either a straight-through or a cross-over cable may be used. The
circuitry automatically adjusts for the cable type to ensure proper connection.
Connecting an IOtech 640e or 650e to the Ethernet
CAUTION
Turn off power to the system devices and externally connected equipment before connecting cables.
Electric shock or damage to equipment can result even under low-voltage conditions.
Take ESD precautions (packaging, proper handling, grounded wrist strap, etc.)
