4
Brake
/
Swivel Lock System
Plain
Axle
1
2
Spacer
Retainer
Washer
3
4
5
6
6"/8" Poly
Wheel
Spacer
Retainer
Washer
7
8
Nut
GREASE THE
CASTER WHEEL
REFER TO PAGES 8-9
Tighten Nut to
30 ft. lbs Torque
THIS COMPLETES THE
ASSEMBLY OF WHEEL
TO CASTER HORN
9

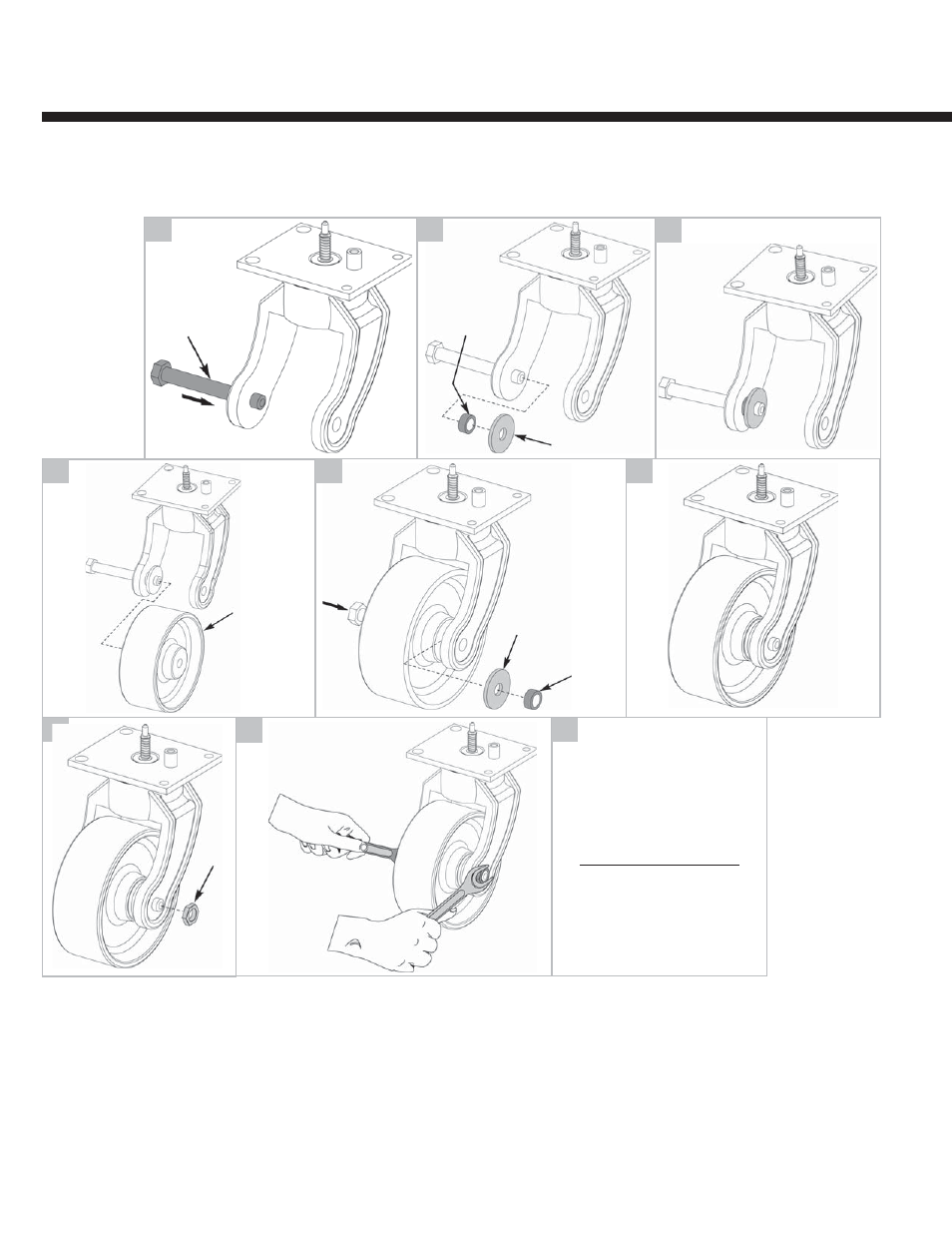

Assembly of Wheel to Caster Horn
