Prince ® SG Spool Gun Owner's Manual - Page 12

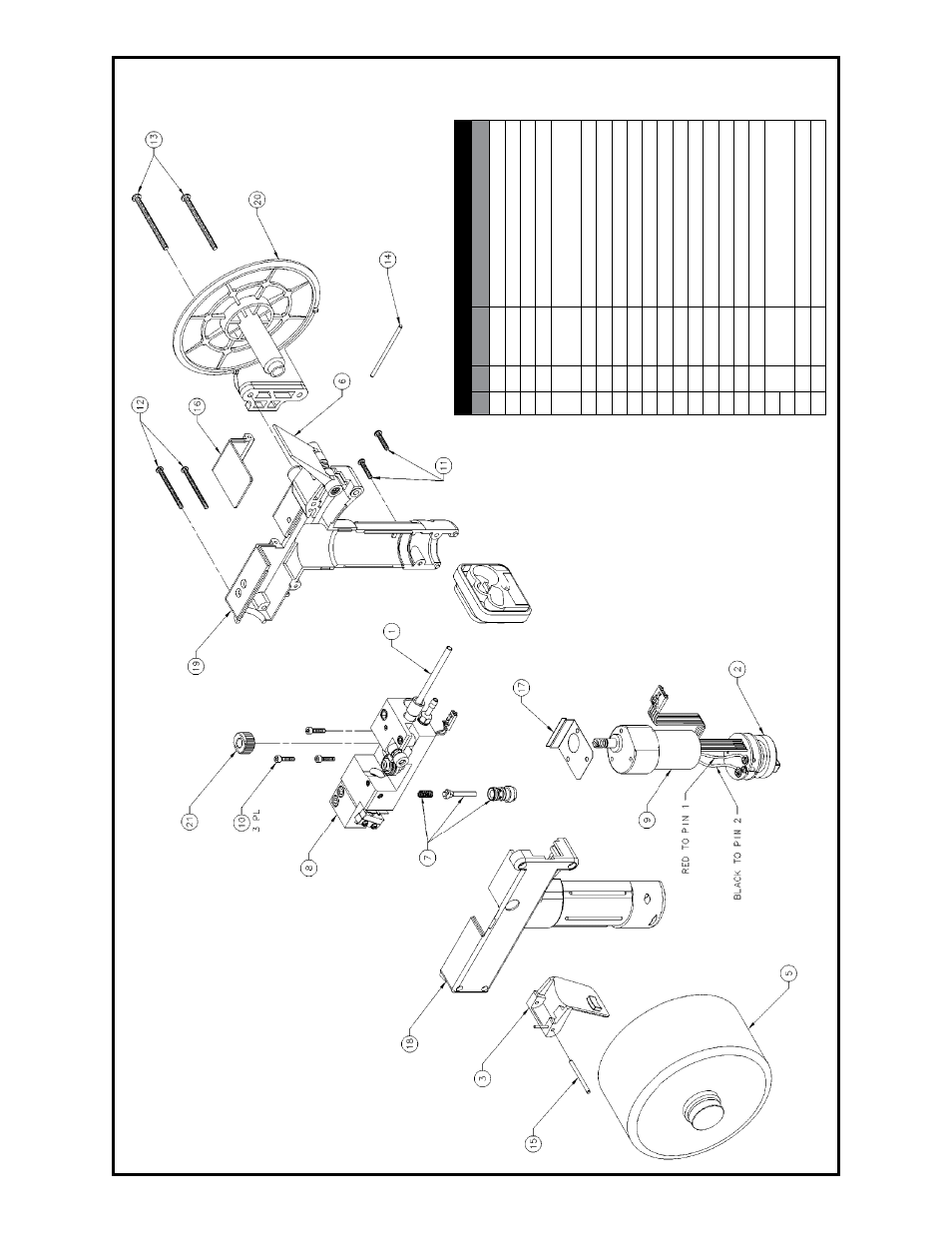

Exploded View, Head Assembly
Prince
®
SG Spool Gun
No.
Qty
.
Part No.
Description
1
1
003-0198
Guide Wire
2
1
005-0661
Assy Potentiometer
3
1
003-0585
Assy
Trigger
4
1
003-1974
Clamp
5
1
003-2021
Assy Spool Gun Cover: Includes items 1,5,6,13,20
6
1
003-2072
Assy Brake Spool Gun
7
1
001-0562
Assy Gas V
alve
8
7
003-2206
Assy Body
9
1
21
1-0082
Motor
, Standard
10
3
328-0003
Screw
Shc
4-40
x
1/2
11
2
336-0049
Screw
Pnhd
Ph
4-40
x
0.625
ST
12
2
336-0056
Screw
Pnhd
Ph
4-40
x
1.50
ST
13
2
336-0073
Screw
Pnhd
Ph
6-32
x
2.00
ST
14
1
421-0408
Pin
Dowel
0.093
x
2.00
LG
15
1
421-0409
Pin
Dowel
0.093
x
1.25
LD
16
1
431-31
17
Door
17
1
435-3124
Spring
18
1
005-0730
Handle
Kit:
Includes
line
items
3,1
1,12,13,15,18,19
19 20
1
437-0235
Spindle
21
1
51
1-0101
Drive Roll Gold
