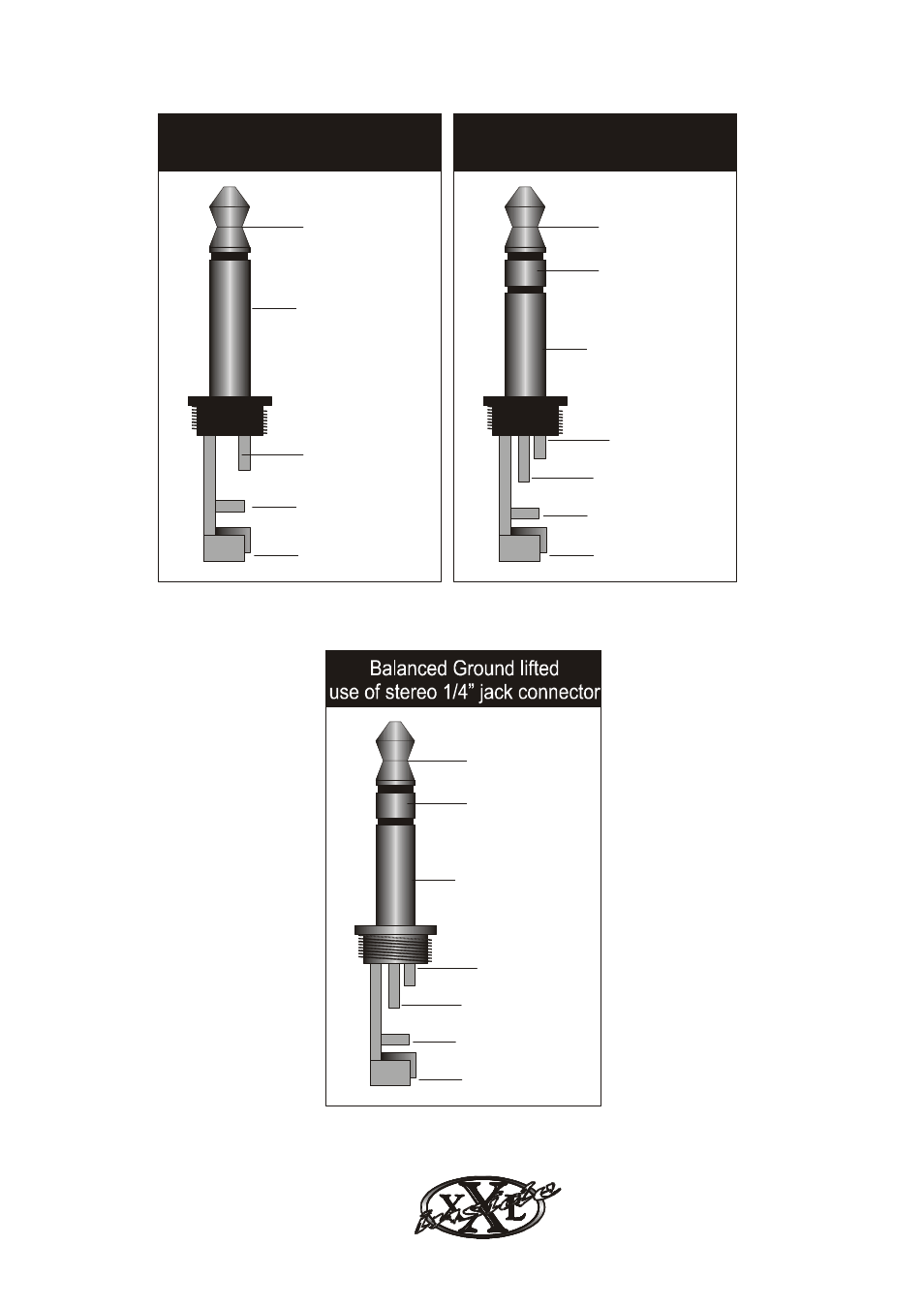

Fig. 2.1: Jack connector wiring
Fig. 2.2: Ground lifted wiring for balanced jack
Tip = Signal Tip = Hot
(In Phase)
Tip = Hot
(In Phase)
Ring = Cold
(Out of Phase)
Ring = Cold
(Out of Phase)
Tip = Signal
Sleeve =
Ground / Shield
Sleeve =
Ground / Shield
Sleeve =
Ground / Shield
Sleeve =
Ground / Shield
Cable Clamp Cable Clamp
Unbalanced use of mono
1/4” jack connector
Balanced use of stereo
1/4” jack connector
Tip = Hot
(In Phase)
Tip = Hot
(In Phase)
Ring = Cold
(Out of Phase)
Ring = Cold
(Out of Phase)
Sleeve =
Ground / Shield
Not connected
Cable Clamp
