AAV-HD-DMUX(-R)/ AAV-SD-DMUX(-R) Rev. 7
nevion.com | 19
5 Operation

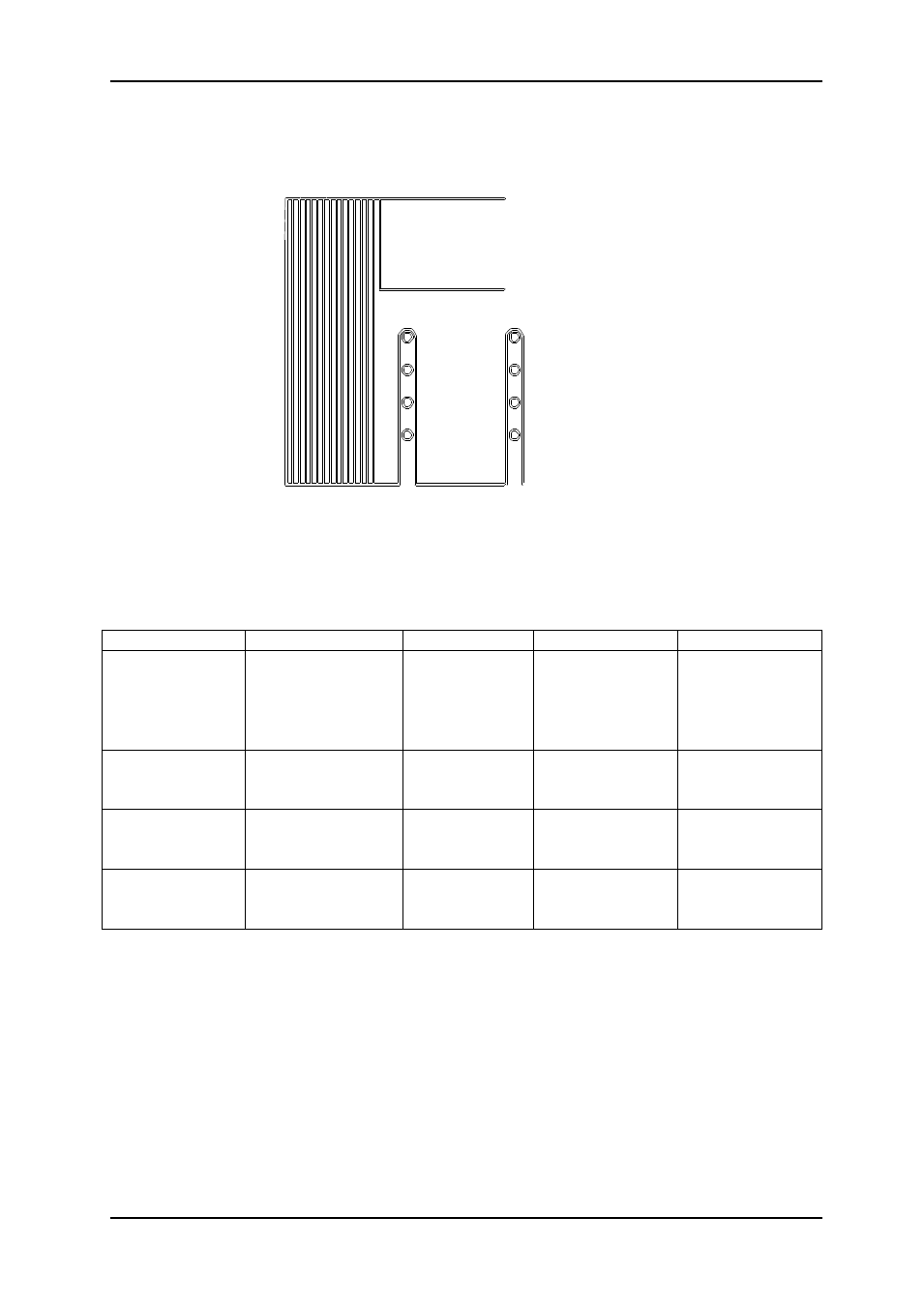

Figure 8: LED overview
(Text not printed on the front panel). Each module has 4 LED’s. The colors of each of the
LED’s have different meanings as shown in the tables below.
5.1 Front panel LEDs
Diode \ state Red LED Orange LED Green LED No light
Card status PTC fuse has
been triggered or
FPGA
programming has
failed Module has
not been
programmed Module is OK Module has no
power
SDI input
status Video signal
absent. Electrical
video signal
present Optical video
signal Present Module has not
been
programmed
Embedded
group 1&2
status: Group 1 & 2 not
present Either group 1
or 2 present Both group 1 &
2 present Module has not
been
programmed
Embedded
group 3&4
status: Group 3 & 4 not
present Either group 3
or 4 present Both group 3 &
4 present Module has not
been
programmed
5.2 GPI alarms
Only three alarms are present on the 8P8C Jack connector as four of the pins are used for
the RS422 data port.
The three alarms are:

Power present (negative logic)

Video signal lost

Laser failure
An active alarm condition means that the transistor is conducting.
The power present alarm should always be active during normal operation.
Card status
Input status
Group 1& 2
status
Group 3& 4
status
AAV-HD-XM UX
