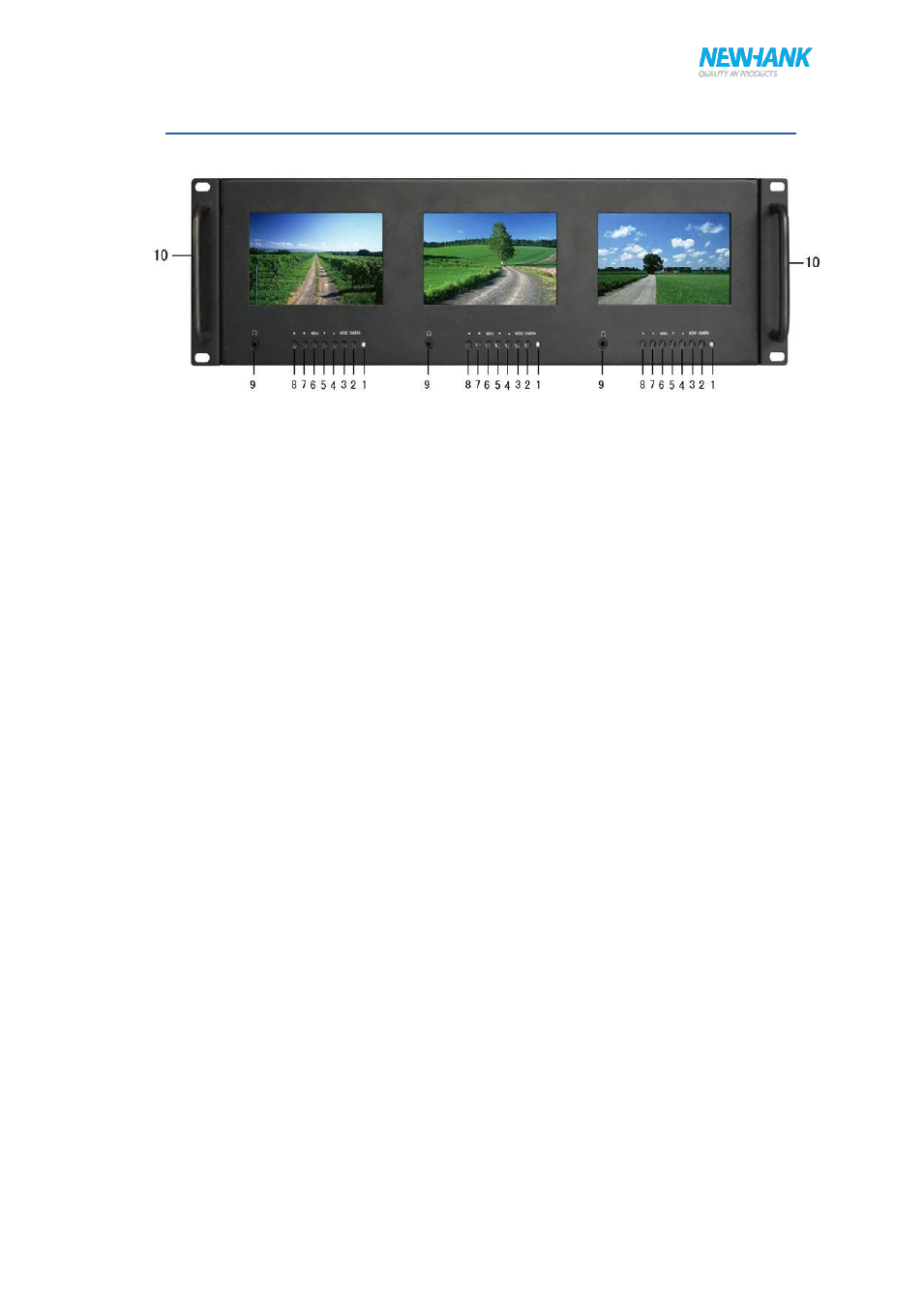

5. PANEL FUNCTION AND BUTTON OPERATING INSTRUCTION
1. POWER INDICATOR: Orange light is NO signal state, green light is in working state.
2. CAMERA: Canon 5D Mark II Camera Mode(camera mode is recording, full display on monitor, No
delay, No deform).
3. MODE: To switch VIDEO, HDMI input signal
4.
▲: No Menu State press the button directly, select peaking filter function, enter into menu item, up
to select adjustment button.
5.▼: No Menu State press the button directly, color, black & white / monochrome switch button, to
switch image color, black & white, monochrome(Red, Green, Blue), enter into menu item, down to
select adjustment button.
6. MENU: To activate or close OSD menu
7.►: Volume adjustment button, before adjustment press to confirm, then use
“►”(increase)“◄”(decrease) to adjust the volume. Under menu state to confirm function or increase
the value of the analog.
8.
◄: Screen marker display shortcut button, press it directly to select screen marker ratio (80%,
85%, 90%, 93%, 96%, off). Volume adjusting is for volume down. Under menu state to confirm
function or reduce the value of the analog.
9. : Earphone insert.
10. The front handle.
