Page 2: Tools required
11
9
MAINTENANCE
Check tire pressure regularly, 30psi.
•
Periodically check all bolts.
•
Keep cart clean to prevent rust.
•
Store inside a clean dry area.
•
SAFETY INSTRUCTION
Do not carry passengers in cart.
•
Do not tow cart on public roads.
•
Never exceed LOAD CAPACITY of 1250lbs.
•
Avoid sudden turns or maneuvers.
•
When operating on slopes, use lowest
•
ground speed and limit load to 200lbs.
Operate up and down slopes, never
•
across the face.
Large blade screwdriver.
1/2" wrench and/or socket.
Pliers.
TOOLS REQUIRED
6
8
7
5
Hitch
Pin
Hair Pin
3
4
4
1
2

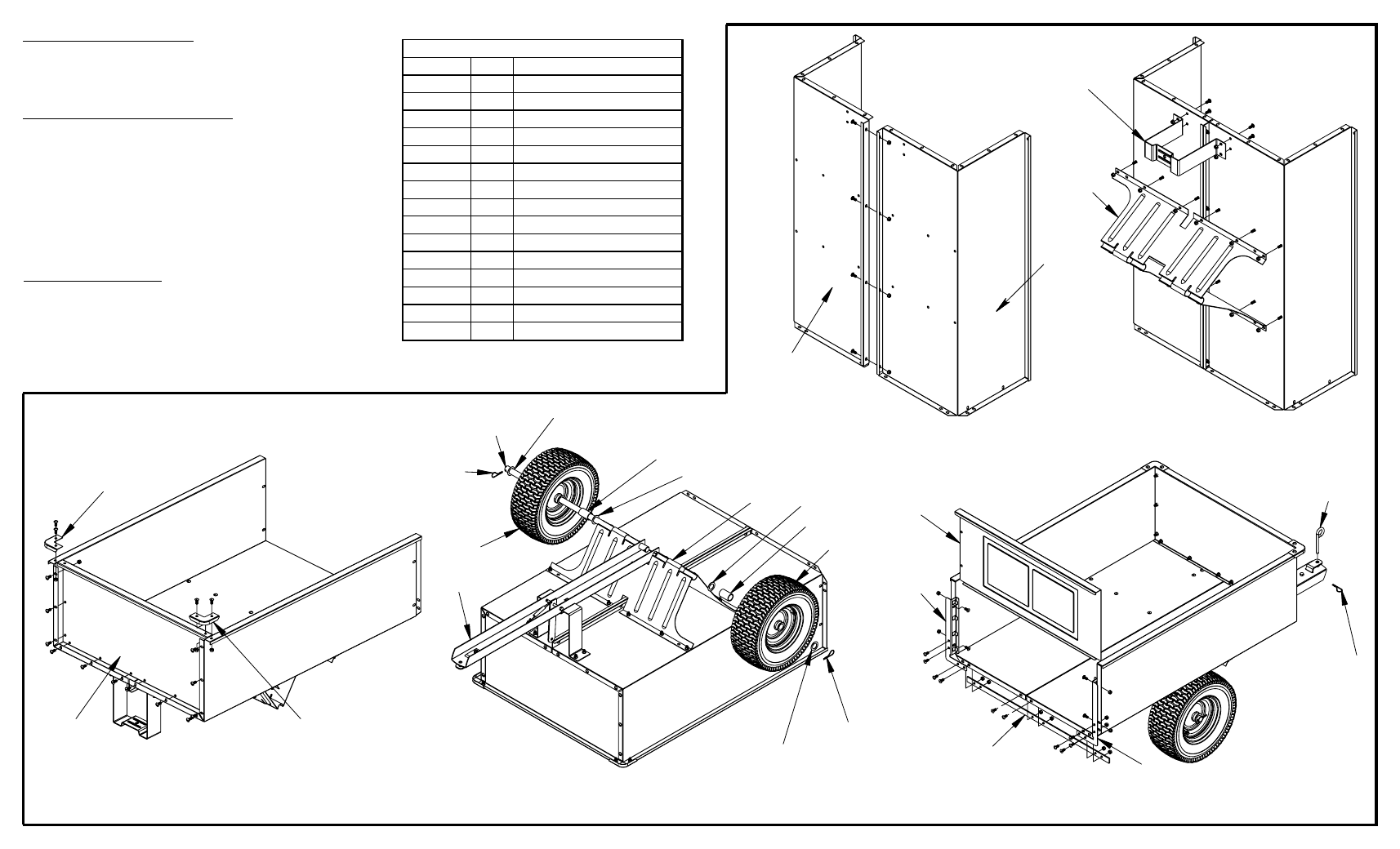

Step1. Loosely assemble body halves
as shown.
Step2. Loosely attach front support and
axle holder.
Step 5. Attach rear support bar and gate retainers.
Insert tail gate and tighten bolts.
Insert hitch pin and secure with hairpin cotter.
Step 4. Center axle through axle holder & drawbar.
Place washer, spacer, washer, wheel onto axle.
Lock in place with hair pin cotter.
Step3. Loosely attach front gate and corners.
Square assembly and tighten all bolts.
Hair Pin
17
Axle Washer
Axle Spacer
Axle Washer
11
21
Axle Washer
Axle Spacer
21
Hair Pin
12
Axle Washer
REF. NO. QTY. DESCRIPTION
1
1
RIGHT BODY HALF
2
1
LEFT BODY HALF
3
1
FRONT GATE
4
2
CORNER
5
1
REAR SUPPORT BAR
6
1
TAIL GATE
7
1
GATE RETAINER RIGHT
8
2
GATE RETAINER LEFT
9
1
FRONT SUPPORT
11
1
AXLE HOLDER
12
1
HITCH ASSEMBLY
17
1
AXLE
21
2
WHEEL
36
1
ASSEMBLY MANUAL
41
1
HARDWARE BAG
CARTON CONTENTS
