F-4000 Series Ultrasonic Flow Meter Manual 05/15 - 0707-13 / 18838
Page 15

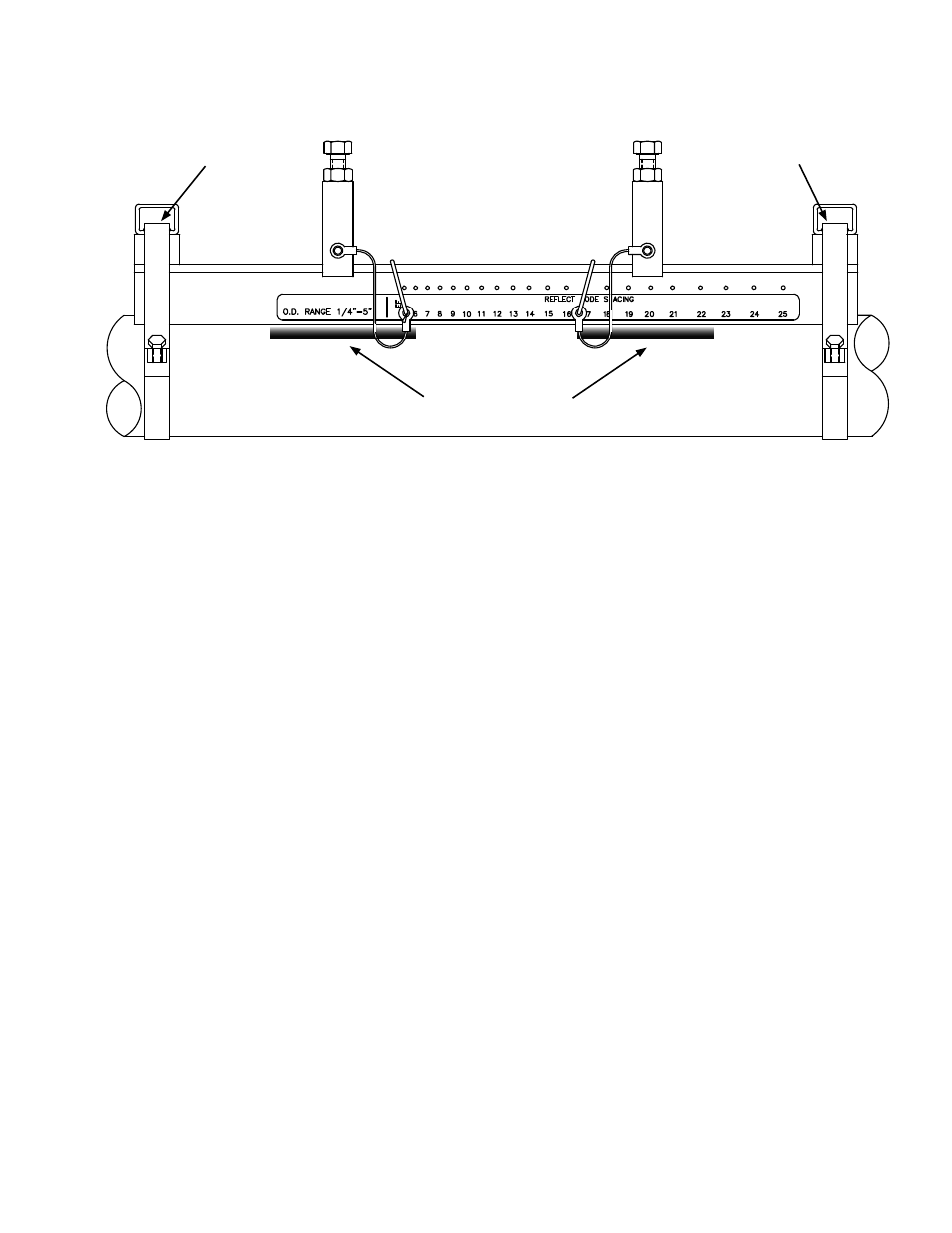

3. Holding the track mount assembly in place, wrap one of the mounting straps around
the pipe as shown in the drawing below. Tighten the tension screw enough to hold the
assembly on the pipe, but still allow rotation. Repeat for the other mounting strap.
4. Rotate the track mount assembly as necessary to its final itended mounting position
on the pipe, then tighten both tension screws just enough to prevent rotation. Do not
over tighten.
Mounting Strap
Mounting Strap
TRACK 400
Prepared Surfaces
