TDR-22 Parts Manual

14

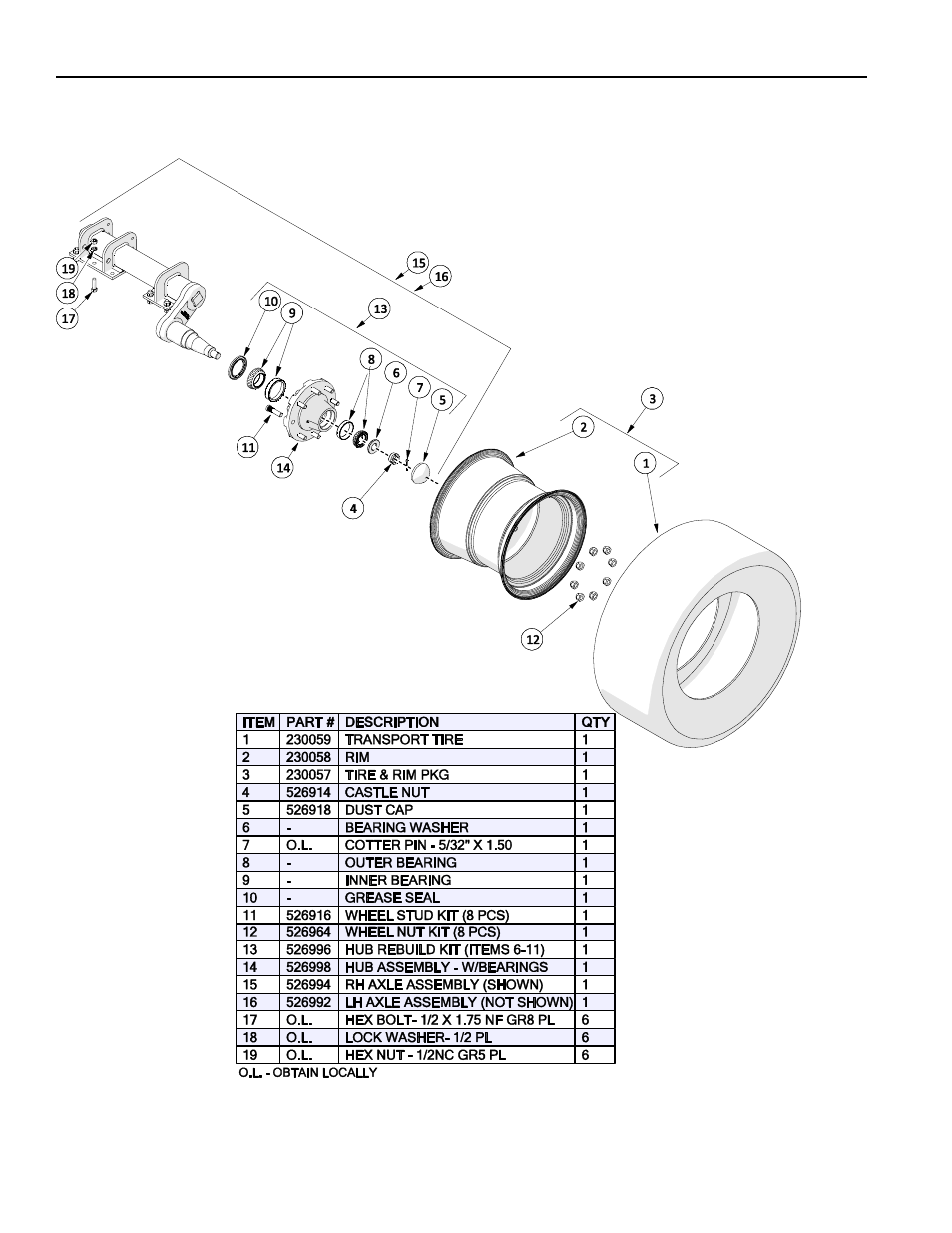

2.6 Optional Wheel Assemblies

– High Flotation (Option)*

*NOTE: TO UPGRADE TO HIGH FLOTATION TIRES (230057), NEW
AXLE ASSEMBLIES 526992 & 526994 MUST BE PURCHASED

12/2014
