8
COMPOUND BOW
USER’S GUIDE

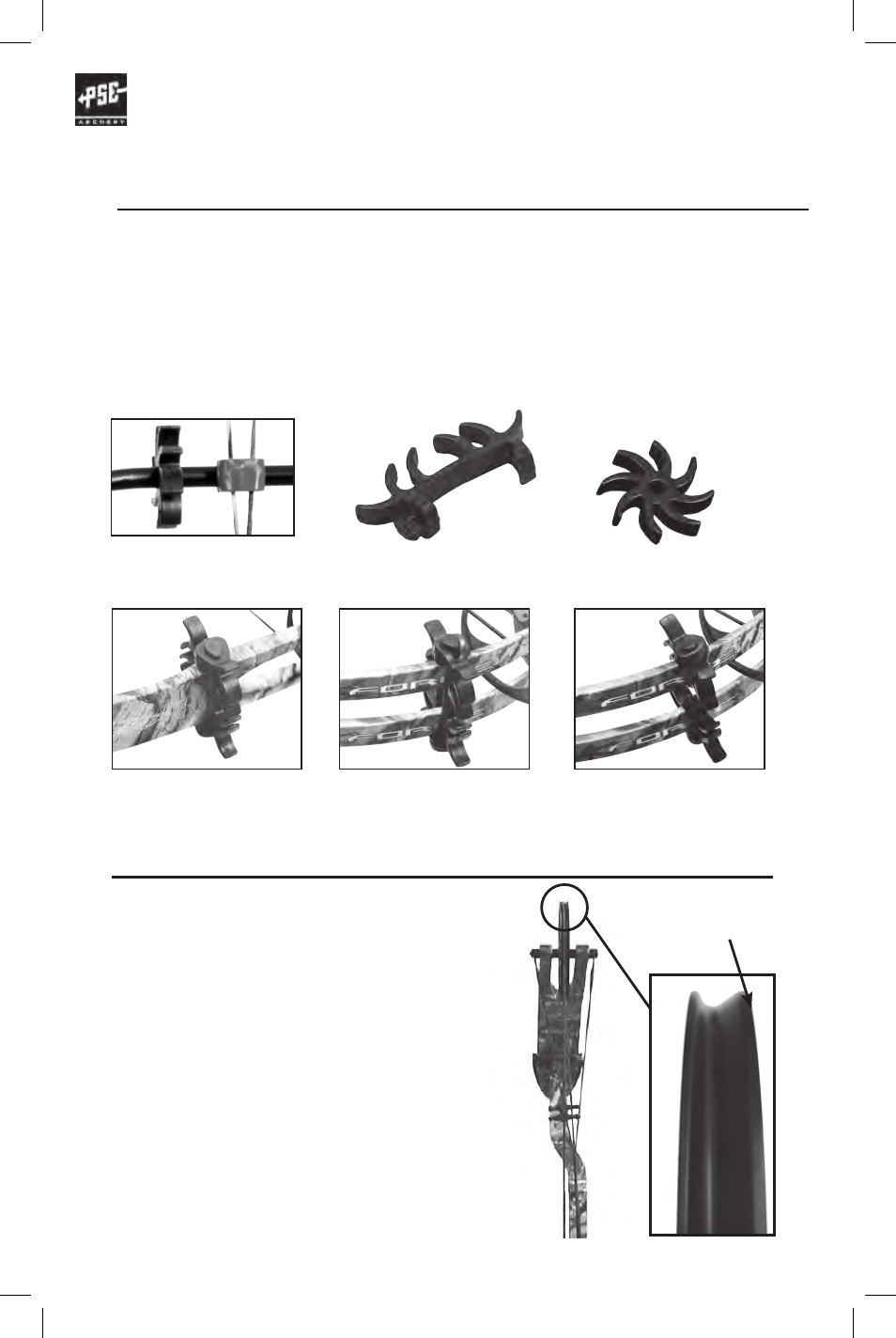

INSTALLING LIMB BANDS AND CABLE GUARD DAMPER
Limb Band on
Solid Limb
Cable Guard Damper
(Shown at full draw)
If your bow is equipped with a Cable Guard Damper it should be even with
the cable slide when the bow is at rest. More than one Cable Guard Damper
can be used.
If your solid limb bow is equipped with limb bands, the proper placement of the
bands is approximately 1/8” beyond the limb fork.
If your split limb bow is equipped with limb bands, the proper placement of the
bands is at least 1/4” away from the cam (align the band with the end of
the limb graphic). * Not standard on all models
Limb Bands across
Split Limb
PSE ASYMMETRIC IDLER
Wide edge
Limb Bands on
Split Limb (one per limb)
PSE single cam bows are equipped with a special
asymmetric idler wheel, which is assembled on the
top limb. It is essential that the idler be
oriented properly.
The wide edge of the idler always goes to the
cable guard side of the bow.
The illustration shows the proper orientation of
the idler for a right-handed bow when viewed while
holding the bow as it is shot.
Limb Band Damper Cable Guard Dmaper
