Connecting of optional condensate pump KP 6 / KP 8
L N PE
L
N PE
L(1) 1 2(N) S
L(1) 1 2(N) S
L
N
WH
BK
A
B
C
1
2
3

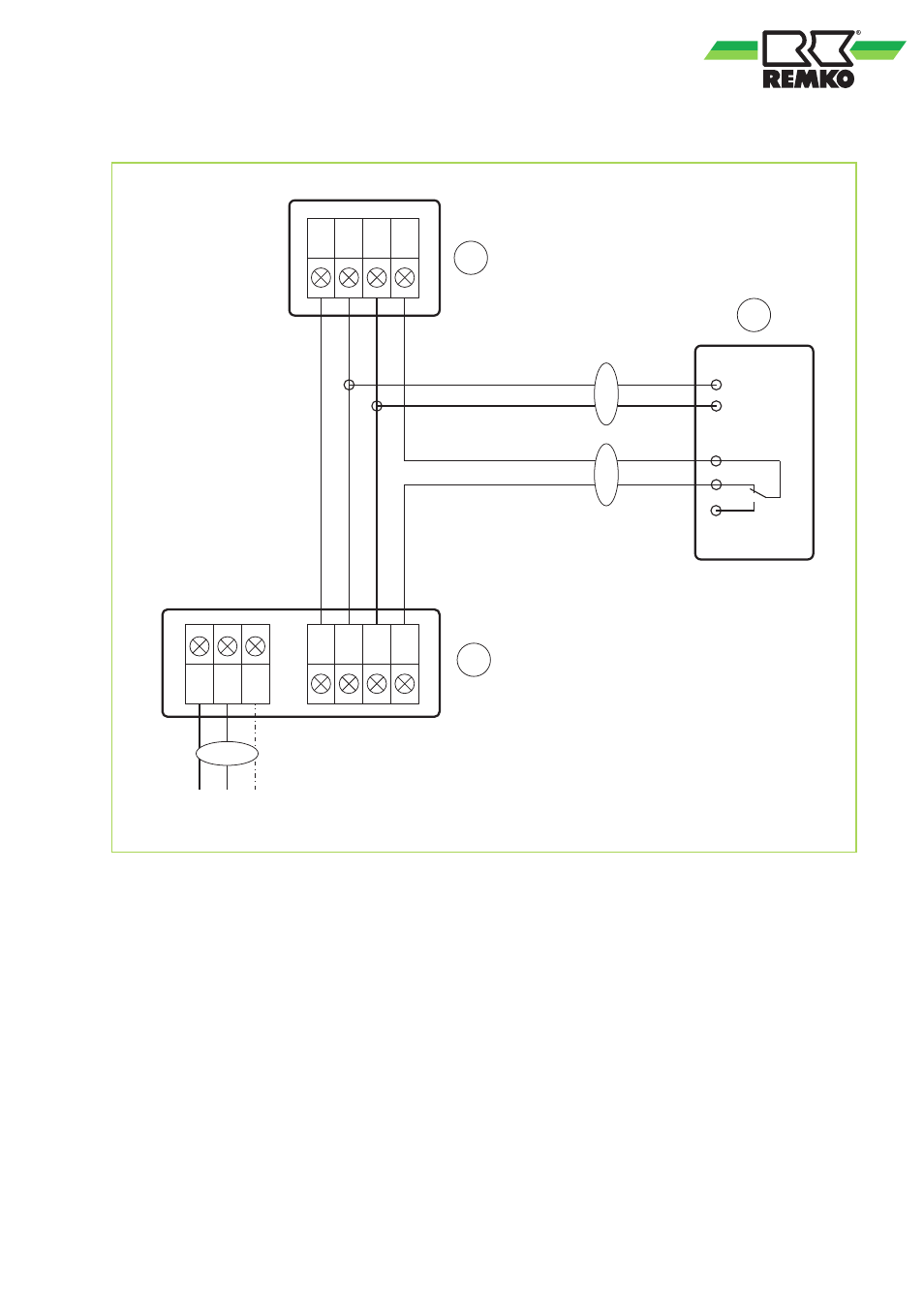

Fig. 44: Electrical wiring diagram
A:
Outdoor unit
B:
Indoor unit
C:
Condensate pump KP 6 / KP 8
1:
Power supply
2:
Supply condensate pump
3:
Fault contact condensate pump
BK:
black
WH:
white
35
