11

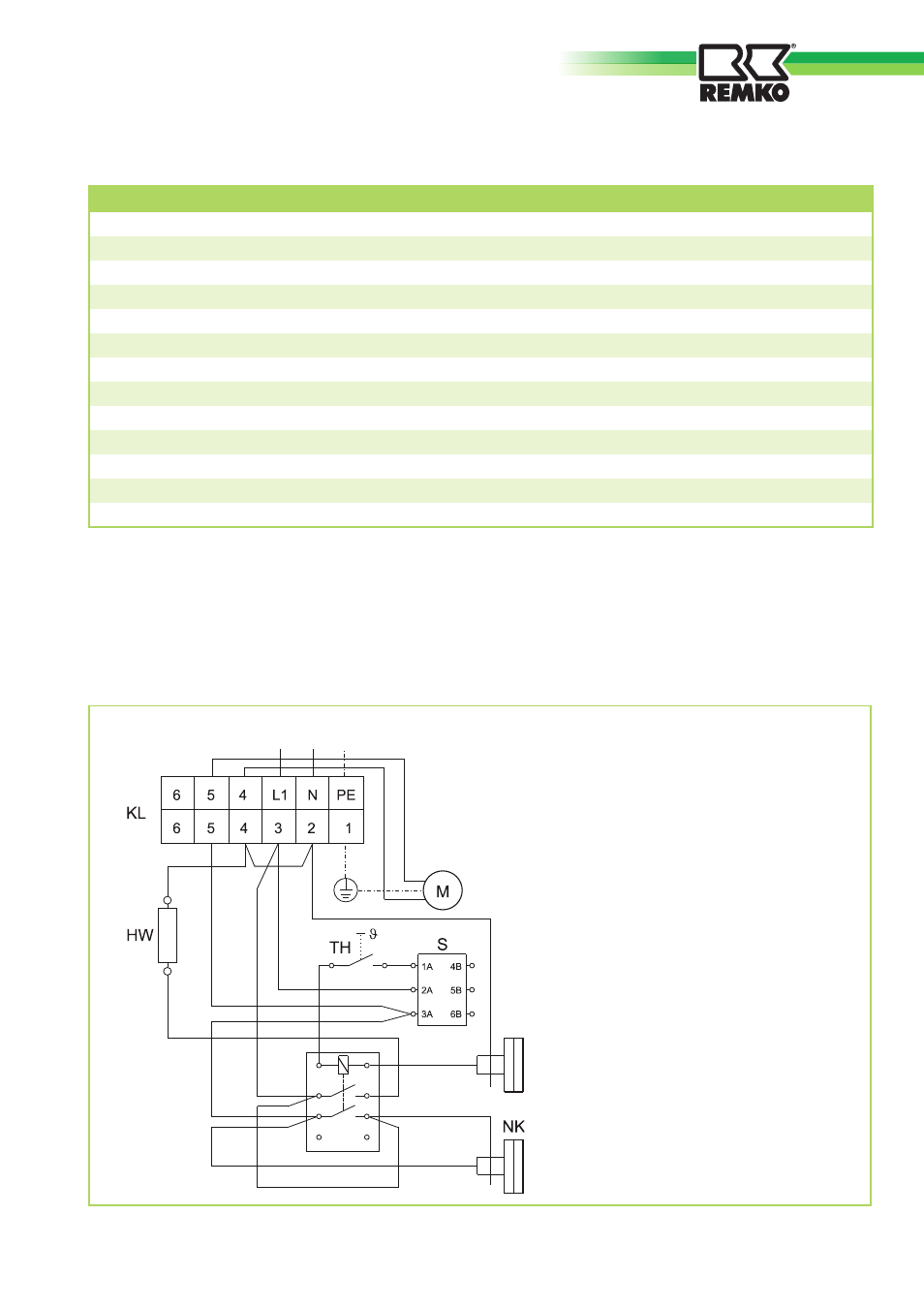

Technical data
Series ELT 2-1
Nominal heat output kW 2.2
Switchable heat output kW 2.2
Air capacity m3/h 250
Air outlet temperature 1) °C 82
Power supply V/Hz 230/1~/50
Max. nominal current A 9.5
Max. power input kW 2.25
Fuse protection (local) A (slow-acting) 16
Sound pressure level LpA 1m 2) dB (A) 46
Dimensions: Length mm 300
Width mm 200
Height mm 315
Weight kg 6.0
We reserve the right to make changes in dimensions and design in the interest of technical advances.
L1 N PE
230/1~ 50Hz
A B
1 3
4 6
7 9
HR
TB
Legend:
HR = Auxiliary relay
HW = Heating resistor
KL = Terminal strip
M = Fan motor
NK = Cooling thermostat
S
= Operating switch
TB = Temperature limiter
TH = Thermostat
Electrical wiring diagram
1) at 20°C suction temperature
2) Noise measurement DIN 45635 - 01 - KL3
