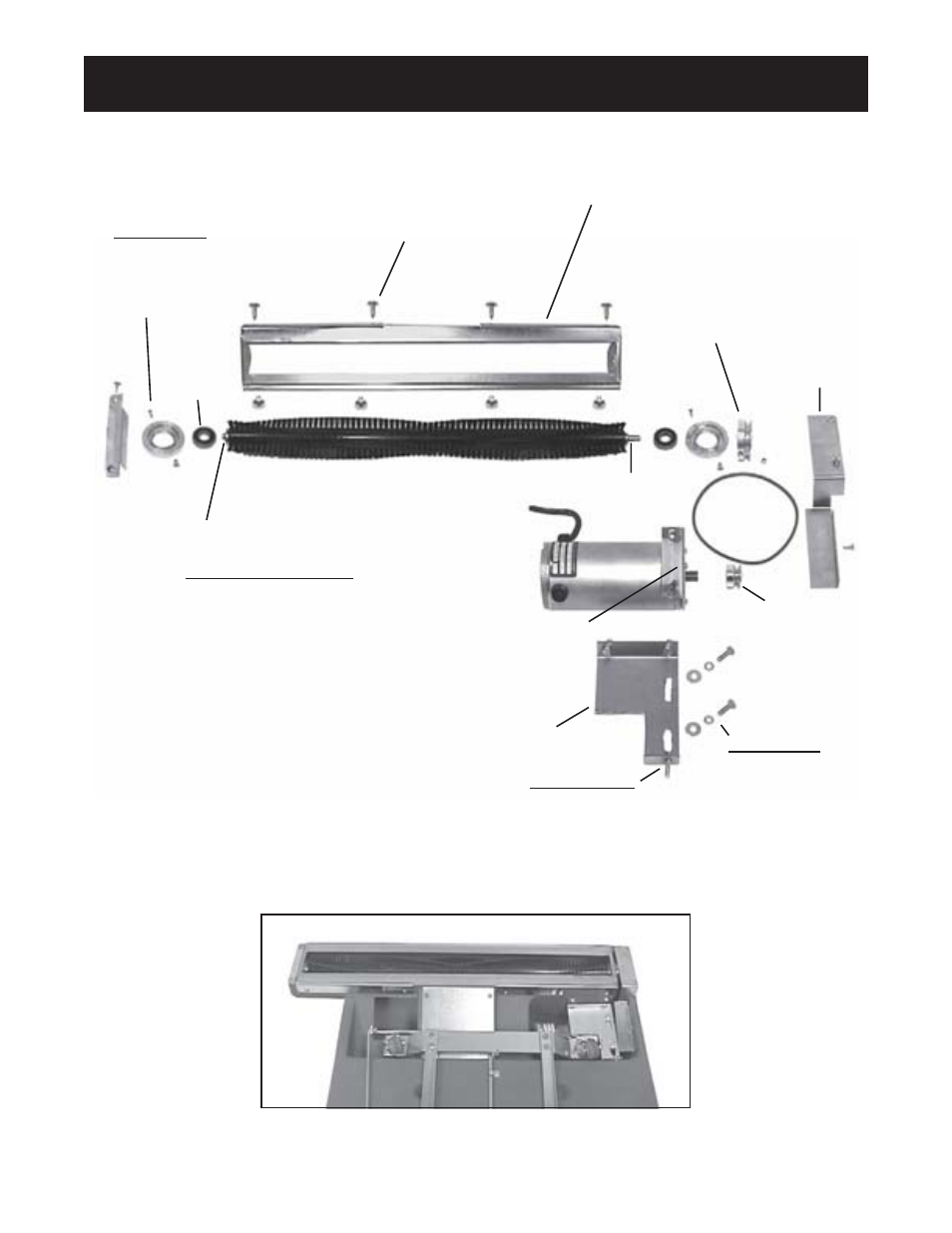

BRUSH ASSEMBLY
9
Shoe Brush
#657901
Shaft, Long
#657701
Screw, #8x1/2 THP (8)
#W136D
Two (2) Sets:
Bearing Housing
#654201
Screw, 8-32x3/8 Flat PH (2)
#962105
Bearing (2)
#902035
Brush
#440001308
Shoe End
#657902
Screw (3)
#W136D
Guard, Belt
#653602
Screw (4)
#W136D
Pulley, Brush
#656901
Set Screw (2)
#W168D
Pulley, Motor
#656902
Set Screw (2)
#W168D
Belt, Drive
#440001311
Support, Motor
#650801
Screws (4)
#962019
Brush Motor
#655201
Bracket, Brush Motor
#658503
Two (2) Sets:
Screw, 1/4-20x1/2 HH
#W169D
Washer, 1/4 Lock
#980002
Washer, 1/4 Flat
#W104D
Three (3) Sets:
Screw
#962010
Washer, 1/4 Lock
#980002
Jack Nut, 1/4-20 Zinc
#920028
Shaft, Short
#657702
Two (2) Sets,not shown:
Guard
#653601
Screw, #4x1/4 Type Z PH SMS(2)
#962144
Brush Assembly
#650902
Includes Brush
with Shafts
for Service
Note: Brush Motor Internal Rectifier
#911066
