Scotsman NSE650 - Manual (Page 27)

ICE SWEEP
AUGER
EVAPORATOR
BREAKER
BEARING
WATER
SEAL
RETAINING
RING
DRIP PAN
GASKET
WATER SHED
GEARMOTOR
ASSEMBLY
SEAL(S)
O-RING
CAP SCREW
O-RING
WATER
SHED
LIP SEAL
BREAKER
COVER
O-RING
AUGER STUD

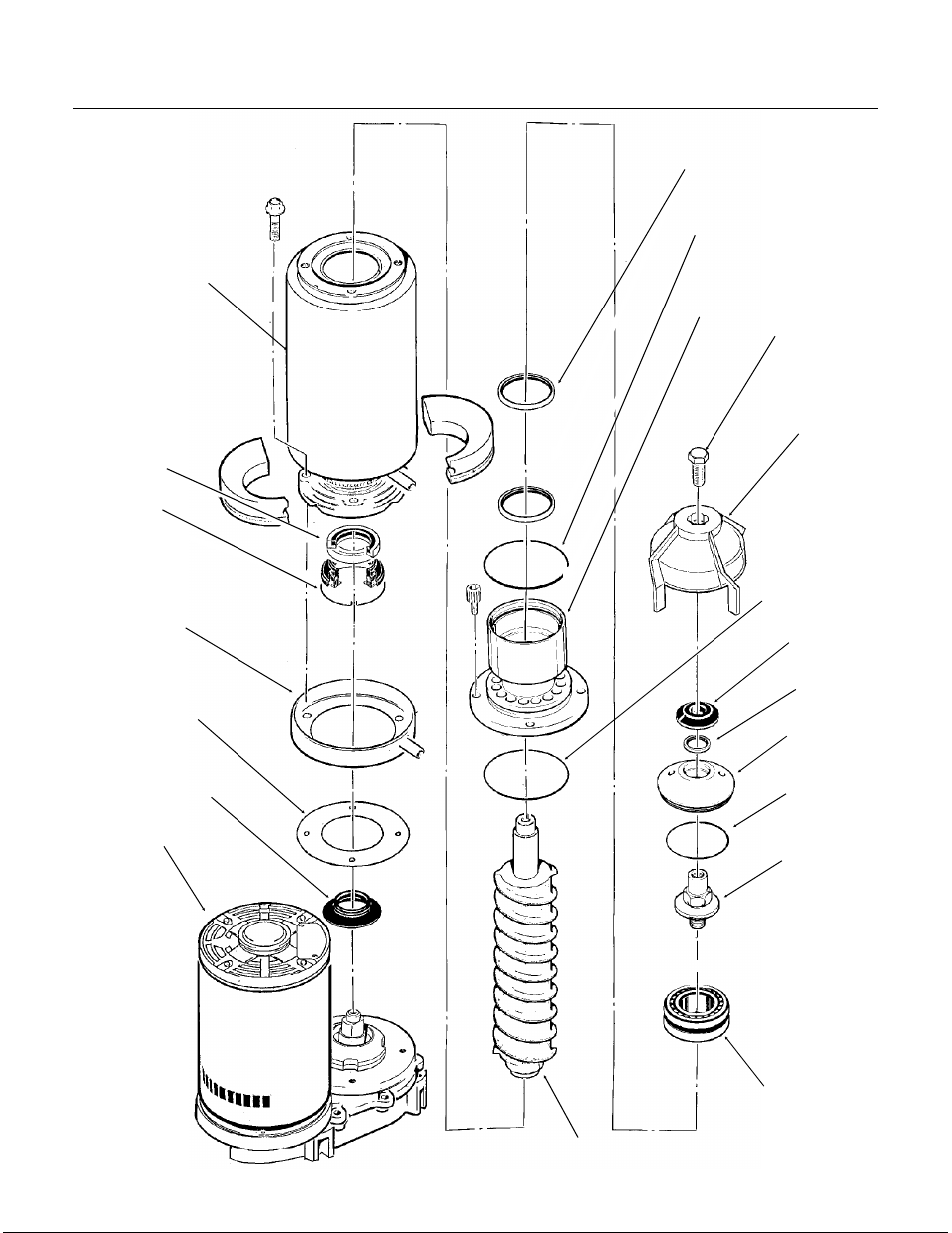

REMOVAL AND REPLACEMENT: Evaporator
NSE650
August 1993
Page 27
