Introduction
The DVX100 extends the distance between any computer
supporting DVI-D and monitors or projectors up to 50ft. The system
features daisy chain capabilities that can extend the limit up to 100ft.
Features
„ Supports MAC and PC DVI-D
„ Resolution up to 1920 x 1080
„
No loss of pixel
„ Maintains highest DVI single link video resolution
„
DVI output regenerates TMDS digital video
„ Output can drive long cable up to 50 feet
„ Green led for power
„ Yellow led signal indicator
„ External power supply
„ Provides noiseless operating environment at the remote station
„ Places CPU outside of harsh environment
„ Saves space on your desktop
Applications
„ Presentations Presentations Presentations Presentations Presentations DVX100 enhances any presentation from
commercial products to corporate financial data. It can be used in
show rooms, board rooms, trade shows and window displays.
„
Data Broadcasting Data Broadcasting Data Broadcasting Data Broadcasting Data Broadcasting Data such as news, stock prices, sports
results, and flight information can be broadcast in real time to
various monitors and/or speakers.
„
Learning and Training Learning and Training Learning and Training Learning and Training Learning and Training DVX100 can be used in educational
presentations to multiple locations, in schools and in other training
facilities.

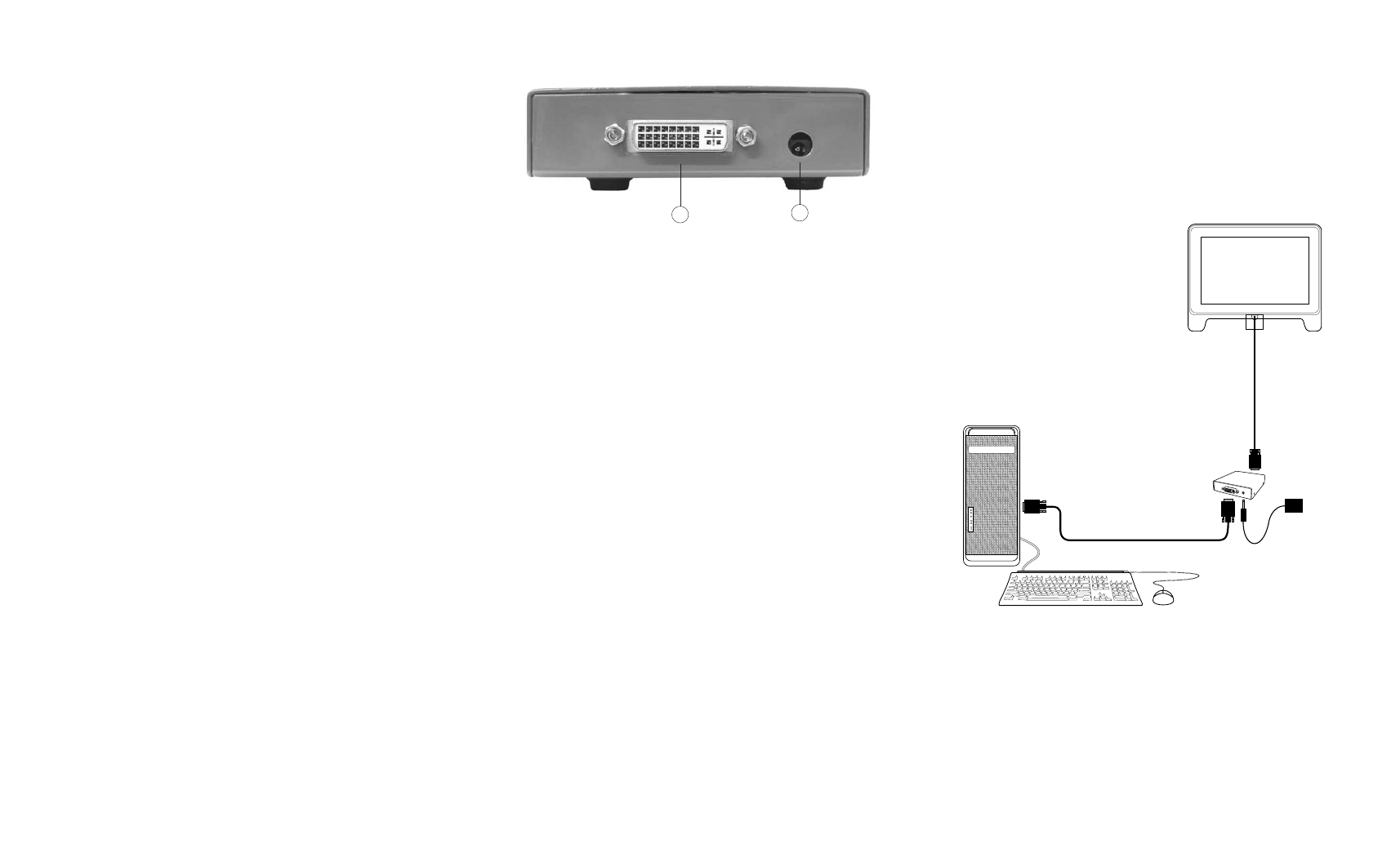

Rear View
1. “Video In” Port
2. Input Power Jack
Installation
1. Turn off the PC and monitors.
2. Connect the DVI male extension cable between the PC and the
“video in” port of splitter.
3. Connect the DVI male/female extension cables between the
monitors and the “DVI out” ports of splitter.
4. Connect the power cord and turn on the splitter.
5. Turn on the PC and monitors.
Operation for Cascade:
1. Attach extender in order to extend longer cables.
2. Connect the DVI male/female extension cable between the
former splitter of the “DVI out 1” port and the latter splitter of
the “video in” port.
Note:
Even though you are allowed to cascade the DVX-100 with varied
ports, the image might become unstable if cascade too many tiers
of DVX-100.
Installation Diagram
Apple Display
G5
or
compatible
DVX-100
5VDC
Power
Keyboard Mouse
DVI Male/Male
DVI-D
Monitor
1 2
